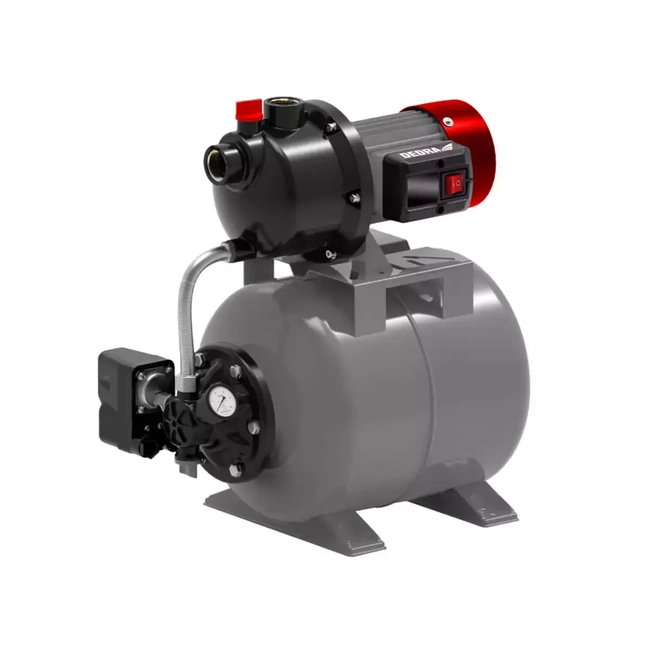

HYDROPHORE, WATER PRESSURE STABILIZER GARDEN DEDRA DED8875 800W

A hydrophore is a very important part of an effective and efficient water system, powered by a domestic water pump.

What is a hydrophore? A hydrophore is nothing more than a pressure vessel that, together with other components of a plumbing system, i.e. a pump, pressure switch and valves, maintains the appropriate pressure in the water pipes. The use of a hydrophore prevents the pump from turning on too often every time the tap is turned on. If when you turn on the tap you see a pulsating flow of water ie. that the plumbing system does not have constant water pressure. What you see is the water pump switching on and off. To avoid such a situation, thoughtful plumbing systems use a hydrophore, which has a pressurized tank with compressed air, and the water "balloon" placed in it provides adequate water delivery pressure.

The water pump starts only when the water pressure in the system decreases, which significantly increases its service life. In addition, you enjoy constant water pressure and the silence of a pump that doesn't work so often.

DEDRA DED8875 hydrophore is powered by an 800W pump for 230V voltage, that is, from a common outlet.

The hydrophore has an integrated water pump that has a capacity of 3700l/h, which ensures a constant, even pressure of the water fed. The body of the hydrophore is a steel tank with a capacity of 19l. The pressure switch is responsible for maintaining the water pressure in the system (1.5-3 bar) activating the water pump when needed. Viewing the pressure through the built-in pressure gauge. Hydrophore with water pump is supplied through a 1.2m cable.

Feet that form the base of the hydrophore with holes that allow the device to be permanently fixed to the surface.

Features of the DED8875 clean water hydrophore:

• Hydrophore with water pump for construction of plumbing system
• High-end garden pump
• Built-in pressure switch and pressure gauge
• Durable and strong construction
• Steel tank 19l
• Hermetic housing and switch
• IPX4 protection class ensures safety of use
• Excellent performance parameters - as much as 40m of water lifting

Technical data of the hydrophore for clean water DED8875:

• Power supply: 230V
• Construction material: pump - aluminum + plastic, hydrophore body: steel
• Power of the device: 800W
• Power cord length: 1,2m
• Flow rate: 3700l/h
• Maximum suction depth: 8m
• Maximum lift height: 40m
• Operating range of the pressure switch: 1.5-3Bar
• Connection diameter 1"
• IP protection: IPX4

Completion:

• Hydrofor
