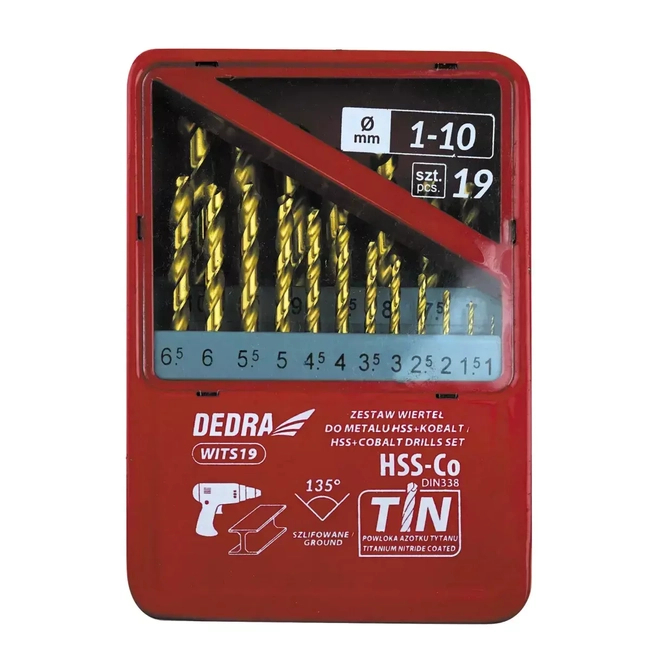

DEDRA WITS19 HSS+COBALT+TIN METAL DRILL BIT SET, 135°, 19PCS

Name: DEDRA WITS19 HSS+COBALT+TIN METAL DRILL BIT SET, 135°, 19PCS
Brand: DEDRA
Price: 49.79 EUR
Availability: InStock

Add to shopping list

Size

universal

List price49,79 €

49,79 €

incl. VAT / pcs.

Express checkout 1-Click(without registration)

Product Available

Free and fast delivery from 115,02 €

14 days to return

Find out in which store you can check the product and buy it right away

DEDRA WITS19 HSS+COBALT+TIN METAL DRILL BIT SET, 135°, 19PCS

universal

Safe shopping

Average 4.7 on Opineo see

Free returns

Authorized distributor internet, see

Guarantee of reliability and timeliness

Set of 19pcs titanium nitride coated cobalt metal drill bits with cylindrical shank. Due to the 5% cobalt content, the drill bit's resistance to thermal damage during drilling has been increased. Thanks to the ground spiral, which ensures a low coefficient of friction, and the excavated material is efficiently discharged outside the hole. This reduces the danger of chips sticking to the drill bit and increases drilling efficiency. Thanks to this design, the resulting vibrations are reduced, which translates into the durability of the drill bit. Apex angle of 135° ensures perfect centering. Drill provides 40-60% faster drilling compared to standard HSS drills. Suitable for machining: steel, cast iron, aluminum, copper, brass. Manufactured in accordance with DIN338 standard. All packed in a handy, convenient box.

Technical Data:

Drill type: cobalt metal drill bit with titanium nitride coating
Drill angle: 135 degrees

Overall length [mm]	Working length [mm]	Diameter [mm]
34	12	1
40	18	1,5
49	24	2
57	30	2,5
61	33	3
70	39	3,5
75	43	4
80	47	4,5
86	52	5
93	57	5,5
93	57	6
101	63	6,5
109	69	7
109	69	7,5
117	75	8
117	75	8,5
125	81	9
125	81	9,5
133	87	10

Completion:

Number of drill bits in the package: 19 pcs

Technical specifications:

EAN: 5902628940315
Brand: DEDRA
Symbol: WITS19
Manufacturer code: 5902628940315
Drill length [mm]: 34, 40, 49, 57, 61, 70, 75, 80, 86, 93, 101, 109, 117, 125, 133
Drill tip angle [°]: 135
Number included: 19
Material: HSS high speed steel, 5% cobalt+TiN
Destination: Metal
Type: Set -TiN cobalt metal drill bit
Series: DEDRA
Drill diameter [mm]: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
Handle type: Waltz
Drill type: Metal drill

Brand:

DEDRA

Symbol:

WITS19

Producer code:

5902628940315

Warranty

DEDRA Warranty for 2 Years
