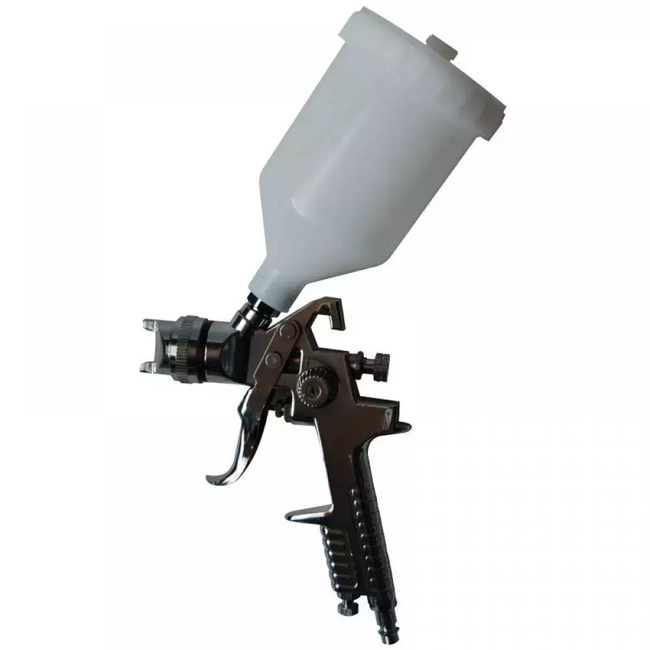

HVLP PAINT GUN PANSAM A533171 NOZZLE 1.4MM 600ML 2.0-3.5 BAR
- Nozzle diameter: 1.4mmOptional nozzles: 1.4-2.5mmConnection diameter: 1/4 "Recommended operating pressure: 2-3.5barMaximum allowable pressure: 8.3barAir demand: 118-201 l/minPainting width:
PANSAM A533171 HVLP spray gun with top tank is designed for painting with solvent-based and water-based paints such as latex paints, acrylic paints, stains or metal primers.
The gun is equipped with a top tank with a capacity of 500ml. In the back of the gun there is a knob with which we can adjust the amount of paint fed to the gun. In addition, we can adjust the pressure that is applied to the gun. The gun is also equipped with a knob for adjusting the shape of the spray that we get when painting.
This is done by the pattern setting knob located on the side of the gun.
Technical specifications of the HVLP paint gun PANSAM A533171:
- Nozzle diameter: 1.4mm
- Optional nozzles: 1.4-2.5mm
- Connection diameter: 1/4"
- Recommended operating pressure: 2-3.5 bar
- Maximum allowable pressure: 8.3bar
- Air demand: 118-201 l/min
- Painting width: 180-250mm
- Weight: 0.70 kg
Completion:
- Gun
- Paint tank (1 pc)
- Universal wrench (1 pc)
- Head unscrewing sleeve (1 pc)
- Brush (1 pc)
- Additional filter (1 pc)
Technical specifications:
EAN: 5902628003133
Brand: PANSAM
Symbol: A533171
Manufacturer code: 5902628003133
Warranty: Warranty 2 years
Maximum working pressure [bar]: 8,3
Tank capacity [ml]: 600
Airflow [l/min]: 118-201
Type: Air guns
Nozzle size [mm]: 1,4
Series: PANSAM
Painting width [mm]: 180-250
Recommended operating pressure [bar]: 2-3,5
Brand: PANSAM
Symbol: A533171
Manufacturer code: 5902628003133
Warranty: Warranty 2 years
Maximum working pressure [bar]: 8,3
Tank capacity [ml]: 600
Airflow [l/min]: 118-201
Type: Air guns
Nozzle size [mm]: 1,4
Series: PANSAM
Painting width [mm]: 180-250
Recommended operating pressure [bar]: 2-3,5
