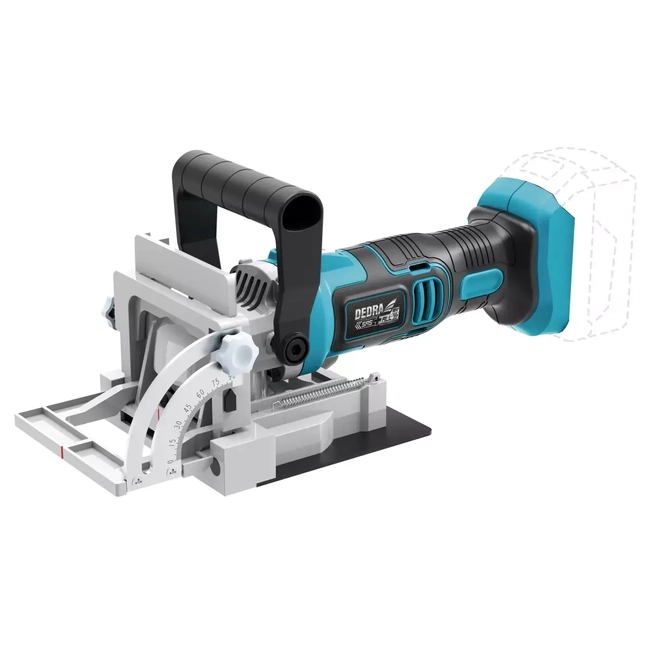

CORDLESS LAMELLA MACHINE 18V DEDRA SAS+ALL DED6916

DED6916 cordless lamellar machine is a device used to make precise joints in wood.

The blade mounted in the lamella machine allows you to make grooves or grooves on the edges of boards or panels of wood and wood-based materials, into which we insert the so-called lamellas - small wooden elements used to stabilize the structure. Thanks to the lamella machine, you can prepare for gluing wooden surfaces joining each other at any angle, in the range of 0°-90°. It is also possible to adjust the cutting height from 5-35mm and adjust the milling depth in four positions, up to a maximum of 18mm.

Battery-powered lambing machine DED6916, gives high mobility of work with the device and increases the comfort of use. The lack of a power cord makes it easy to maneuver and allows you to work even in situations where there is no access to the electrical grid.

The lamella machine supports discs with dimensions of 100x22mm, and the recommended one for it is carbide disc DED69161.

Features of the DED6916 cordless lamella machine:

• Battery-powered - high mobility

• Durable, damage-resistant housing
• Rubberized handle - increased grip stability
• Additional auxiliary handle - more comfortable to use
• Small, compact size
• Ability to cut at different angles
• Adjustable cutting height and milling depth

Technical data of the cordless lamellar DED6916:

• Voltage: 18V
• RPM: 8500RPM
• Disc dimensions: 100x22x3.8mm
• Mounting: M10
• Milling depth adjustment: max. 18mm (4 positions)

• Cutting height adjustment: 5-35mm

• Angle cutting: 0-90°

Completion:

• Lamellar machine
• Dust bag (1 pc)
• TCT 6 tooth disc (1 pc)
• Key for changing the disc (1 pc)

Technical specifications:
