- Rated power: 300WPeak power: 500WBattery capacity: 296Wh/20Ah/14.8VSinusoidal output voltage waveformLED lighting [4W LED Continuous Light/Flashing/SOS]Weight: 2.85kg

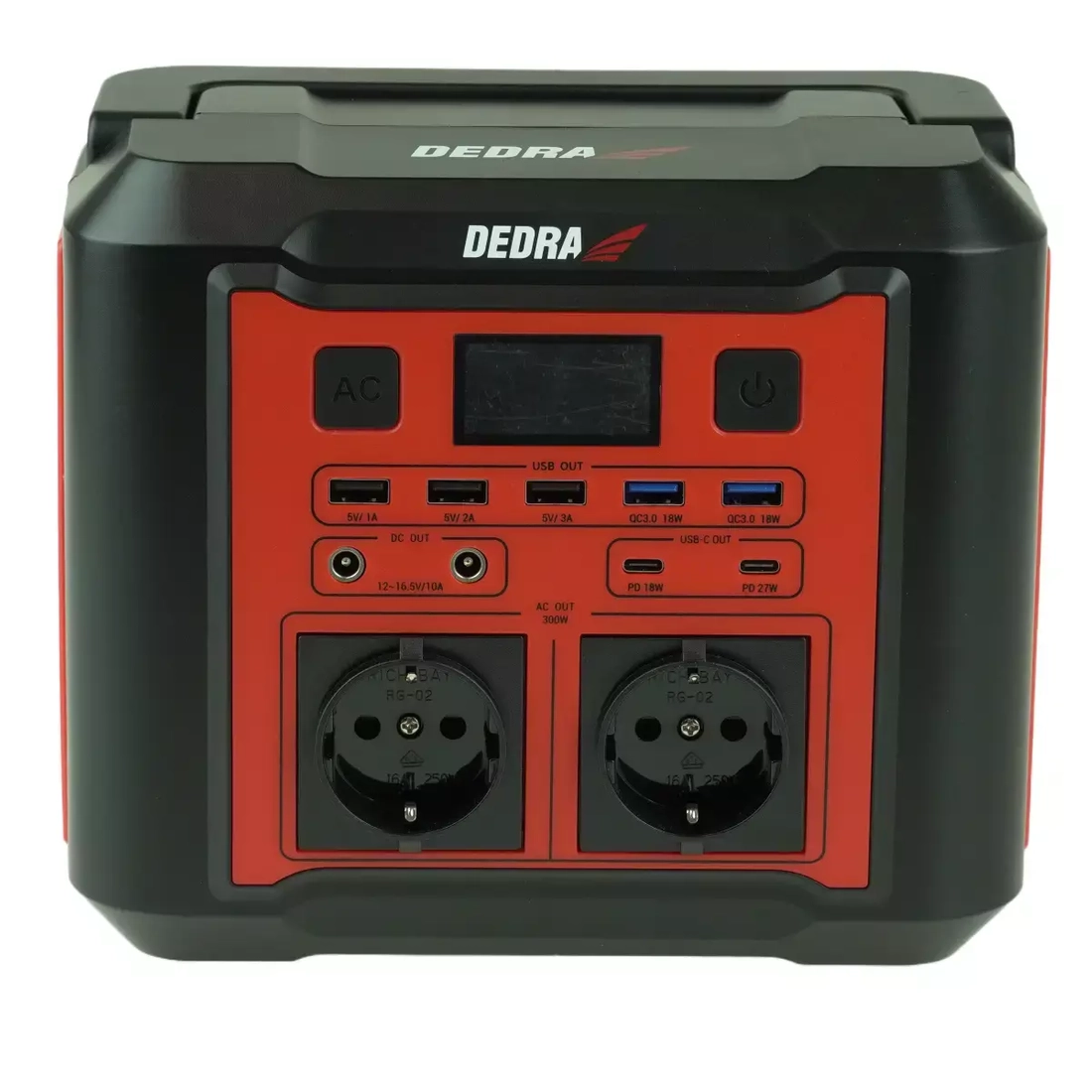

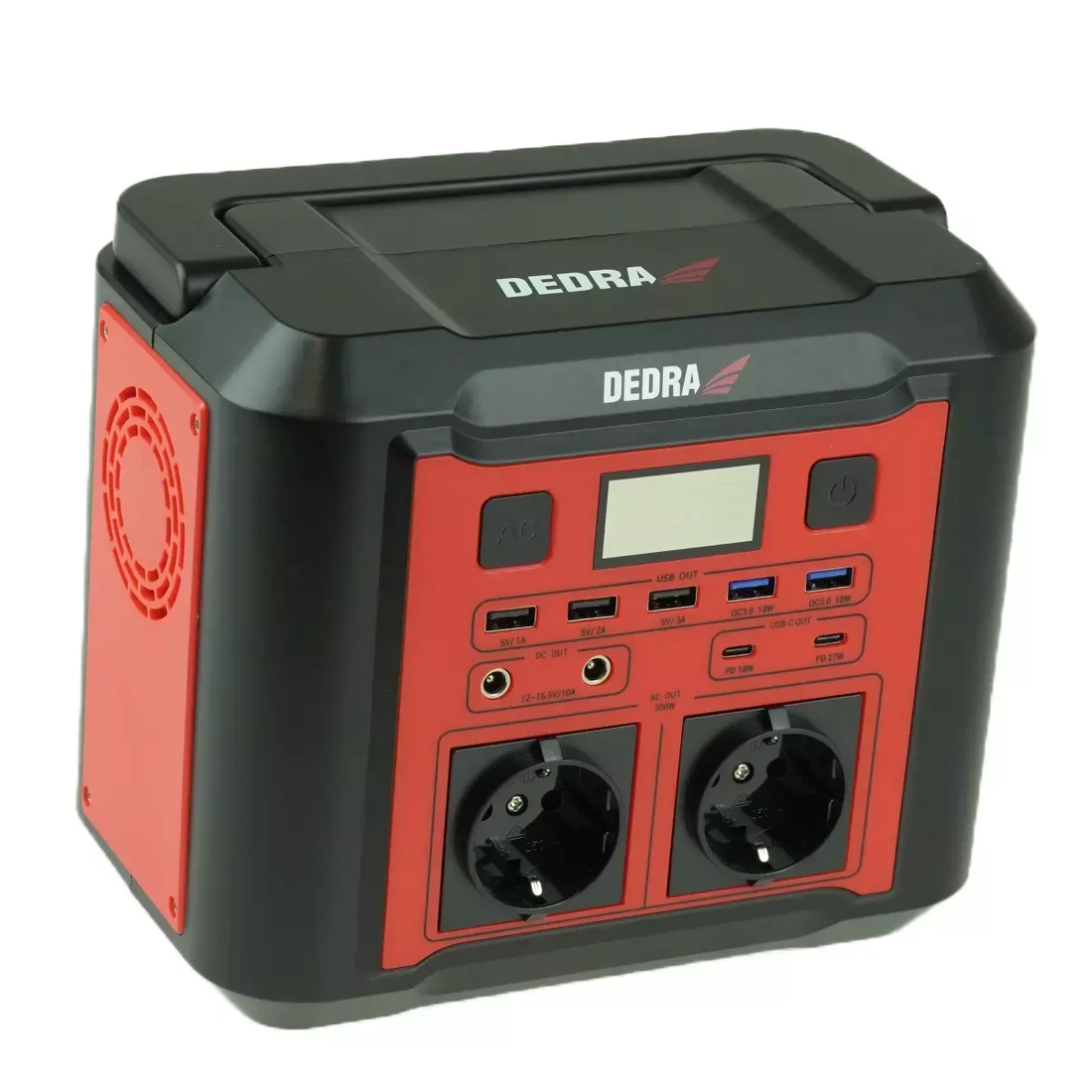

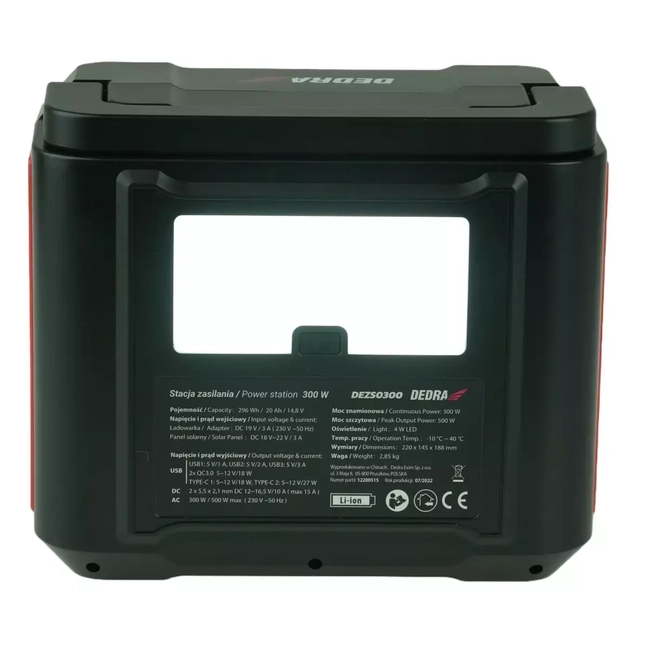

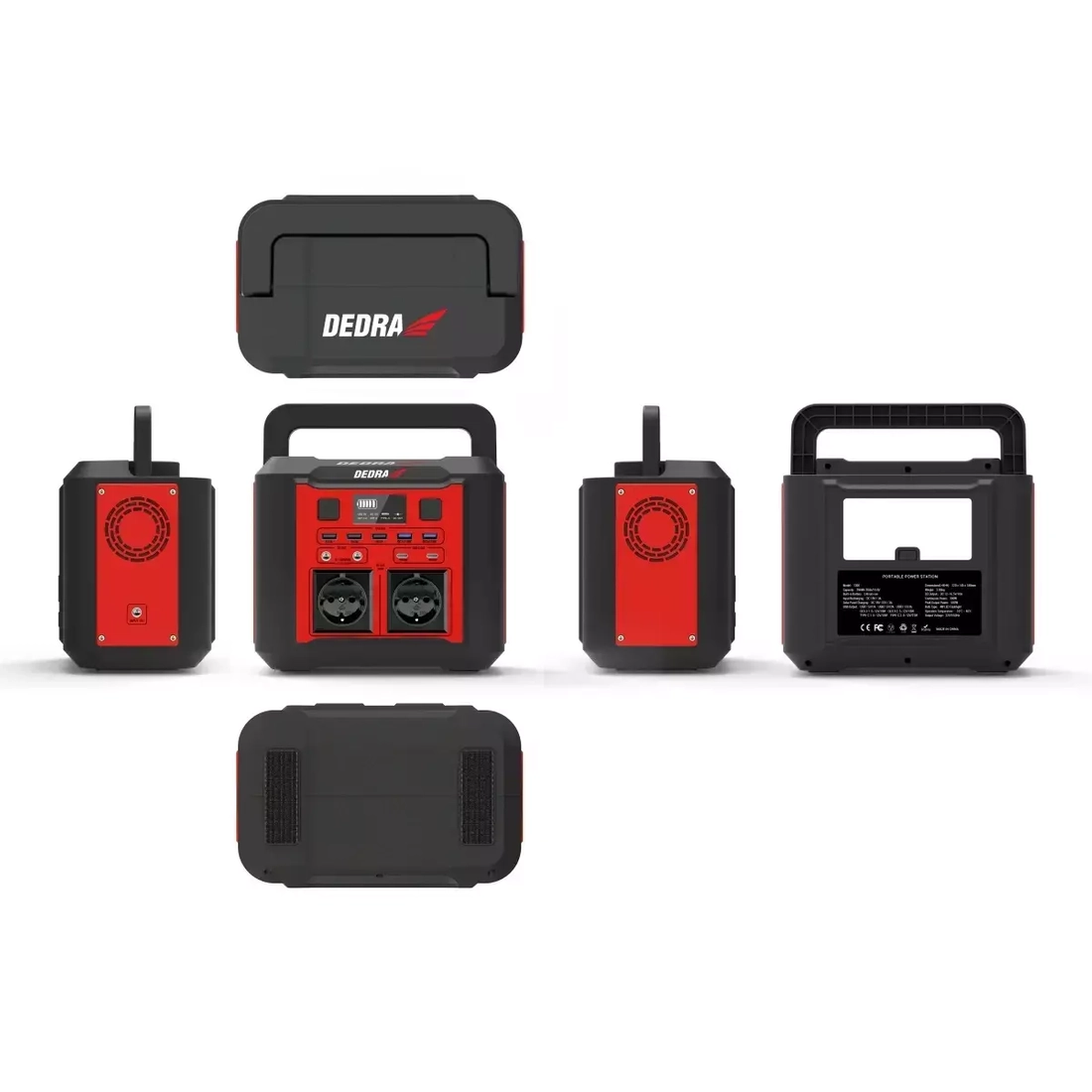

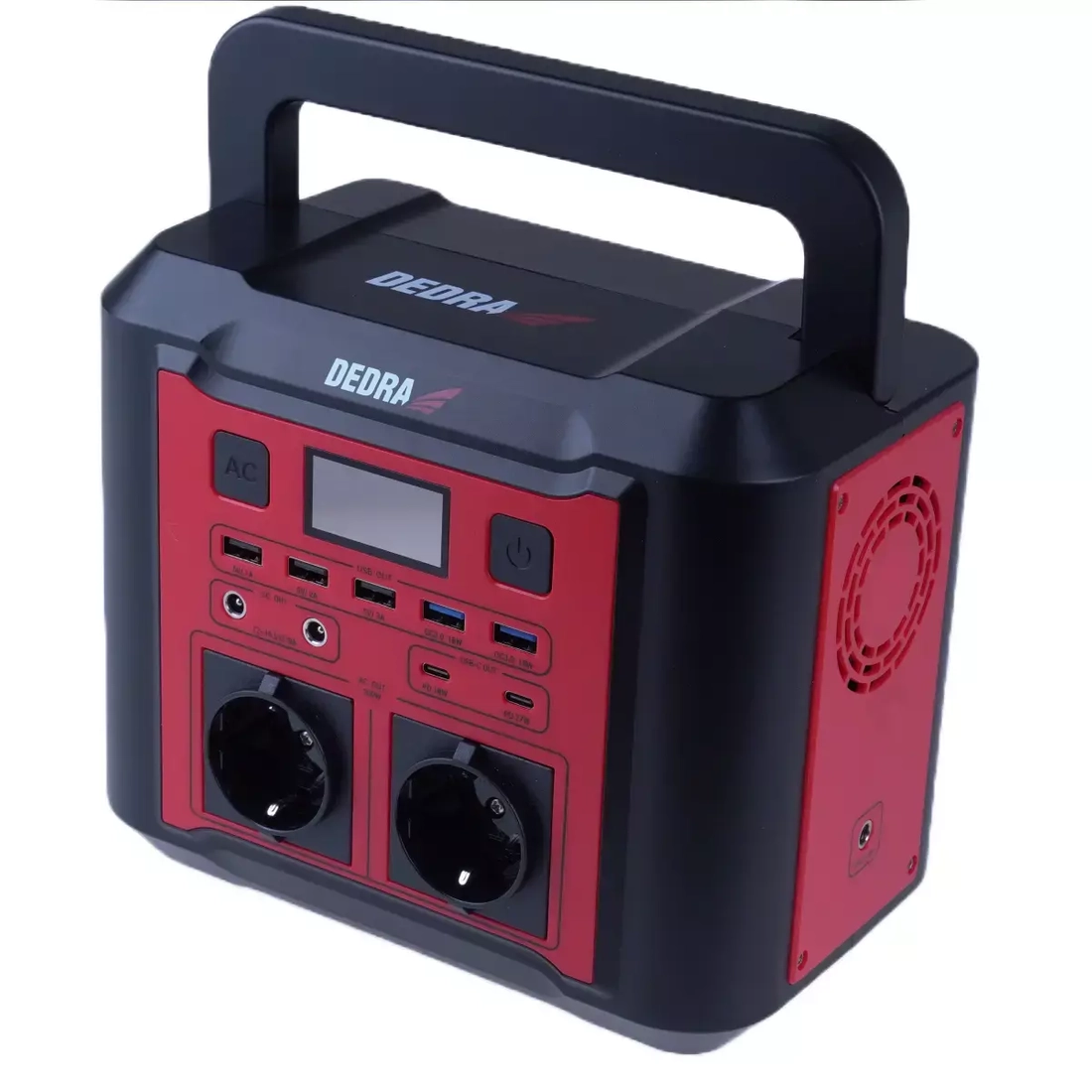

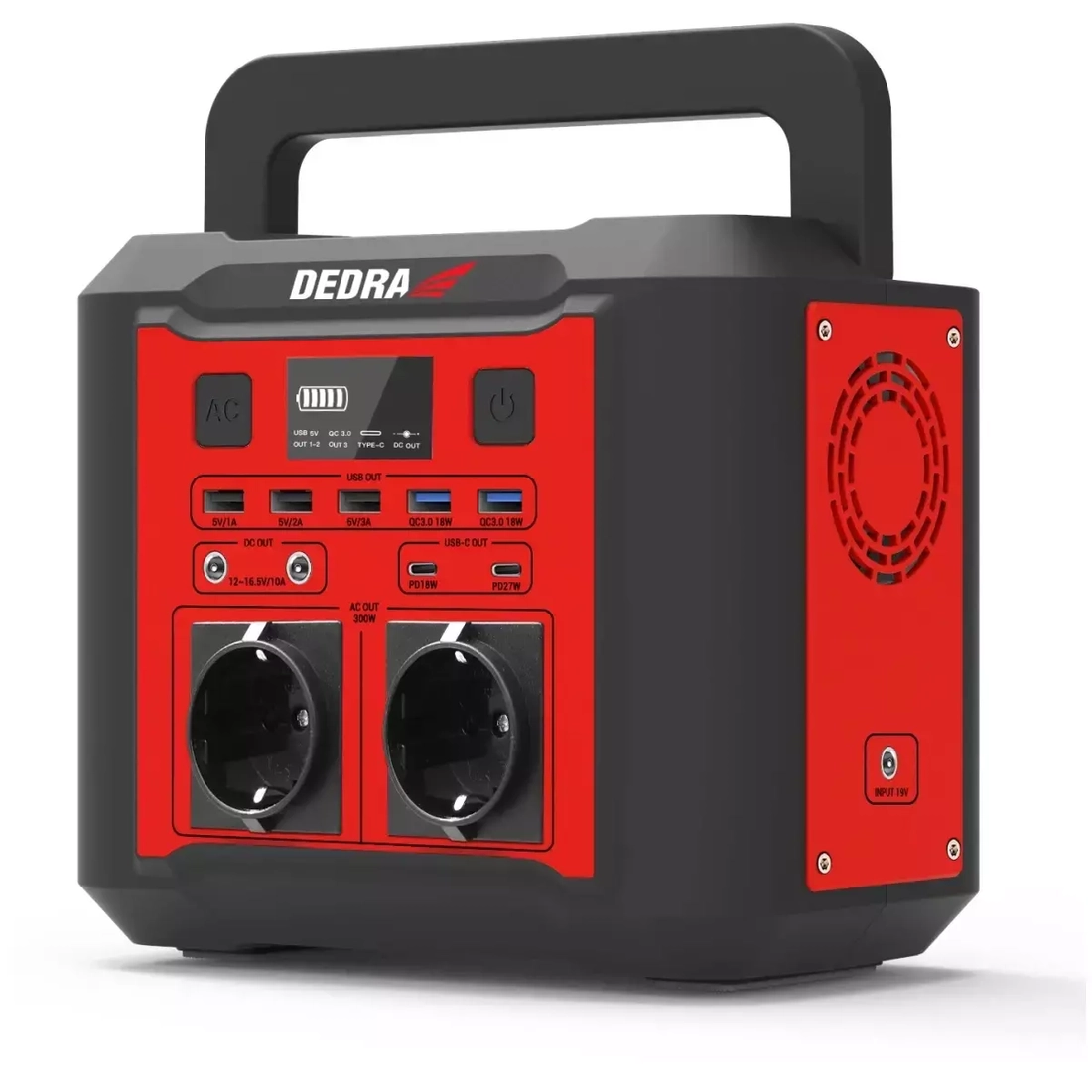

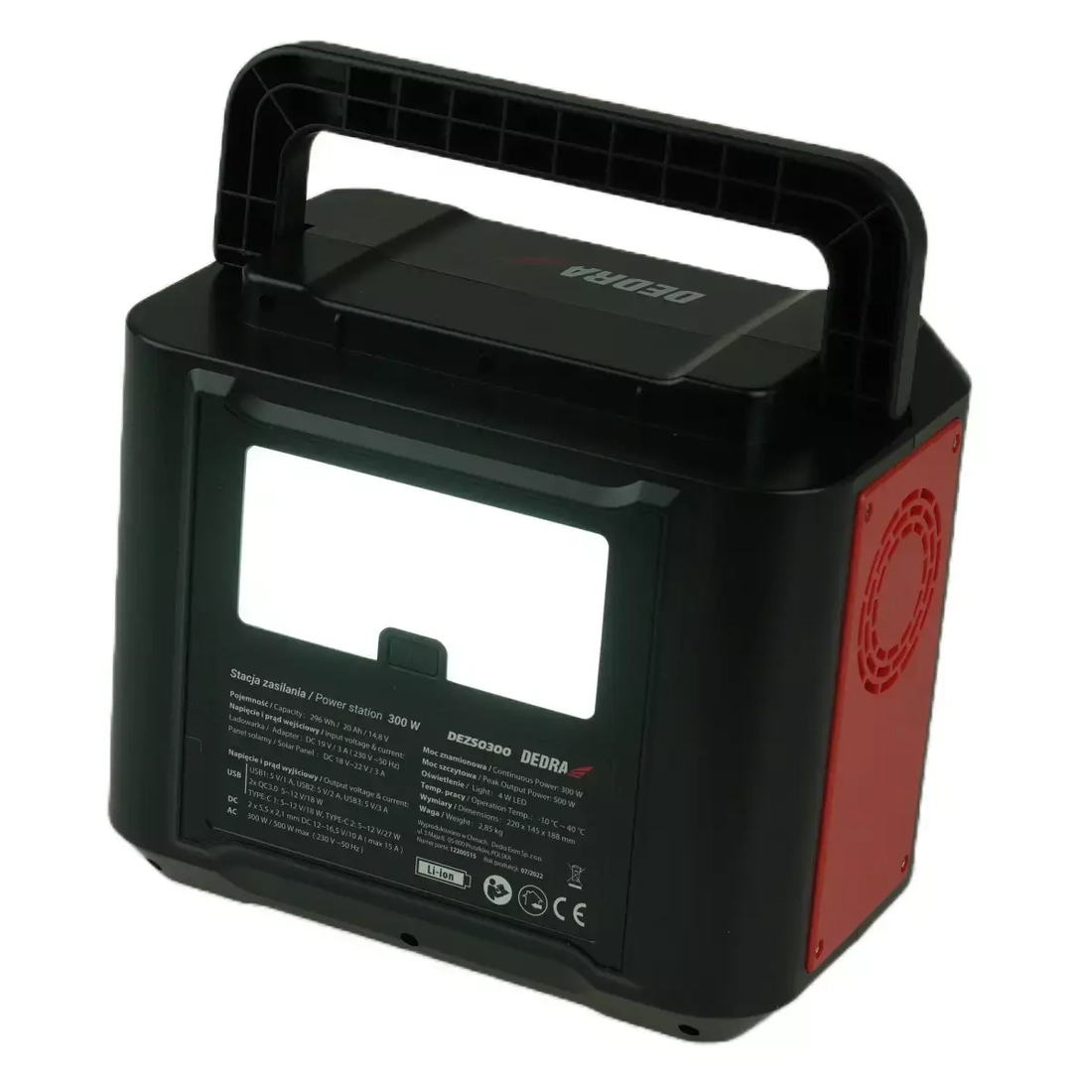

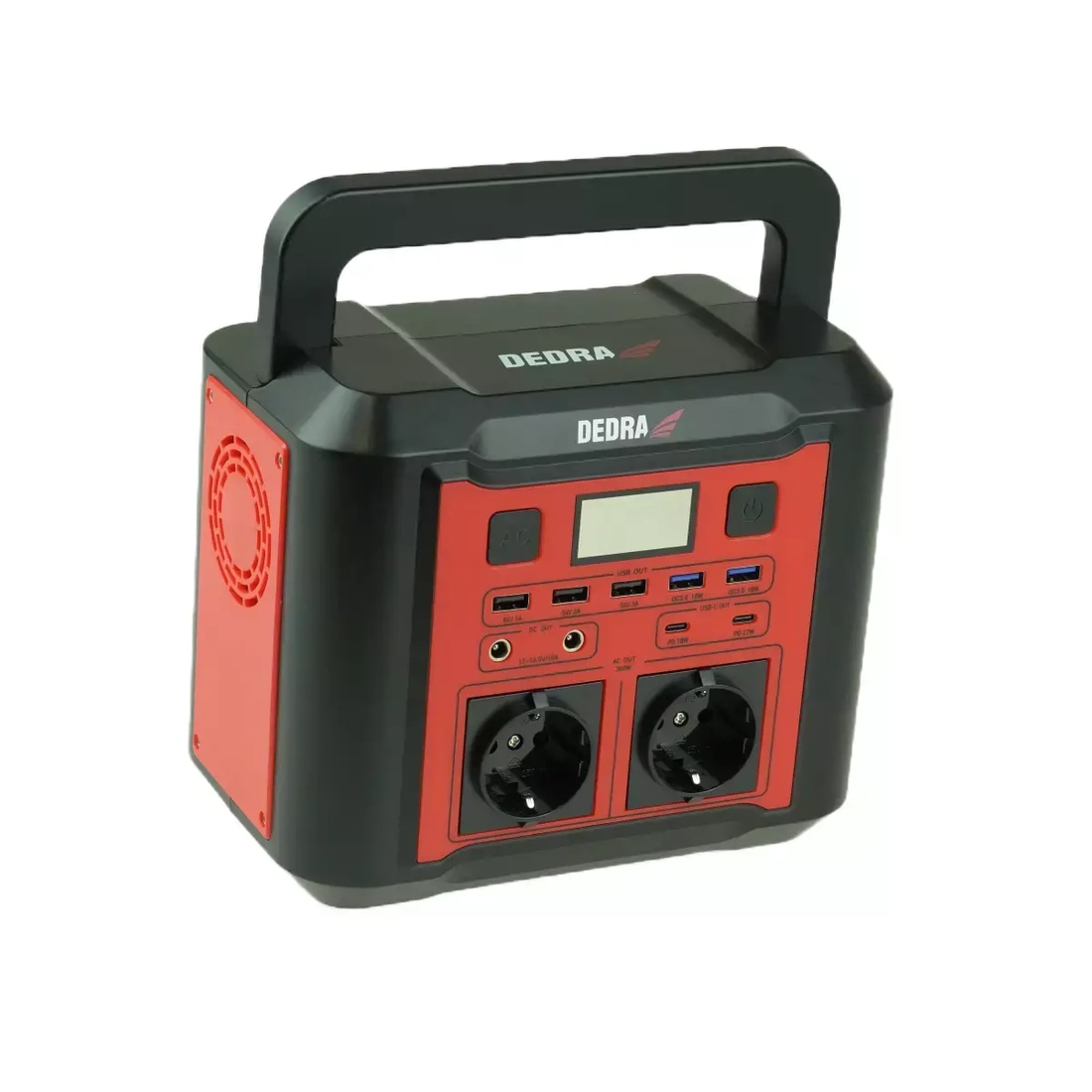

DEDRA DEZS0300 power station is a tool that gives the user access to power various types of electrical devices.
It mainly serves as an emergency power source when the electrical grid fails. With its large capacity, the user can power devices such as a smartphone, camera, laptop or TV. Such a station is therefore useful during longer trips or on various excursions such as camping trips, or on outdoor expeditions.
The small size and compact design of the station, ensure ease of transport and storage, while a number of safety features (m.in. fire protection) used in the product, ensures maximum safety of use. Compared to generators, the power station has the advantage of not burning fuel, being quiet and simple to operate.
DEDRA DEZS0300 Power Station has been equipped with the ability to operate an external photovoltaic panel [to be completed separately], used to recharge the device in outdoor conditions, that is, without access to the electricity grid. In addition, the kit includes a car charger, so this form of charging the station is also possible, especially during a long trip.
Attention: Power stations and generator sets are made in accordance with EU Directives and standards, which specify that the products are made as separated systems. Such a product design provides adequate electric shock protection for the user and is commonly used in emergency power equipment
Some consumer devices due to their design, protection of electronics ( e.g., some gas boilers) require the use of a grounded power system in the same way as it is for "socket current" ie. from the electricity grid. In this case, it will be necessary for an authorized installer to make the power connection individually.
Features of the DEDRA DEZS0300 Power Station:
- Sinusoidal output voltage waveform
- Works with all mains devices up to 300W
- A range of security features:
- against overcharging
- against voltage drop
- anti-short-circuit
- overload
- thermal
- Compact, compact design
- Light weight of the device
- LED Lighting [4W LED Continuous/Flashing/SOS]
- Included:
- mains charger - 1 pc.
- car charger with 12V cigarette lighter socket

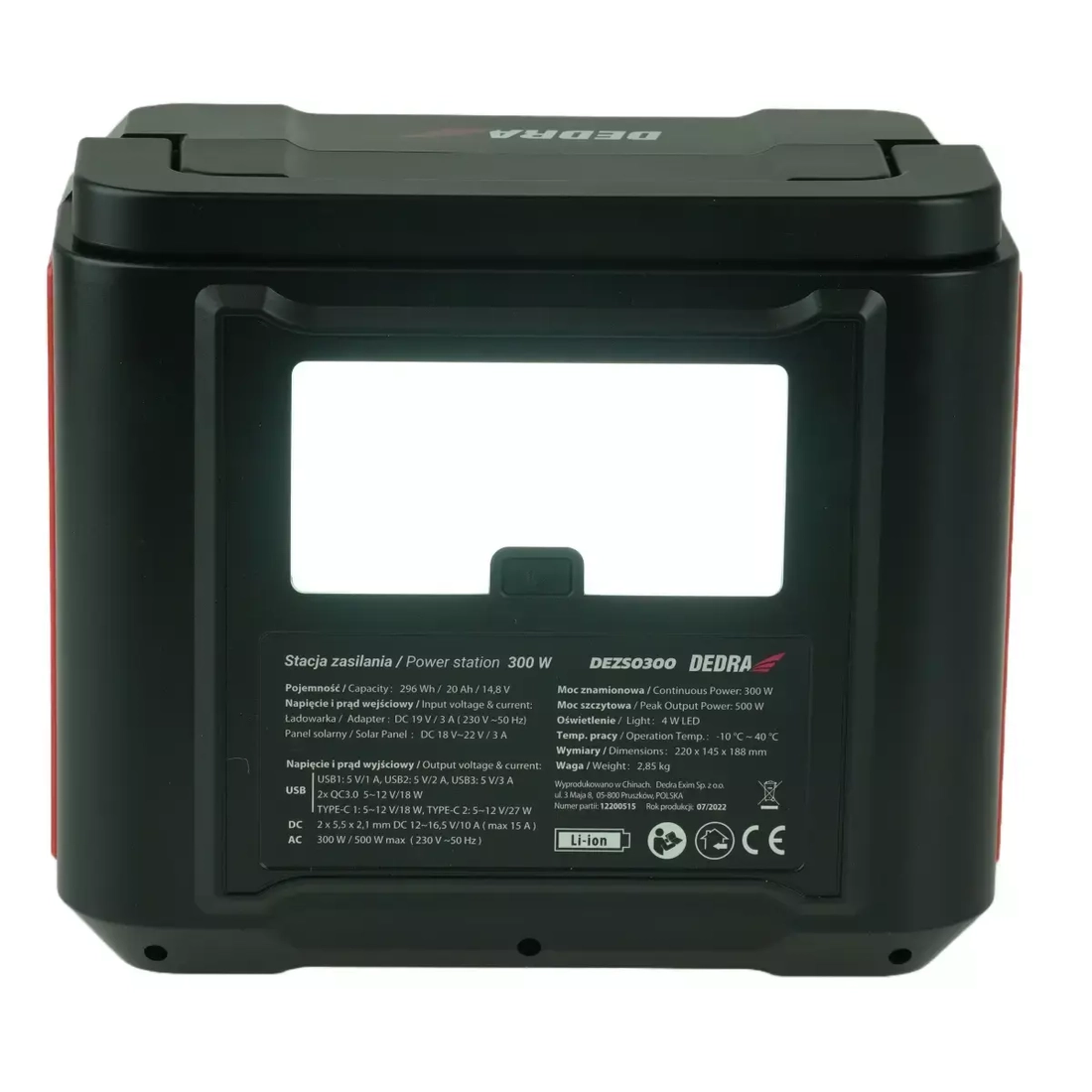

Technical specifications of the DEDRA DEZS0300 power station:
- Rated power: 300W
- Peak power: 500W
- Type of built-in battery: Li-ION
- Battery Capacity: 296Wh/20Ah/14.8V

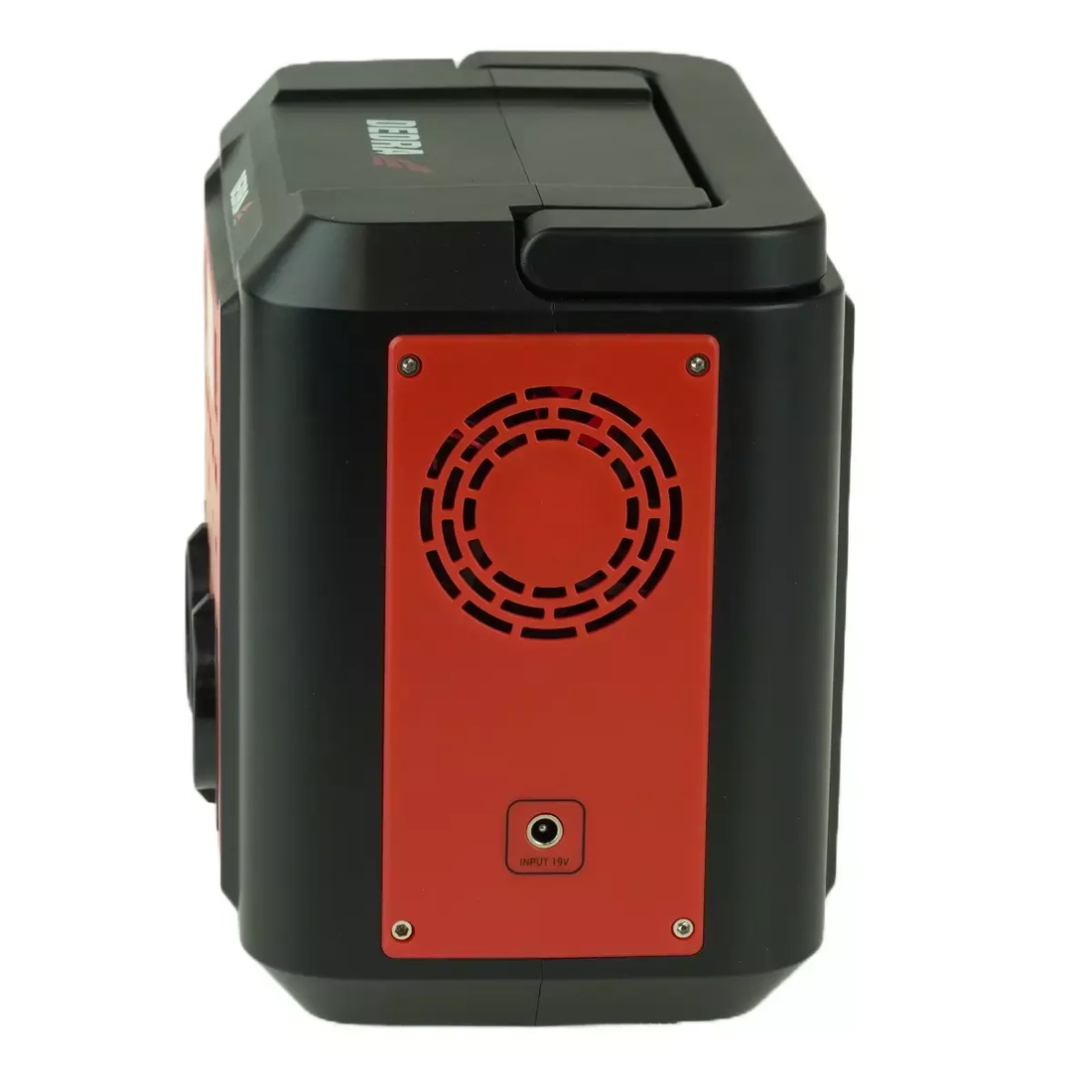

- Battery charging parameters: DC19V/3A
- Charging parameters by photovoltaic panel: MPPT, 18V~22V/3A Max
- Time to fully charge: DC:7~8 hours

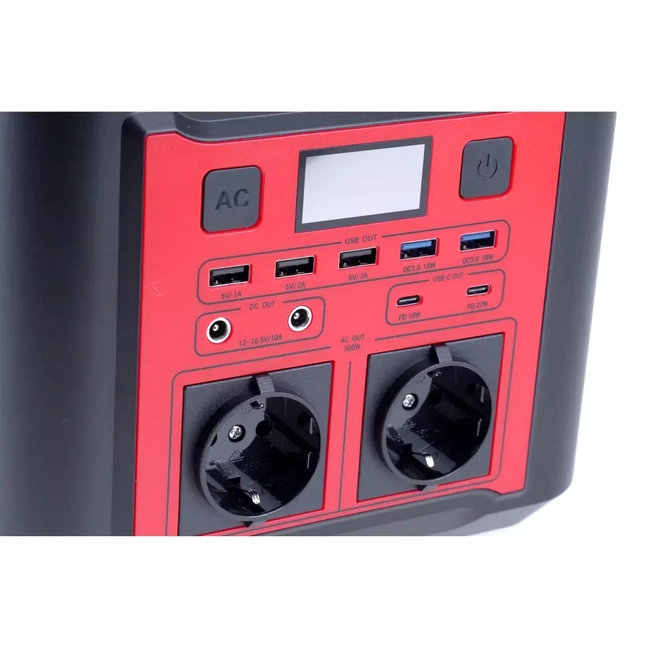

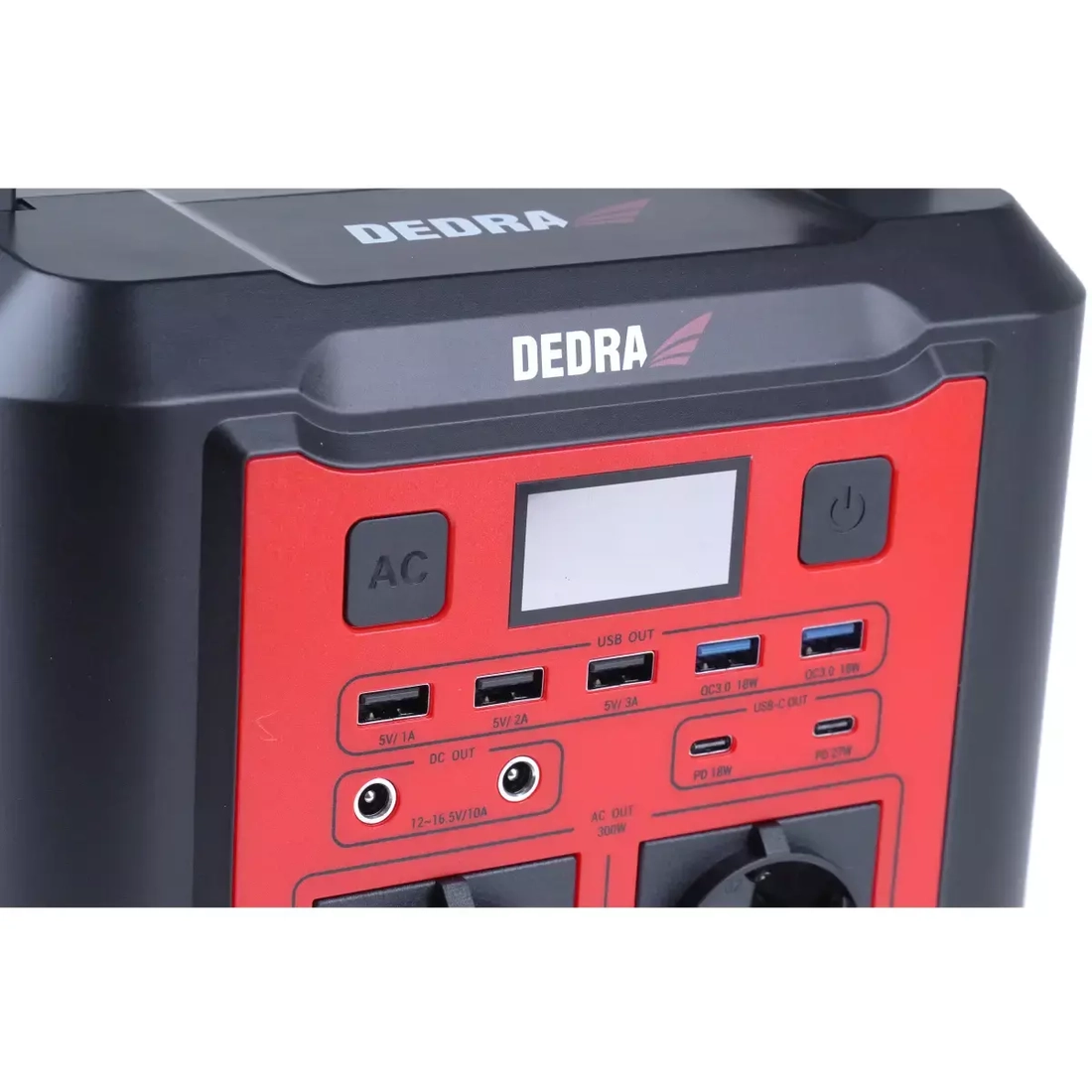

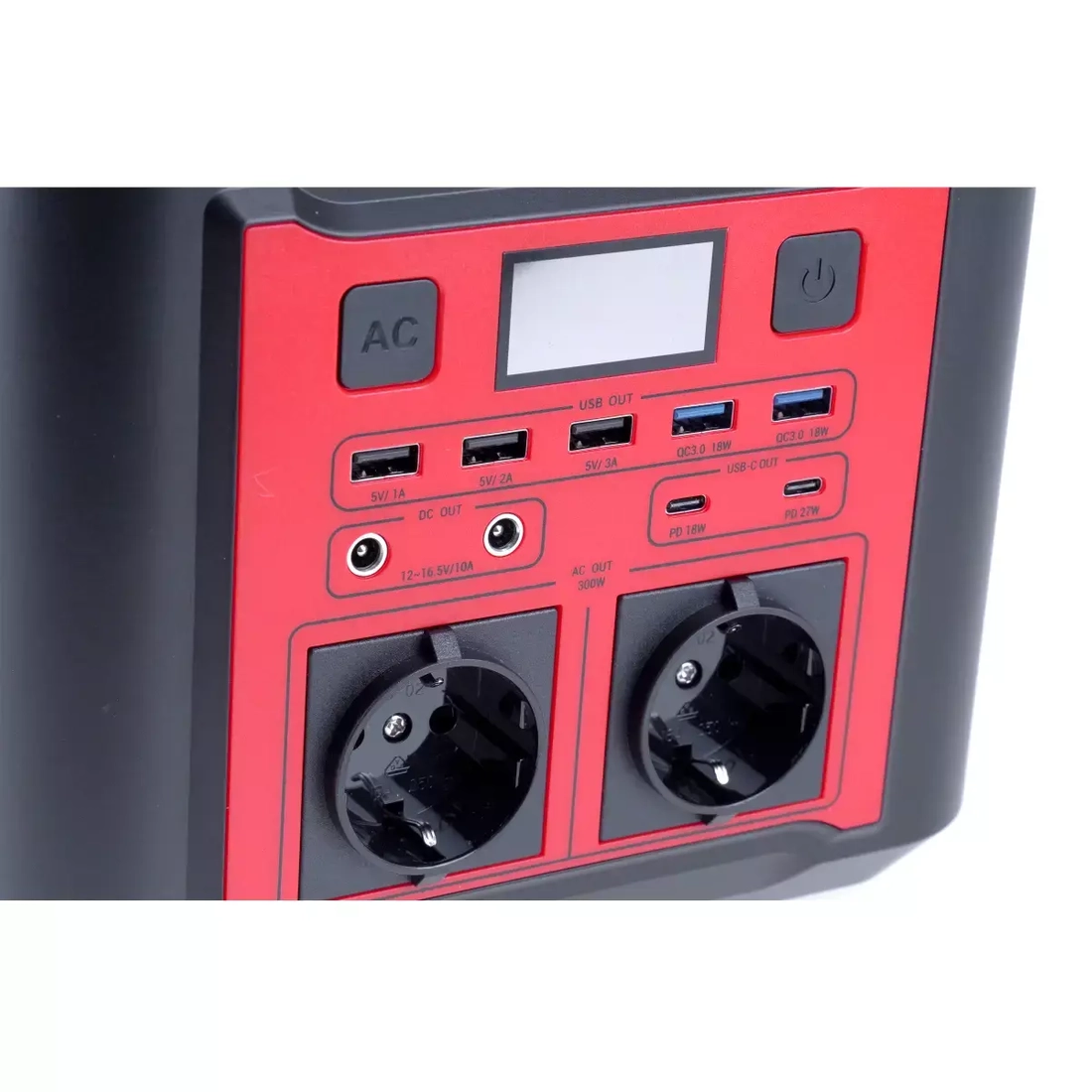

- USB output ports:
- 1xUSB 5V [1A]
- 1xUSB 5V [2A]
- 1xUSB 5V [3A]
- 2xQC 3.0 (5-12V 3A 18W)
- DC output ports: 2x12-16.5V / 10A
- USB-C output ports:
- 1x18W [5-12V 3A]
- 1x27W [5-12V 3A]
- Operating temperature: -10℃-40℃
- Weight: 2.85kg

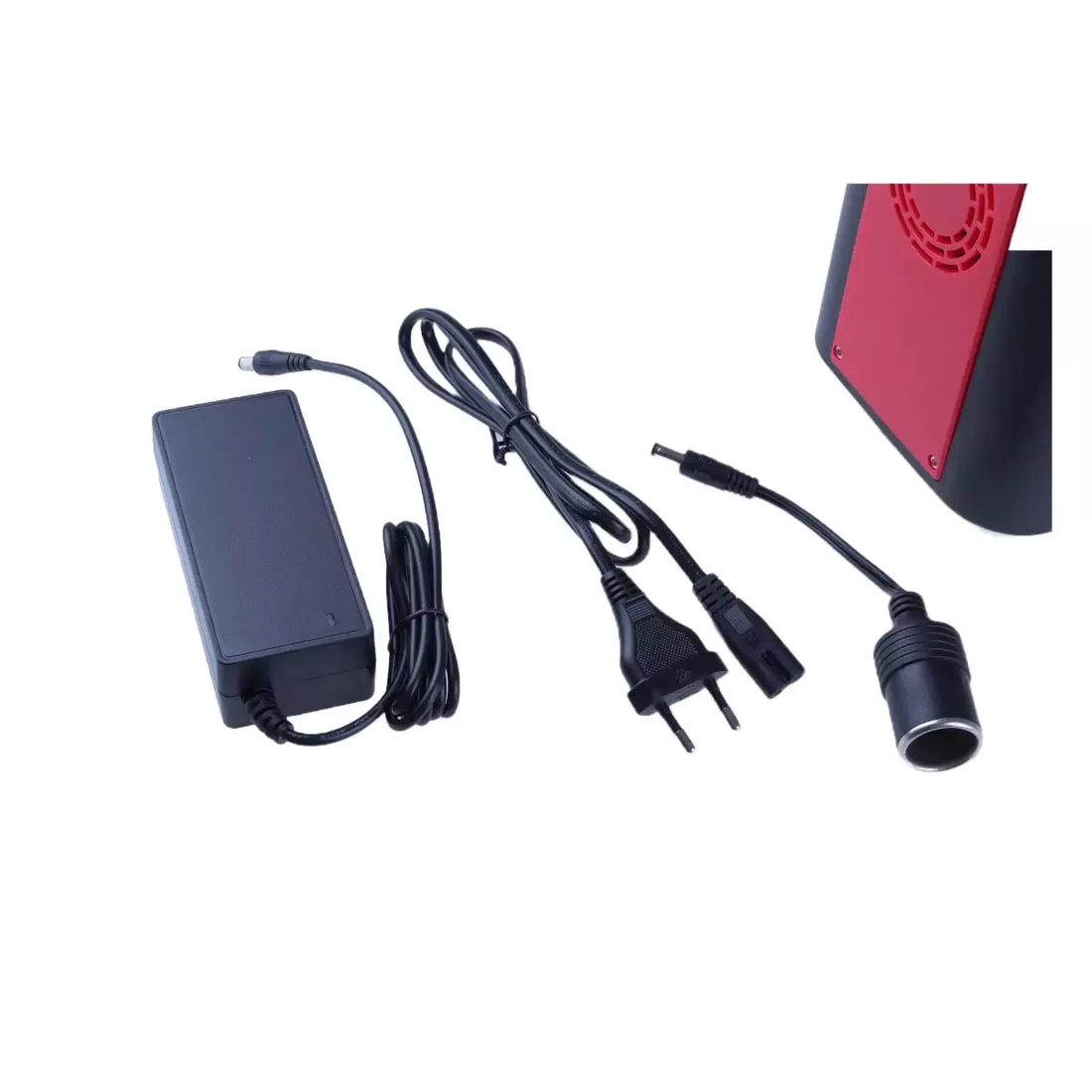

Completion:
- Power station
- Power charger (1 pc)
- Car charger with 12V cigarette lighter socket (1 pc)
Technical Specification:
Brand: DEDRA
Symbol: DEZS0300
Manufacturer code: 5902628933003
Warranty: Warranty 2 years
Series: DEDRA
Type: Power station
Peak power [W]: 500
Rated power [W[: 300
Battery capacity [Ah]: 20 (296Wh/14.8V)
Battery type: Li-Ion
DC output ports: 2x12-16.5V / 10A
USB-C output ports: 1x18W [5-12V 3A], 1x27W [5-12V 3A]
Operating temperature [°C]: -10 - 40
Car charger: Yes
LED lighting: Yes
LED lighting modes: Continuous light, Flashing, SOS
Security: short circuit protection, overload protection, thermal protection, against voltage drop, against overcharging
USB output ports: 1xUSB 5V [1A], 1xUSB 5V [2A], 1xUSB 5V [3A], 2xQC 3.0 (5-12V 3A 18W)
Weight [kg]: 2,85
