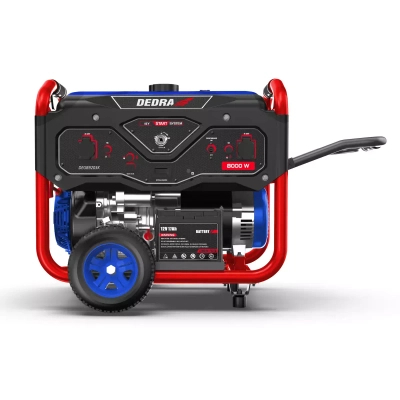

GENERATOR, GENERATOR DEDRA DEGB9203K POWER MAX. 8,3KW, 8000W, COPPER MOTOR WINDING, 1X400V, 1X230V

The DEGB9203K generator set, rated at 8,000W, serves as an emergency power supply in the event of a power outage.

It can also be used as an additional power source used in households, allotments, campgrounds or areas where repair and construction work is taking place. Electric start of the four-stroke engine increases the comfort of the machine. The generator set is equipped with one 400V(AC) outlet, one 230V(AC) outlet and one 12V(DC) outlet. The device has a 25l fuel tank.

The product has high efficiency and long operating time with low fuel consumption. Large transport wheels provide greater mobility of the device and greater comfort during transport.

NOTES: For safety reasons, the starter battery is disconnected from the unit for the duration of transport - so it must be connected before starting it up. The generator set is also not flooded with oil - so before starting work, the unit must be flooded with oil.

Attention: Power stations and generator sets are made in accordance with EU Directives and standards, which specify that the products are made as separated systems. Such a product design provides adequate electric shock protection for the user and is commonly used in emergency power equipment

Some consumer devices due to their design, protection of electronics ( e.g., some gas boilers) require the use of a grounded power system in the same way as it is for "socket current" ie. from the electricity grid. In this case, it will be necessary for an authorized installer to make the power connection individually

Features of the DEGB9203K generator set:

• One 400V alternating current (AC) outlet
• One 230V alternating current (AC) outlet
• One 12V direct current (DC) socket
• Voltage stabilization system (AVR)
• Low volume of 97dB
• Fuel consumption indicator
• Large transport wheels
• Additional transport handles

Technical specifications of the DEGB9203K generator set:

• Voltage 400V/230V/12V
• Frequency :50kHz
• Four-stroke OHV, single-cylinder engine
• Maximum power: 8300W
• Power for continuous operation: 8000W
• Motor power [kW]: 10.3 kW
• Engine RPM [min-1]: 3000
• Engine displacement [ccm]: 459
• Motor winding: copper
• Starting: electric or manual

• Fuel type: 95
• Fuel tank: 25 l
• Guaranteed Sound Power Level [dB(A)]: 97
• Weight without fuel [kg]: 95
• Performance requirement class: G1
• Power compliance class: A

Completion:

• Generator set
• User manual (1 pc)
• Candle wrench (1 pc)
• 12V DC cable (1 pc)
• Plug (1 pc)
