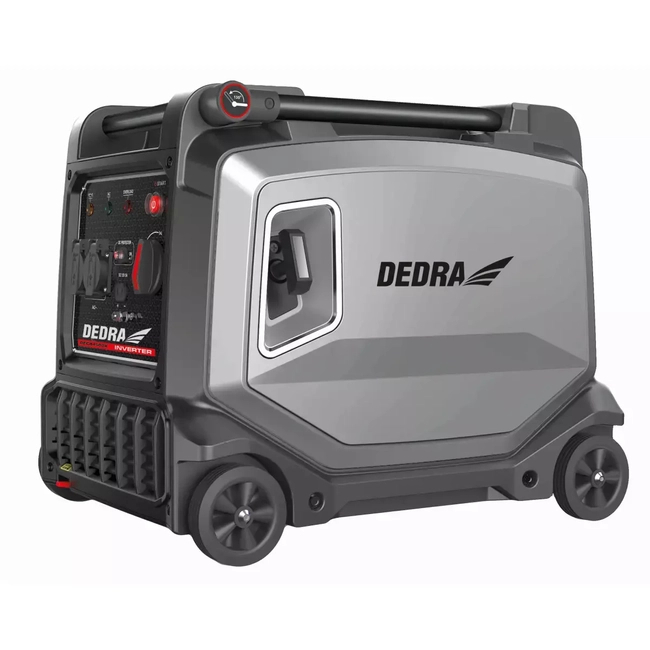

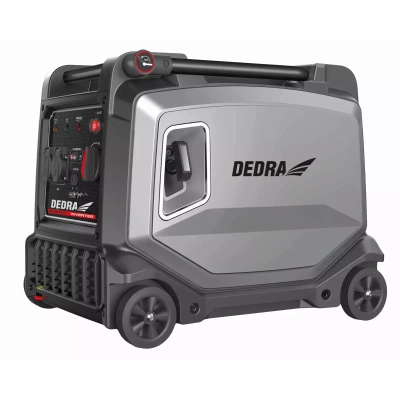

INVERTER GENERATOR SET 3,5/3,8KW DEDRA DEGA4500K

DEGA4500K generator set is an electric power device that is a stand-alone power source.

Thus, it will serve as an emergency power supply in the event of a power outage, or as an additional power source used in households, allotments, campgrounds or areas where repair and construction work is taking place.

DEGA4500K generator set is distinguished, first of all, by a very quiet mode of operation, which significantly increases the comfort of use, since these types of devices, as a rule, are very noisy and, in this respect, it is cumbersome to use them. The product also features a lighter, compact, "suitcase" design that makes moving and transporting the unit much easier than with other bulky units.

To increase the safety of use, the generator is equipped with a number of safety features m.in. with overload protection or low oil level warning.

Included with the unit is a candle wrench, two 16A plugs, a 12V D wire and a screwdriver.

For the aggregate we recommend the dedicated dEGL01 engine oil.

NOTES: For safety reasons, the starter battery is disconnected from the unit for the duration of transport - so it must be connected before starting it up. The generator set is also not flooded with oil - so before starting work, the unit must be flooded with oil.

Power stations and generator sets are made in accordance with EU Directives and standards, which specify that the products are made as separated systems. Such a product design provides adequate electric shock protection for the user and is commonly used in emergency power equipment

Some consumer devices due to their design, protection of electronics ( e.g., some gas boilers) require the use of a grounded power system in the same way as it is for "socket current" ie. from the electricity grid. In this case, it will be necessary for an authorized installer to make the power connection individually

Features of the DEGA4500K inverter generator set:

• AC output ports 2 x 230 V ~50 Hz
• DC output port 12 V (5A)
• Sinusoidal output voltage waveform
• Low oil level warning
• Overload protection
• Works with electronic devices with a maximum power of 3.5 kW
• Unit equipped with transport wheels and folding handle

Technical data of the inverter generator DEGA4500K:

• Voltage:230V
• Frequency: 50kHz
• Peak power: 3.8 kW
• Rated power: 3.5 kW
• Rated current: 15.2 A
• Weight: 43 kg
• Engine:

  • four-stroke, single-cylinder, OHV
  • type: LT223
  • power: 4.5kW
  • rotational speed: 2800RPM
  • displacement: 223 ccm
  • fuel tank capacity: 11 L
  • fuel type: 95
  • starting: manual and electric
• Guaranteed Sound Power Level [dB(A)]: 96
• Performance requirement class: G1
• Power compliance class: A


Completion:

• Generator set
• Candle wrench
• 16A plugs - 2 pcs.
• 12V DC cable
• Screwdriver
