CEDRUS RB02PRO PROFESSIONAL COMPACTIONAL REBAKER for branches 12cm ! CEDRUS RB 02 PRO CEDRB02PRO = LUMAG RAMBO HC10 PRO - OFFICIAL DISTRIBUTOR - AUTHORIZED CEDRUS DEALER
- Cedrus RB02Pro Diesel shredder Cedrus RB 02 Pro is a powerful machine designed to handle branches up to 12cm in diameter !!! . Drive from the engine to the cutting mechanism is transmitted via two V-belts.
120 mm combustion powered log chopper
CEDRUS RB02 Pro
PRO version - PROFESSIONAL !
+ STRONG PROTECTIVE CASE FREE OF CHARGE !
Cedrus RB02PRO petrol shredder is an efficient machine designed to work with branches of diameter up to 12cm. Cedrus RB02 Pro petrol shredder is an ideal device for owners of private gardens and orchards. Cedrus RB02 PRO is the "big brother" of the Rb02 version. A very successful design that has the advantages and solutions of professional shredders. The big advantage of this branch chipper is the 7hp Loncin internal combustion engine, which, combined with the larger drum, has a positive effect on the performance of this machine.
The perfect machine for semi-amateur and small gardening businesses!
It can handle shredding branches up to 12cm without any problems. The capacity of this machine ranges from 4 m3/h - 5 m3/h. A much better working result will be obtained by shredding wet material. RB02 PRO shredder is equipped with a powerful 7HP motor with a cast iron sleeve and transistorized ignition. The engine drives the working device, in the form of a drum with two working knives. The unit is equipped with two safety switches, an adjustable ejection chimney, pumped wheels, a convenient handle for transport, and a wide inlet opening to work even with heavily branched branches. The cuttings are suitable for composting, planting in tree or shrub beds or, when dried, can be used as fuel.
PRO line like PROFESJONALL - reinforced design for the demanding
Cedrus RB02 PRO is the latest version of the proven Cedrus Rb02 model. A very successful design that has the advantages and solutions of professional shredders. The big advantage of this branch chipper is the 7hp Loncin internal combustion engine, which, combined with the larger drum, has a positive effect on the performance of this machine.
Cedrus RB02 PRO branch chipper is a compact and proven petrol shredder for branches. The biggest advantage of this chipper compared to the CEDRUS RB02 model is that the chipper in the PRO version has quick and easy access to the cutting mechanism, which greatly simplifies servicing the blades. In addition, the RB02 PRO is powered by a more powerful 212cc Loncin engine, which generates 7HP. Loncin brand engines are known for their good performance and reliability. Thanks to the manual starter, starting the chipper is very easy and convenient.
Cedrus RB02 PRO chipper
Cedrus RB02 PRO branch chipper is a compact and proven petrol shredder for branches. The biggest advantage of this chipper over the RB02 model is that the chipper in the PRO version has quick and easy access to the cutting mechanism, which greatly simplifies servicing the blades. In addition, the RB02 PRO is powered by a more powerful 212cc Loncin engine, which generates 7HP. Loncin brand engines are known for their good performance and reliability. Thanks to the manual starter, starting the chipper is very easy and convenient.
Cedrus RB02 PRO shredder is equipped with a drum cutting mechanism in a 2+1 knife arrangement and here is another difference: in the PRO version we are dealing with a larger and therefore more efficient cutting mechanism. Relatively wide hopper allows shredding of branches up to 6 cm in diameter with offshoots. The Cedrus RB02 PRO chipper weighs 135 kg and we can easily move around the area because it is well balanced and placed on a 2-wheel chassis. The PRO version also has a ball hitch so you can hook it up to any tractor, trailer or other vehicle. Adjusting the direction of chip ejection is another advantage of the PRO version. In the RB02 model the woodchip is ejected only straight ahead and in the PRO version we can decide the direction of ejection of the shredded branches.
Shredder Cedrus RB02 PRO is equipped with a drum cutting mechanism in a 2+1 knife arrangement and here is another difference: in the PRO version we are dealing with a larger and therefore more efficient cutting mechanism. Relatively wide feed hopper allows shredding of branches up to 12 cm in diameter. The Cedrus RB02 PRO chipper weighs in at 135 kg and we can easily move around the area because it is well balanced and placed on a 2-wheel chassis. The PRO version also has a ball hitch so you can hook it up to any tractor, trailer or other vehicle. Adjusting the direction of chip ejection is another advantage of the PRO version. In the CEDRUS RB02 model the woodchip is ejected only straight ahead and in the PRO version we can decide the direction of ejection of the shredded branches.
For whom?
This shredder is mainly recommended for semi-amateur use and small gardening companies. If you are looking for a shredder with a thoughtful and convenient design, then this shredder will meet your expectations. Efficient cutting is achieved when shredding branches up to 12 cm in diameter. This small machine will easily fit in any garage. The performance and power of this branch shredder impresses even demanding customers.
Summary of the differences between the CEDRUS RB02 and the Professional version of the CEDRUS RB02 PRO
- Much Larger - Twice the size of the CEDRUS RB02 23cm shredding drum - CEDRUS RB02 Pro as large as 35cm
- Much larger diameter of shredded branches - CEDRUS RB02 up to 10 cm - CEDRUS RB02 PRO up to 12 cm + max branch width up to 15 cm
- Larger Shredding Knives
- More powerful engine : CEDRUS RB02 - G200F poj. 196 cm3 - CEDRUS RB02 PRO - LC170F poj. 212 cc
- Larger inlet opening for easy feeding of larger diameter branch: CEDRUS RB02 -15 cm - CEDRUS RB02 PRO as much as 23 cm
- Larger outlet for removing wood chips - CEDRUS RB02 -15 cm - CEDRUS RB02 PRO as much as 30 cm
- RB02 PRO hinged inlet and outlet throats - easy access to the drum, easy cleaning and maintenance and replacement of knives a RB02 4 bolt fastener
- More weight: CEDRUS RB02 - 95 kg a CEDRUS RB02PRO as much as 135 kg
- Car ball hitch CEDRUS RB02PRO - convenient transportation - CEDRUS RB02 - NONE

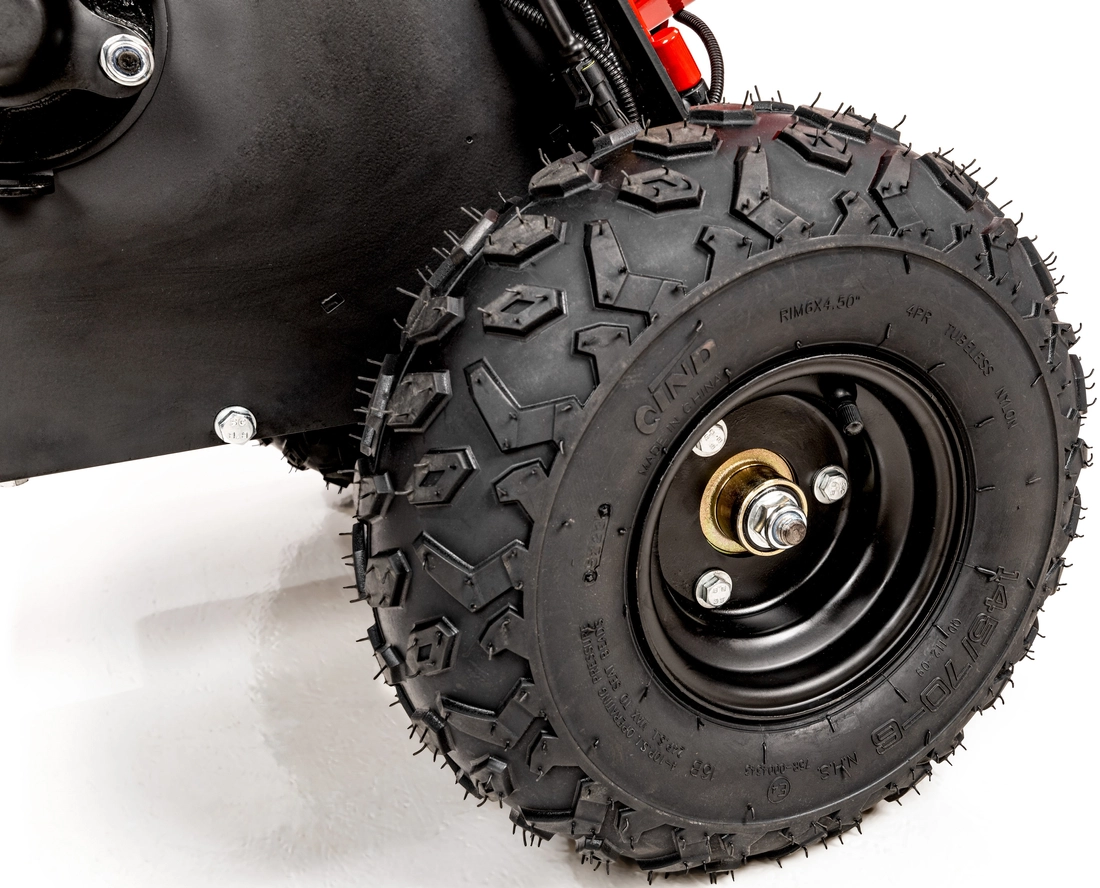

- Larger wheel size - CEDRUS RB02 4.1/3.5-4 a CEDRUS RB02 PRO large inflatable wheels 145/7.0-6
- CEDRUS RB02 PRO Double-bearing wheels with seals
- Larger solid drum hubs CEDRUS RB02 PRO
- Thicker sheet metal walls CEDRUS RB02 PRO up to 5 mm
- Ejection direction adjustment

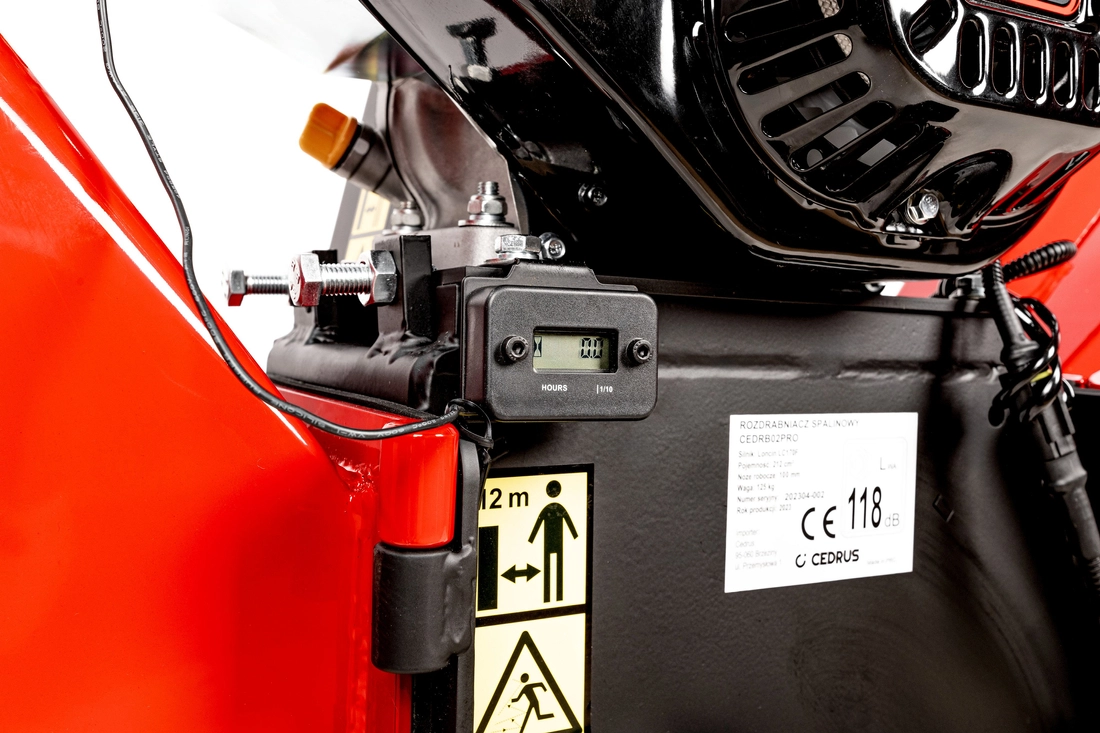

- CEDRUS RB02PRO Hour meter - ordinary CEDRUS RB02 - no meter
- Larger centrifugal coupling

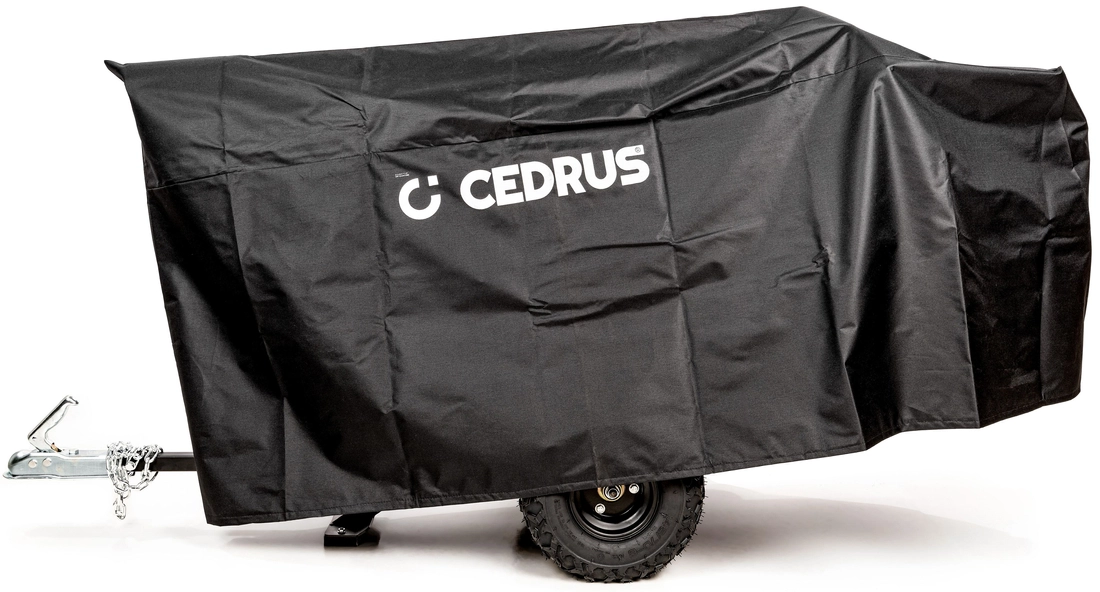

- Strong Protective Cover FREE !
- etc. PRO as PROFESSIONAL
A shredder is an invaluable aid when tidying up the garden or orchard. Its task is to shred tree and shrub branches into small pieces. The resulting "sawdust" can be used as ballast for shrubs or as a decorative element for alleys or paths. Thanks to the device, something that would normally take up a lot of space or require additional work is finely ground.
- a powerful Loncin LC170F engine with a cast iron sleeve,
- robust working device with two cutting knives,

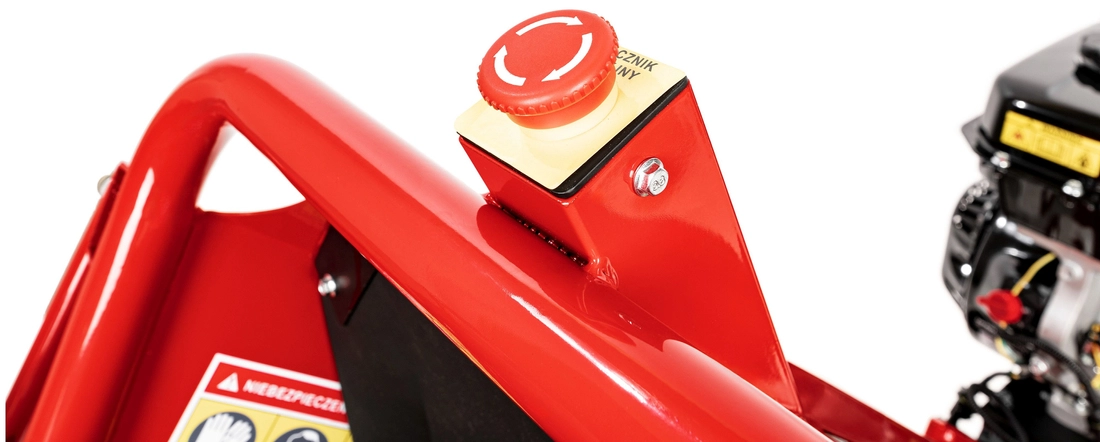

- safety during operation, thanks to operator safety switches,
- easy transportation of the machine, thanks to the pumped wheels and the car hitch,
- adjustable ejection deflector,
- a wide feeder opening with rubber to prevent chips from being thrown toward the operator,
- bearing-bearing drum shaft with calamites for easy maintenance of the machine,
- strong, stable construction,
- availability of spare parts
Technical Data:
- Professional Version
- Brand: Cedrus RB02 PRO
- Branch diameter max: 12 cm
- Engine: Loncin LC170F
- Engine Capacity: 212 cc
- Power: 7 hp
- Weight: 135 kg
- Max. branch diameter: 120 mm
- Working knives: 150 mm x 2
- Drum size: 350 mm
- Inlet throat opening: 148x223 mm
- Feeder size: 450x378 mm
- Gutter height: 87 cm
- Wheel size: 145/7.0-6
- Unit dimensions: 2279x651x1166 mm
- Dimensions of the box: 910x565x860 mm
- Ball hitch
- Additional advantages: pumped wheels, car hitch, adjustable chimney, safety switches + STURDY PROTECTIVE COVER FREE OF CHARGE !
LONCIN LC170F engine
- LONCIN LC170F - modern engine with a capacity of as much as 212 cc allows to achieve power of up to 7 hp.
- Four-stroke, OHV overhead-valve, air-cooled.
- Top-valve engine means less vibration and oscillation, also noise with better performance and higher torque.
- OHV - Easier firing, trouble-free and functional use.
- Powerful motor with cast iron sleeve
- Loncin engine brand
- Engine model LC170F
- Engine capacity 212cc
- Cylinder diameter x piston stroke 70mm×55mm
- Power max. 4.5KW (7.0HP)/3600rpm
- Max. torque 13.0/2500 N.m/rpm
- Oil sump capacity 0.6L
- Fuel tank capacity 3.0 liters
- Net weight 16(19)KG
- Dimensions (L. x Width. x Wys.) 381mm×325mm×327mm
Equipment set
- Set of mounting screws
- Set of mounting nuts
- Set of mounting washers
- Set of operating instructions in Polish
- CEDRUS Warranty Card
- Belt cover
- Car hitch
- Adjustable chimney
- Robust corporate shipping box
- 2 x original large inflatable wheels
- Original Candle + filter installed in the engine
+ G R A T I S In addition, a mounting kit:
- 1x Folding assembly key - for candle
- 1x wrench
- 1x socket crossbow
- 1x STRONG PROTECTIVE CASE FREE OF CHARGE !
WARRANTY AND SERVICE CONDITIONS
Goods purchased from our store are new and original and come with a full manufacturer's or importer's warranty.
When you buy Cedrus brand products from an official distributor, you get Cedrus manufacturer's full warranty on tools and gardening equipment
Cedrus Warranty
Offered by the Ewimax store - an official distributor of Cedrus tools - are subject to a full manufacturer's warranty, which provides comfort and a sense of security. Whether you choose to purchase online or in a Ewimax stationary store - you are assured of a full manufacturer's warranty.
Cedrus warranty - duration
The standard warranty period for newly purchased Cedrus brand products is 12 or 24 months from the date of purchase. Cedrus warranty period is calculated from the date of sale of the product.
Cedrus warranty 1 year
The standard one-year warranty applies to all Cedrus-branded tools, equipment and machines, available in the stationary store and online store. When you buy Cedrus brand gardening and forestry tools, you are guaranteed a one-year warranty.
Cedrus warranty 2 years
Select Cedrus brand products have an extended warranty period, up to 2 years Cedrus warranty. Detailed information on the length of the warranty period and whether the product has an extended warranty of up to 24 months can be found on the manufacturer's website.
Cedrus warranty terms and conditions
The seller's guarantee covers goods purchased using the Online Ordering System, for which a guarantee document is issued.
Detailed conditions for the implementation of the guarantee are specified in the guarantee form issued by the guarantor and given to the Purchaser at the latest together with the goods.
Complaints are processed and fulfilled only by authorized service points of CEDRUS Dealers
- In the event of a complaint, report the defect to the Seller or Authorized Service Point of the manufacturer of the device in question.
- Detailed Warranty Terms and Conditions can be found in the user manual
Warranty terms and conditions
1. The warranty is provided by Cedrus Joint Stock Company for a period of 24 months from the date of sale for consumer purchases or for 12 months from the date of sale in other cases.
The warranty covers goods/devices purchased on the territory of the Republic of Poland. Entitlements under this warranty do not extend to other claims relating to
damage to the goods/device and claims for loss of profits or incurred costs resulting from damage to the goods/device.
2. For extended warranties of some manufacturers beyond 24 months, annual service inspections are required (annotations in the warranty card):
- weibang mowers 60 months,
- cedrus tractors, Simplicity 36 months,
- ariens zero-turn tractors Edge series 24 months or 150 hours, Ikon Xd 36 months or 300 hours, Apex 48 months or 500 hours (whichever comes first),Zenith 48 months or 750 hours (whichever comes first)
- ferris tractors 24 months unlimited hours, 48 months or 500 hours (whichever comes first). Drive belts, tires, brake pads, batteries, knives
are guaranteed for 90 days. the 2-belt drivetrain used on IS 6200, ISX 3300, IS 3200Z, ISX 2200, IS 2100Z and ISX 800 models is warranted for 36 months or 300 hours (the warranty covers parts and labor in the first year, only parts in the second and third years). Coilover shock absorbers and all suspension related components are warranted for 60 months with no limit on hours.
Knife drive belts on FW35, FM35, SRSZ1 models are warranted for 12 months or 100 hours.
- pubert soilers with Honda engine 60 months,
- cedrus mowers with Kawasaki engine 36 months,
- wiper robotic mowers: Trekker series 72 months (annotated in the warranty card and Wiper service application).
3. For equipment with extended warranties from some manufacturers, the warranty for motors (manufacturer) and gearboxes is 24 months consumer purchase or 12 months in the
other cases.
4. Warranty repair is understood to be activities of a specialized nature appropriate for the removal of a physical defect covered by the warranty.
5. Warranty is not covered:
(a) parts subject to normal wear and tear:
- components of the cutting system (guides, chains, adapters, knives, wheels, discs, drills, grinding wheels, holders of components),
- cables: starter, drive, brake, adjustment cables,
- drive components (clutch drums, clutches drive wheels, drive shafts, pulleys, V-belts and toothed belts, equipment running wheels),
- filters for air, oil, fuel, water, hydraulic fluids,
- spark plugs, ignition wires, springs, rubber dampers, diaphragms, nozzles and carburetor valves,
- electrical wires, brushes, brush-holders, fuses, light bulbs, manual and electric starters.
b) damage resulting from the use of oils other than those recommended by Cedrus Joint Stock Company and the manufacturer (applies to 2-stroke as well as 4-stroke engines).
(c) damage caused by the use of fuel, low-quality mixture.
d) damage that occurred as a result of repairs outside the service network of Cedrus Joint Stock Company.
(e) mechanical, thermal, chemical and all other damages caused by an act or omission by the User.
f) damage caused by natural partial or complete wear and tear in accordance with the characteristics or intended use of the equipment.
(g) damage caused by failure to follow the manufacturer's recommendations from the operating instructions and service messages.
(h) damage resulting from:
- alterations, repairs and structural changes made by the User,
- improper or inconsistent with the instructions for installation, use, lack of care for the equipment (use of non-original materials),
- transportation.
(i) intentional damage to equipment.
(j) maintenance activities - cleaning, replacement of consumables, service inspections.
6. Batteries are guaranteed for a period of 6 months.
7. Repairs and inspections of the equipment should be carried out in the service network of Cedrus Joint Stock Company.
8. The warranty for the parts used in the repair of the so-called "inserted parts" is given for a period of 6 months.
9. The complainant has the right to exchange the goods/device for a new one in the event that the Authorized Service Center determines in writing that removal of the defect is impossible or economically unreasonable.
10. The complainant should deliver the goods/device to the Authorized Service Center. The goods/device under complaint should be complete and in the condition they were in at the time of damage. It should also come in a suitably protective package.
11. The Authorized Service Provider is obliged to consider the legitimacy of the complaint within 14 days from the date of delivery by the Complainant of the goods/device. In the case of recognition of the warranty, the Authorized Service Provider is obliged to perform its obligations within 30 days.
12. The warranty card must be properly filled out. Warranty rights can be exercised only upon presentation by the user of a valid warranty card and proof of purchase. Any arbitrary changes to the entries on the warranty card or making repairs on your own will void the warranty.
13. In the case of a warranty for rechargeable devices, the serial numbers of all components of the set must be entered in the warranty card.
