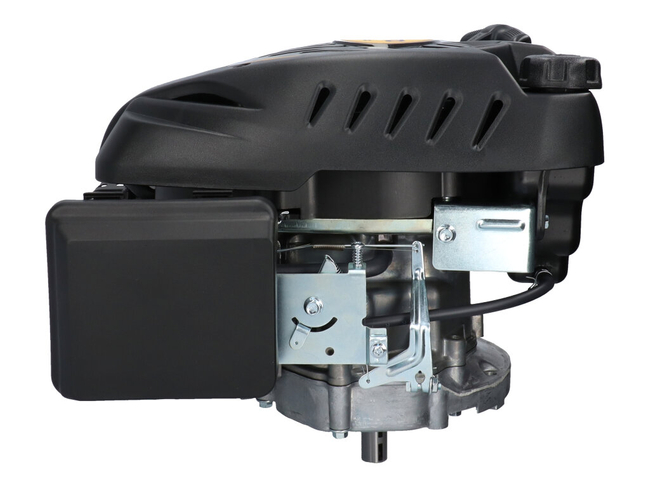

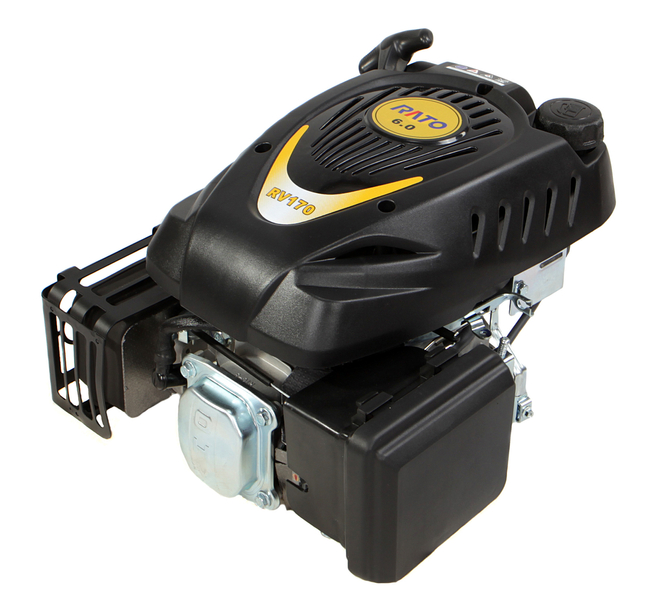

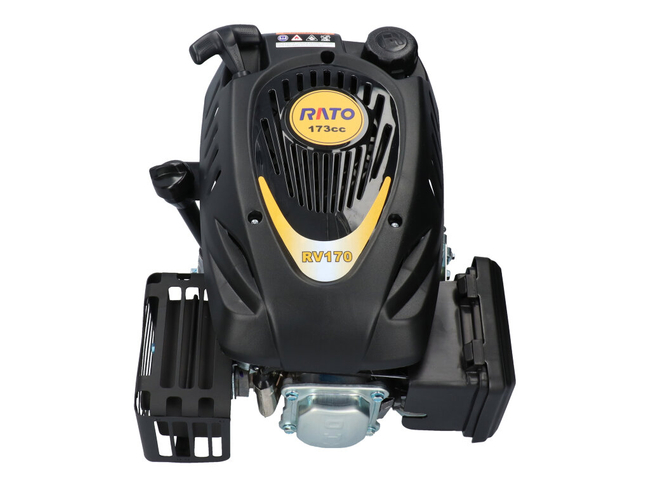

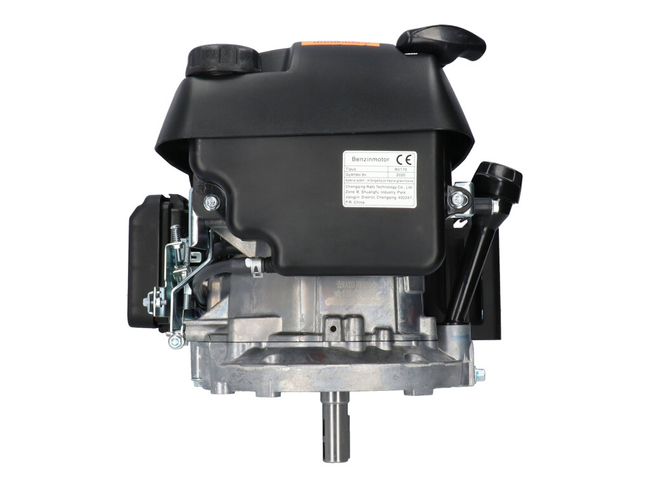

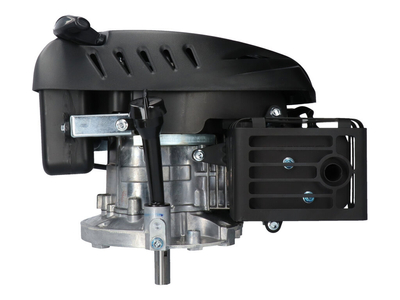

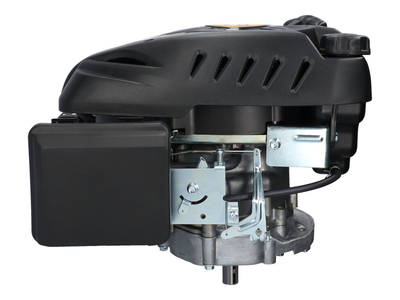

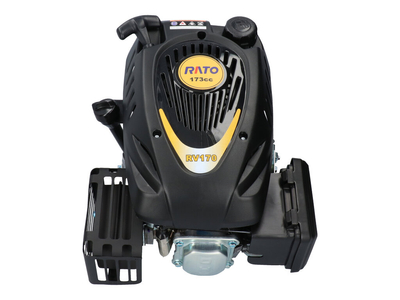

RATO RV170 PETROL ENGINE 6 hp Shaft 22.2 mm Type C MOTOR - EWIMAX - OFFICIAL DISTRIBUTOR - AUTHORIZED RATO DEALER
- Strong and durable Rato engines extremely resistant to harsh weather conditions. All horizontal shaft engines have oil sensors, and cast iron bushings that increase the life of each engine.
GASOLINE INTERNAL COMBUSTION ENGINE
RATO RV170
6 hp Shaft 22.2 mm
Rato RV170 motor vertical shaft 80 mm dia. 7/8 inch 22.2 mm shaft type C
Rato internal combustion engines are very good quality products from the Polish distributor of this brand in our country. As a result, you get a product with a Polish warranty and full availability of all spare parts in many service points in our country. The manufacturer offers a wide selection of engines for gardening and construction machinery ranging from small models to several-horsepower two-cylinder drive units
Rato engines have versatile applications. Typical engines in their class suitable for: Trowels , Compactors, Tillers, Lawnmowers, Cutters, Power generators, Motopumps, Vibrators, Diesel Washers, Diesel Vacuum Cleaners, Diesel Chippers, Diesel Circular Saws, and other equipment and machinery used in forestry, horticulture, construction, and road equipment.
Strong and weather resistant.
RATO motors are characterized by high efficiency, compact design and high reliability.
- Reliability
- Extensive service network
- Availability of parts
- Price/quality ratio
Application:
- Concrete trowels.
- Soil Compactors.
- Generators
- Cutters
- Water pumps
- Cultivators
- Shredders
- Construction equipment
- Gardening equipment
- etc.
Reasons to choose a RATO brand engine
- RATO engine distributor has been in business since 1993. It has dozens of service points throughout the country. Thanks to this, warranty and post-warranty repairs will not be a problem at all.
- Engines have a cast iron cylinder liner.
- The automatic suction system used in the RV170 model automatically dispenses the amount of fuel needed to start the engine depending on the temperature.
- Thanks to their simple design, RATO motors are highly reliable and easy to service.
- Easy access to spare parts from distributors or service centers.
- High quality is confirmed by the fact that RATO units are installed in equipment brands such as: Husqvarna, Pubert, Cedrus ,Fogo etc.
PARAMETERS:

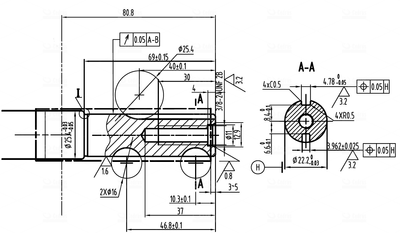

Rato RV170 motor vertical shaft 80 mm dia. 7/8 inch 22.2 mm shaft type C
Technical data:
- Status - new
- Manufacturer - RATO
- Model - RV170C
- Engine type - gasoline, single-cylinder, four-stroke, overhead-valve (OHV), air-cooled
- Displacement capacity - 173 cm3
- Max by Rato - 4.4 hp / 3600 rpm
- Power max - 6.0 hp / 3600 rpm
- Max. torque - 9,0 N.m / 2500 rpm
- Oil sump capacity - 0,6 L
- Fuel tank capacity - 1 liter

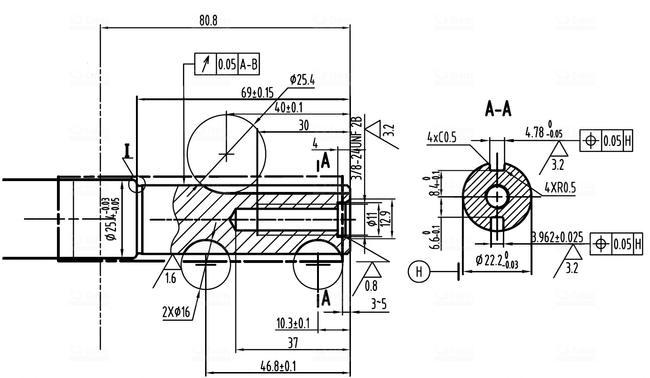

- Shaft diameter - 22.2 mm
- Shaft length from sealer - 80 mm
- Dimensions (L/W/H) - 395 x 348 x 282 mm
- Weight without liquids - 12.5 kg
- Attachment to housing - 3 screws (standard)
- Automatic suction system (the engine itself dispenses the dose of fuel needed for starting)
- The motor shaft has a cutout for a rectangular wedge (4.8 mm)
- Safety brake - yes
- Ability to connect a speed control maneuver - yes
- Manual wire start
- Paper air filter
- Cast iron engine bushing
Engine RATO Corresponding Engine HONDA,LONCIN , BRIGSS & STRATTON
THE PRODUCT COMES FROM THE OFFICIAL DISTRIBUTION TO THE POLISH MARKET !
NOTE: The RATO engine is packaged without oil, so it is necessary to pour oil before the first use and it is recommended to read the instruction manual.
