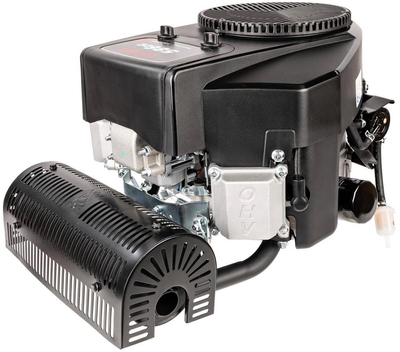

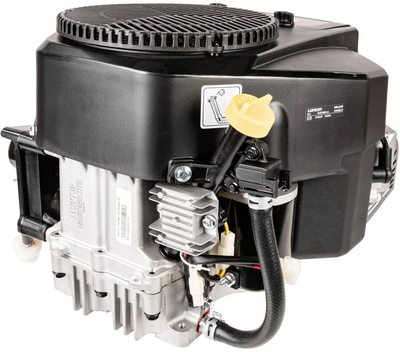

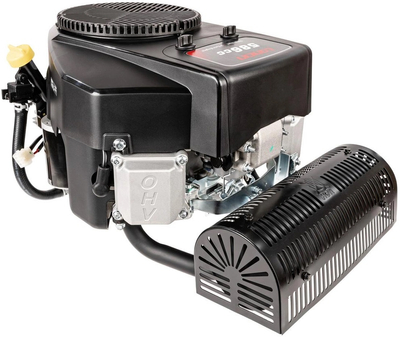

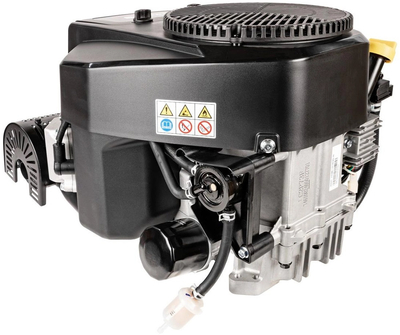

LONCIN LC2P73F-A ENGINE FOR TREATER V-TWIN PETROL ENGINE LONCIN 2P73 V2 17 hp 586 cm3 TWO CYLINDRED VERTICAL VALVE SHAFT 25,4 mm MOTOR HONDA , VANGUARD , BRIGGS , KOHLER - EWIMAX - OFFICIAL DISTRIBUTOR - AUTHORIZED DEALER LONCIN
- Brand new, brand new, high quality LONCIN petrol internal combustion engine from the factory
- ENGINE LONCIN LC2P73F-A FOR TRAKTOR V-TWIN PETROL ENGINE LONCIN 2P73 V2 17 hp 586 cm3 TWO CYLINDRED VERTICAL VALVE SHAFT 25,4 mm MOTOR HONDA , VANGUARD , BRIGGS ,
LONCIN ENGINE LC2P73F-A TO THE TRACTOR
INTERNAL COMBUSTION GASOLINE V-TWIN V2 TWO-CYLINDER
17 hp vertical shaft 25.4 mm
One of the world's best air-cooled garden tractor engines 17 hp and 37 nm, 586 ccm with electric starter.
Loncin uses modern technology in the production of engines and other products to meet customer demands. Much attention is also paid to environmental issues. The result is the production of fuel-efficient engines, which reduces the financial cost of fuel purchases and reduces carbon dioxide emissions into the environment.
Four-stroke,two-cylinder gasoline engine with power 17 KM is a universal power supply device.
It is cooled by a forced-air circulation system that has proven itself in practice.
Loncin LC2P73F-A engine is a 2-cylinder power unit used by many tractor manufacturers. This engine can be found in tractors from Oleo-Mac or SOLO by AL-KO , CEDRUS , ARIENS etc. Very powerful and trouble-free engine with a cast iron sleeve in the cylinder and an oil pump.
Your old, worn-out engine needs a major overhaul, the cost of which exceeds the value of the engine? The solution that is easiest and safest for you is to replace the engine with a new one!
The Loncin LC2P73F-A engine is a large, powerful drive motor designed for large garden tractors working on larger areas. It has 2 cylinders in a V configuration, and its displacement is 586 ccm. It offers you a maximum power of 17 horsepower at 2,400 rpm. /min and a maximum torque of 37 Nm available at just 2,400 rpm./min.
The oil pump and oil filter ensure proper lubrication and support air cooling of the engine during continuous operation. Cast iron cylinder liners and a bearing-mounted crankshaft significantly extend engine life. The air filter consists of a preliminary and a main part, thanks to which it more effectively captures impurities sucked into the engine's interior.
Walbro brand fuel pump powers the carburetor through forced circulation of gasoline in the fuel system. This is important if you have a tractor in which the fuel tank is located at the rear under the seat, because in this situation gravity feeding of the carburetor is not possible!
The mounting bolts have standard spacing, so it will fit in place of your old engine without too much trouble. The external dimensions are: 466x480x356 mm and allow for installation under most engine covers. A shaft with a diameter of 25.4 mm and a length of 80 mm is also standard! The overall length of the shaft measured from the sealer is 86 mm.
The engine runs evenly, smoothly making sounds that are pleasant to the ear. The vibrations created during its operation are balanced by pistons working in a V-Twin system. Thanks to the aforementioned high torque and high power, you don't have to worry about whether the tractor can handle mowing dense grass. This motor has been used for many years in top tractor models by the most well-known manufacturers!
Features
- cast iron sleeve with high strength and wear resistance
- efficient cooling system
- economy, low fuel consumption
- high power, high efficiency
- versatile use
- easy to use and maintain
- hose for pouring oil out of the engine
- electric starter - easy start
- Two-cylinder V2 engine - high power and torque
The best recommendation is the fact that this engine has been installed in tractors from leading manufacturers for many years.
Application:
- Lawn tractors
- Mowers
- Construction equipment
- Gardening equipment
- etc.
PARAMETERS:
- Status - new
- Manufacturer - LONCIN
- Model: LC2P73F-A
- Power max.: 17 HP
- Engine Capacity: 586cc
- Engine type: With vertical shaft
- Shaft: 25.4mm x 80mm (from 86mm sealer)
- Application: Tractors
- Max. torque: 37 Nm
- Starter: Electric
- Muffler in kpl.: YES
- Oil filter kpl.: YES
- Oil sump capacity: 1.8 liters
- External dimensions. engines: 466x480x356 mm
- Weight: 40 kg
Number of cylinders: 2 V-Twin, vertical cylindrical shaft
- Shaft type: cylindrical; length: 80 mm; diameter: 25.4 mm
- Weight: 40 kg
- Starter: electric
- Equipment: electric starter, oil filter, muffler, fuel pump, Euro 5
THE PRODUCT COMES FROM THE OFFICIAL DISTRIBUTION TO THE POLISH MARKET !
NOTE: The LONCIN engine is packaged without oil, so it is necessary to pour oil before the first use and it is recommended to read the instruction manual.
