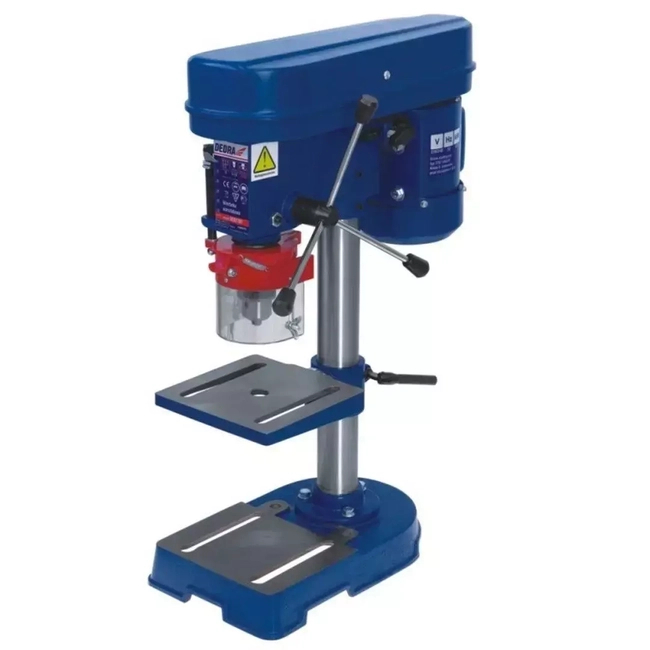

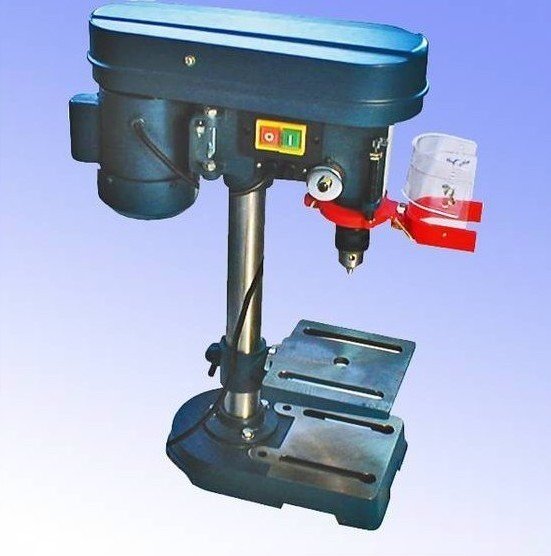

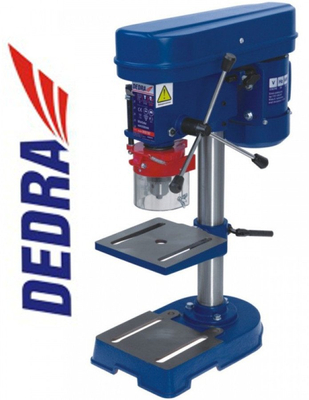

DEDRA DED7707 COLUMN METAL DRILLING MACHINE

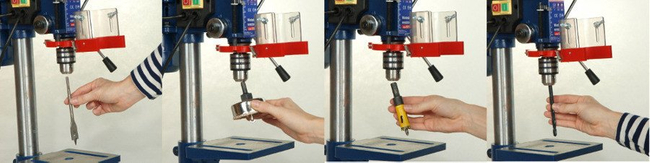

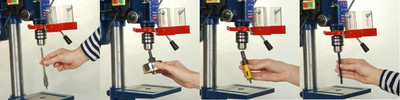

Workshop drill DEDRA DED7707 was designed for simple drilling work in small workshops and hobby studios. It is equipped with a 350-watt induction motor, which allows stable operation without overloading the equipment. The device allows you to perform drilling operations in the following materials: wood, wood-based materials, plastics, non-ferrous metals, light metals, general-purpose structural steels, cast irons.It is possible to make holes in composites and ceramics, provided the appropriate drill bits are used

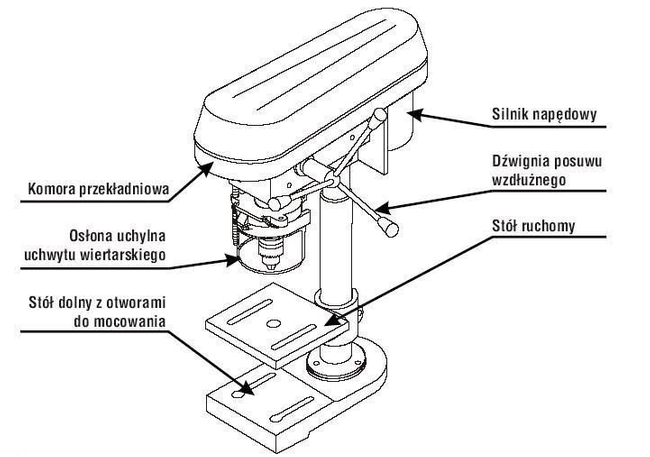

Product Characteristics:

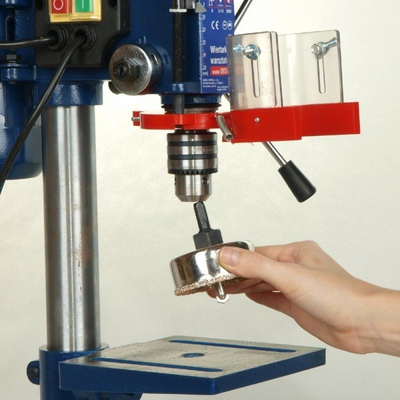

• It is possible to make holes in composites and ceramics, provided the appropriate drill bits are used.
• The 160×160 mm top table is adjustable in height and has a tilt angle of +/- 45 degrees.
• The lower table is 290×190 mm in size.
• Massive spacious base plate with T-shaped grooves guarantees the stability of the device.
• Transparent spindle guard protects against chips or sudden ejection of the workpiece.
• The drill body, base and work table are made of cast iron.
• A durable and quiet induction motor is used to drive the drill.

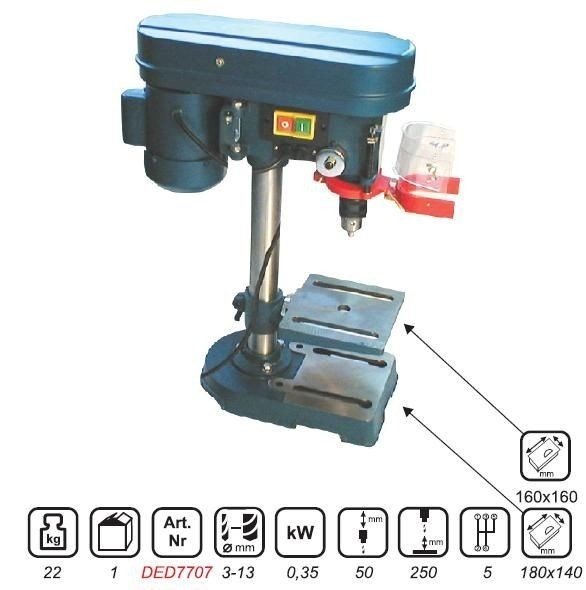

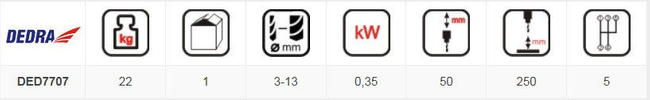

Technical Data:

• two-phase induction electric motor ( with starting phase)
• power supply 230 V 50Hz
• power 350 W
• speed 2800 rpm

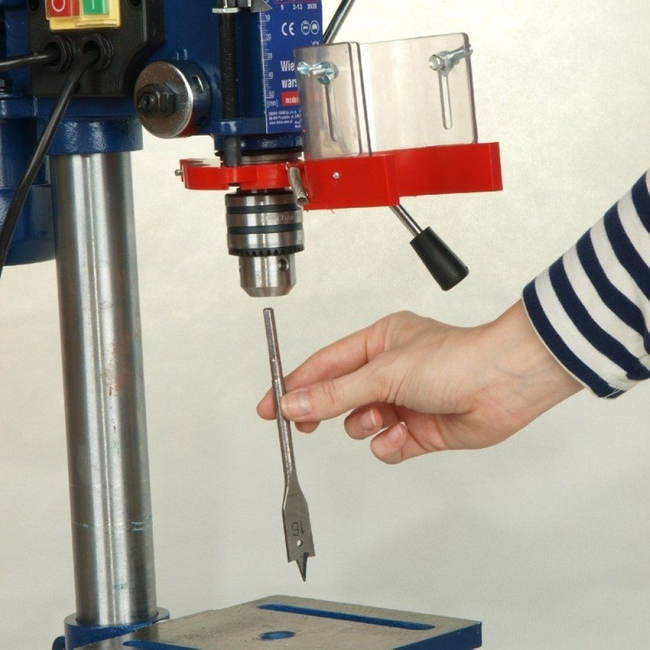

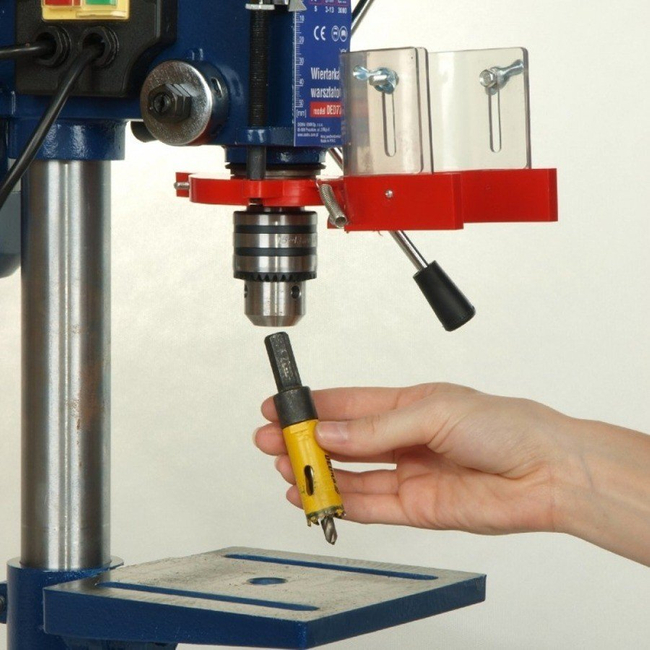

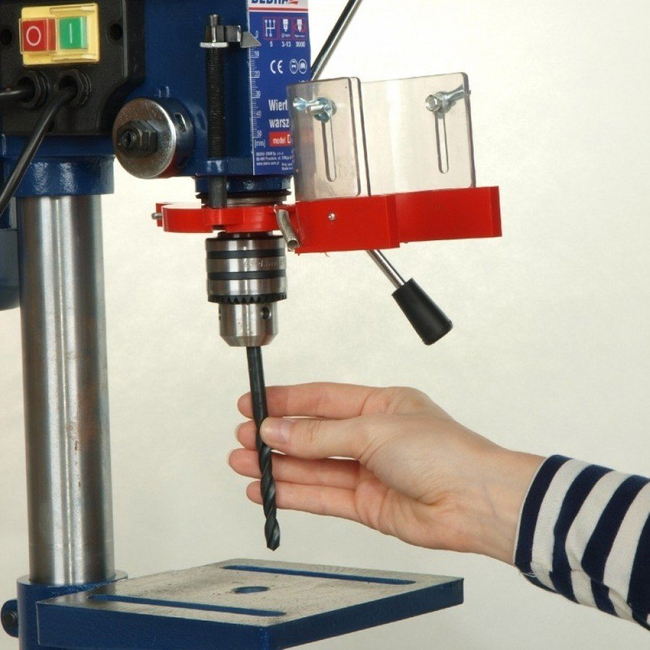

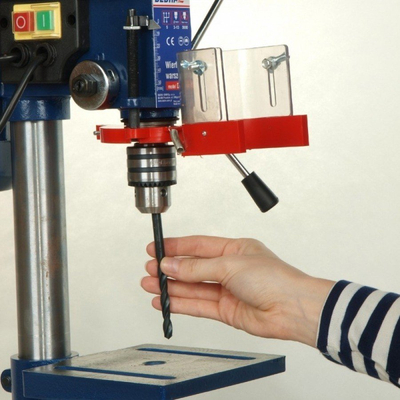

• drill chuck:
• shank diameter range 3 - 13 mm, mounting on cone Morse 2
• number of speeds/spindle pitch 5/ 50 mm
• dimensions of the movable table 158 mm x 162 mm
• bottom table dimensions 140 mm x 180 mm
• range of inclination of the movable table from 0 degrees to 45 degrees
• noise emissions (according to ISO 7960 Annex A 2/95) Under load No load
• lPA sound pressure level 79.9.0 dB (A) 73.0 dB (A)
• sound power level LWA 83.9 dB (A) 75.2 dB (A)
• weight 22.0 kg

EAN product code: 5902628770707
