DEDRA DED7729 WOODSHELF CONSTRUCTION TABLE Saw 315mm 3.4kW EWIMAX OFFICIAL DISTRIBUTOR - AUTHORIZED DEALER DEDRA
- Professional saw DEDRA DED7729 designed for all types of wood and wood-based materials (plywood, particle board) and plastics.Sawdust discharge through a spigot suitable for connection to a vacuum cleaner or extractor.
CONSTRUCTION TABLE WOOD CUTTER
DEDRA DED7729

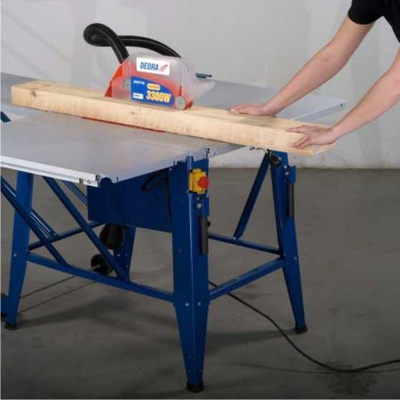

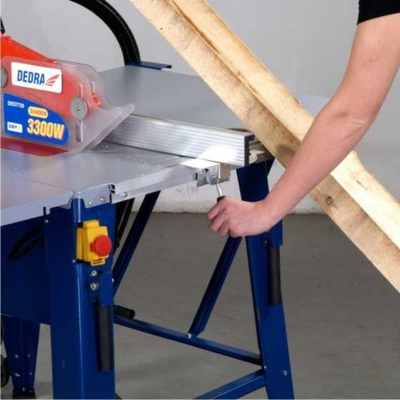

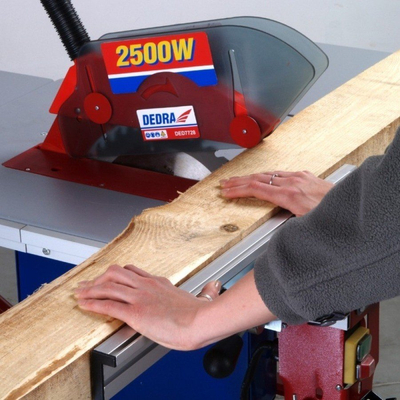

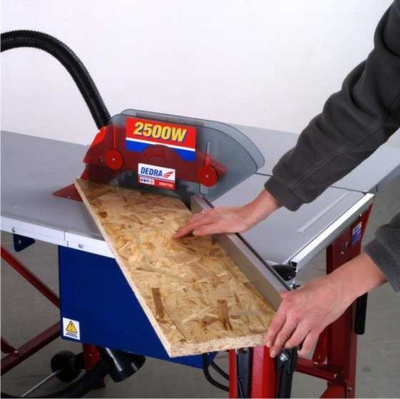

Table Saw DEDRA DED 7729 Wood cutting saw machine is a technologically advanced product designed to cut all types of wood, wood-based materials (plywood, particleboard, etc.).), plastics. A sawdust discharge system was used here. As a result, the spread of excavated material was significantly reduced during operation. The machine allows you to perform the basic operations of cutting wooden parts: longitudinal sawing, cross-sawing, mitre sawing.
The circular saw is designed for cross and longitudinal processing and beveling of wood and wood-based materials:
- boards
- chipboards
- plywood panels
- mdf
- osb boards
- scantlings
- Sawdust discharge system
- The machine allows you to perform the following operations: slitting, cross-cutting and beveling
- Solid and stable metal construction
- Additional folding top, enlarging the work surface
- Handles and casters provide easy transportation of the unit

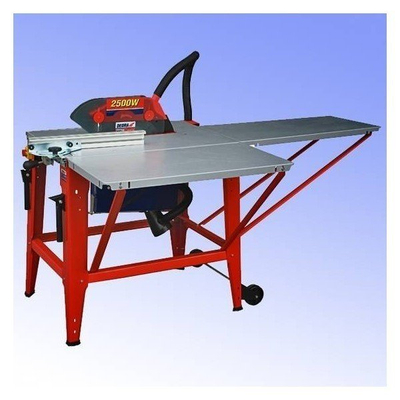

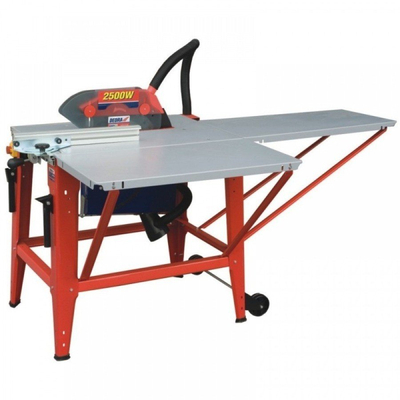

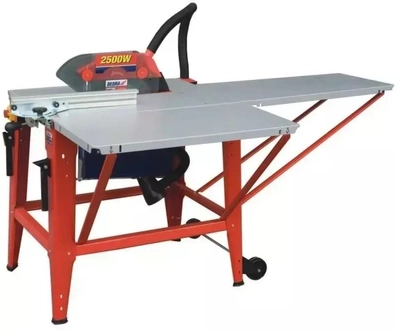

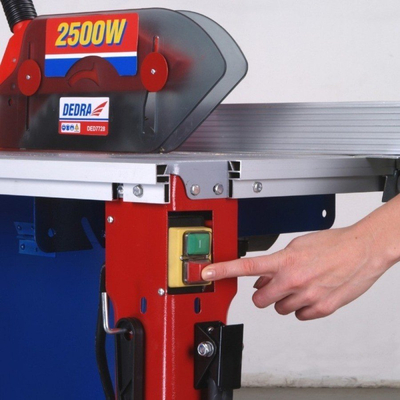

Dedra DED 7729 circular saw
Cutting all types of wood, wood-based materials (plywood, particleboard, etc.).) and plastics.
Dedra DED 7729 circular table saw for wood
Technical data:
- induction electric motor
- working voltage 380 V
- rated power 3400 watts
- disc speed 2850 rpm
- sawdust discharge system
- saw blade diameter 315 mm
- saw blade bore diameter 30 mm
- dimensions of the basic table 800 mm x 550 mm
- dimensions of additional table 800 mm x 400 mm
- maximum thickness of sawn material 82 mm
- maximum thickness of sawn material at 45 degree bevel 58 mm
- working head deflection range from 0 to 45 to the left
- diameter of extraction crimp hole 95 mm/ 30mm
- weight 60 kg
EAN product code: 5902628772909
Completion:
Tabletop drive unit- Legs (4 pcs)
- Long crossbar (2 pcs)
- Short crossbar (2 pcs)
- Supplementary top crossbar short (2 pcs)
- Supplementary top crossbar long (2 pcs)
- Long guide (1 pc)
- Additional table top (2 pcs)
- Pusher (1 pc)
- Top cover of the circular saw (1 pc)
- Running set (1 pc)
- Eccentric guide clamp with angle gauge (1 piece)
- Short guide strip (2 pcs)
- Transport handle - 2 pcs
- Extraction hose (1 piece)
- Extractor connection stub (1 piece)
- Extraction cable holder (1 piece)
- Feet (4 pcs)
- Set of bolts, washers and nuts (1 pc)
- Wrench for removing the circular saw (1 pc)
DEDRA is a reputable manufacturer of tools.Brand products DEDRA are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools.DEDRA offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround time for service orders. DEDRA implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
