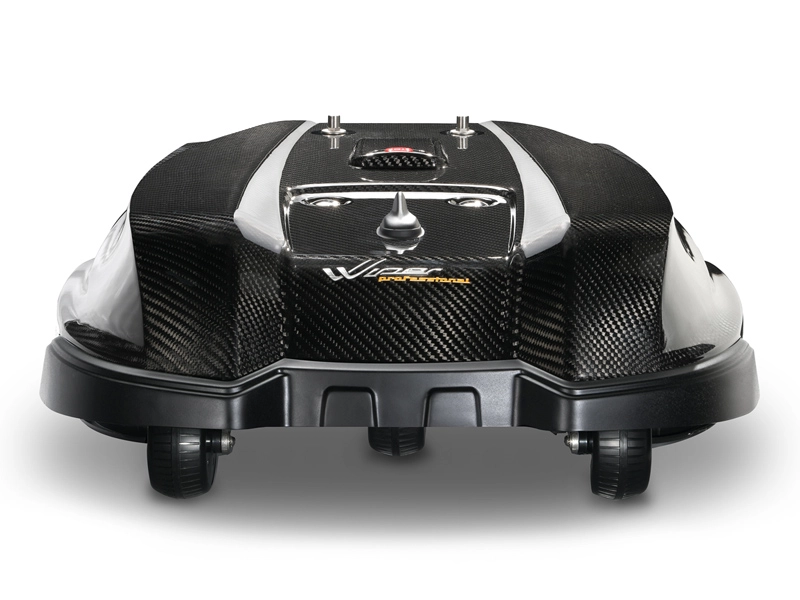

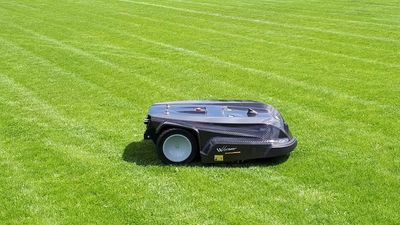

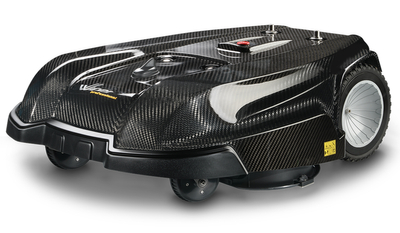

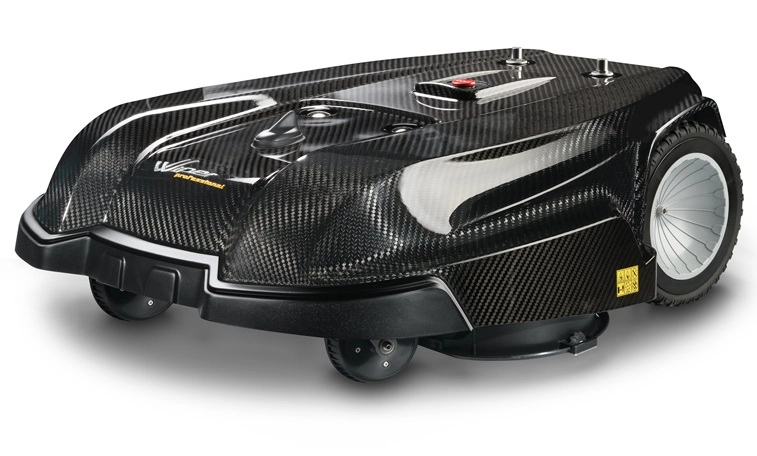

MOWING ROBOT - AUTOMATIC LAWN MOWER 20.000m2

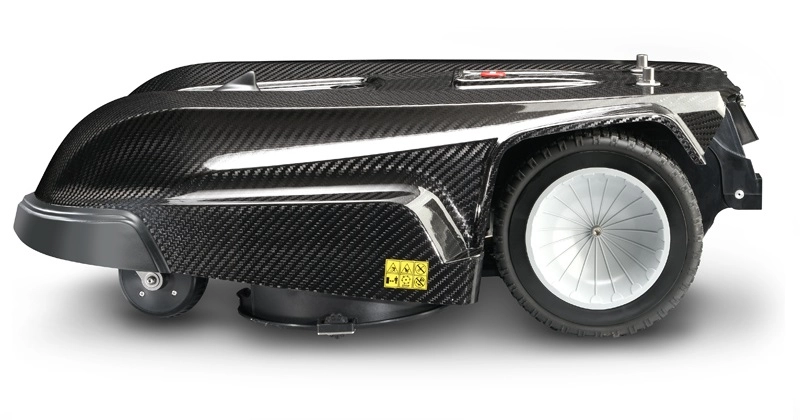

WIPER YARD 2000S

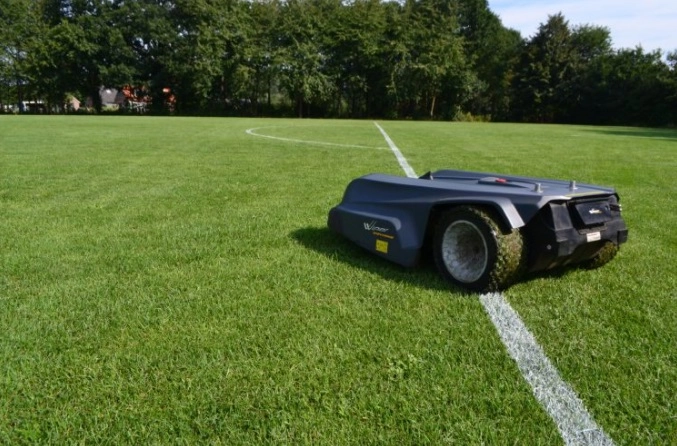

The Wiper Yard 2000S lawn robot is a machine made for mowing really large areas (up to 20000m2). With a mowing system as wide as 84 cm, which consists of three independent blades, the machine can perfectly cope with any lawn. Two drive wheels and three support wheels at the front - each responsible for a different blade, further improving mowing precision. Yard series mowing robots are specialized ones created for mowing large gardens, parks, football fields or grass airfields. This Yard 2000S model has 4 batteries and electric mowing height adjustment.
Robotic lawn mowers are advanced machines that have been created to take care of your garden while taking care of you. Daily lawn care is an absolute must if your lawn is to be lusciously green, thick and healthy. Wiper mowers in our offer, thanks to a large number of functions and innovative design, can perfectly adapt even to the very complex shape of the garden. They easily overcome slopes of up to 45%, and independently select mowing programs to make the most efficient use of working time.
The WIPER YARD 2000S mowing robot has a built-in auto-programming function that allows it to adapt to local operating conditions. With this feature, the ride-on mower does its job more efficiently, uses fewer batteries and saves its own components. It is equipped with brushless motors. It has adjustable cutting height, blade modulation, rain sensor, collision sensor, cut grass sensor, auto programming. Like all ride-on mowers in the WIPER series, the WIPER YARD 2000S gets into small, hard-to-reach areas, narrow aisles, etc. better than competitors' mowers.
Reliable, moves faster, is more versatile and can handle more work zones. It has all the advantages of simplicity and reliability . Provides careful care for your lawn of up to 20000 m2.
FEATURES : Wiper YARD 2000S robotic mower
- Manufacturer: Wiper
- Model: YARD 2000S
- Max work area: 20000m2
- Number of zones: 8
- Max permissible slope: 45%
- Battery: 4 x15Ah (1554Wh)
- Average operating time +/- 20%: 11h
- Charging time: 10h
- Bluetooth receiver: yes
- GPS -GSM module: yes
- Mowing width: 84cm 3 blades
- Mowing height adjustment: automatic
- Weight: 49kg
Quiet operation
The robot is very fast, quiet and can handle very narrow passages. Despite its small size, it is sensational in terms of effective mowing of your lawn. The lawn will be like a carpet from the store!

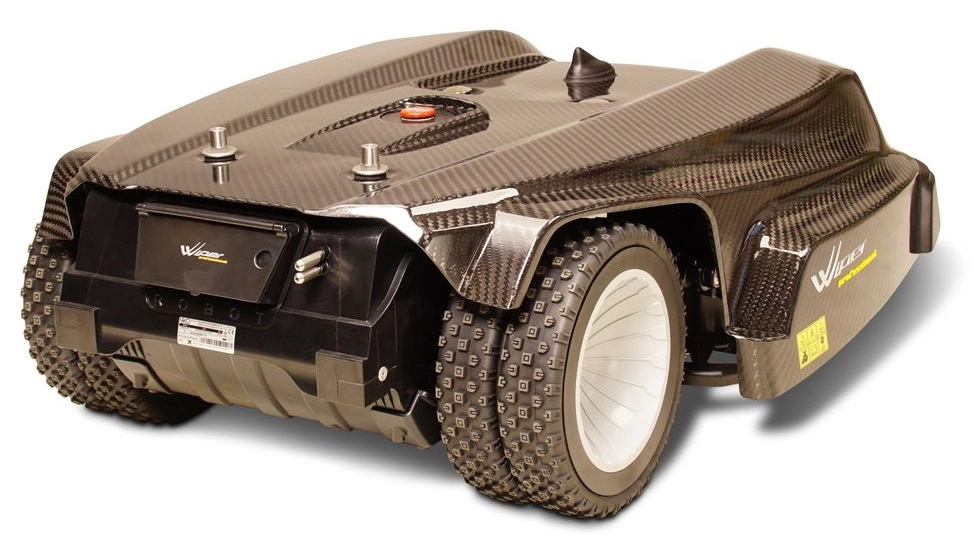

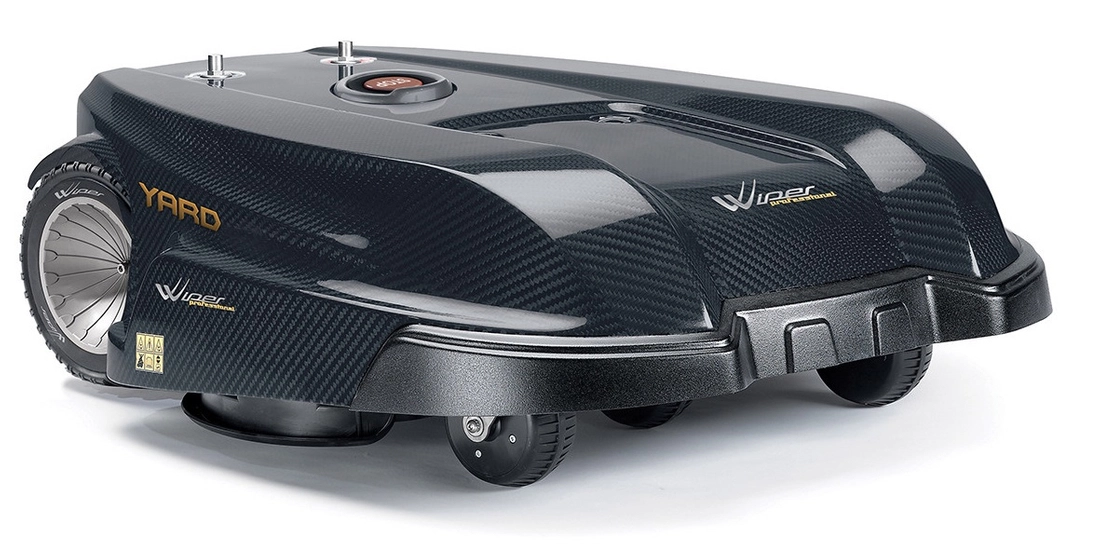

Patented Yard Series rear wheel system improves mowing of wet and soft areas. The conical design of the wheels makes their contact with the surface less on dry ground and more on wet ground , which significantly increases the device's grip, performance and reliability. The robot is equipped with three independent brushless motors of the latest generation. They allow you to manage areas of up to 20000 m2 with slopes of up to 45%.
That's not all. The cutting width of the robot is as wide as 84 cm. Yard can work independently for up to 11 hours. Mowing your lawn won't spend your sleepless nights anymore. The robot does its work automatically and quickly and more environmentally friendly. The quality of his work is also clearly discernible in less typical areas, such as clearings, groves and cemeteries.
ALWAYS UNDER CONTROL

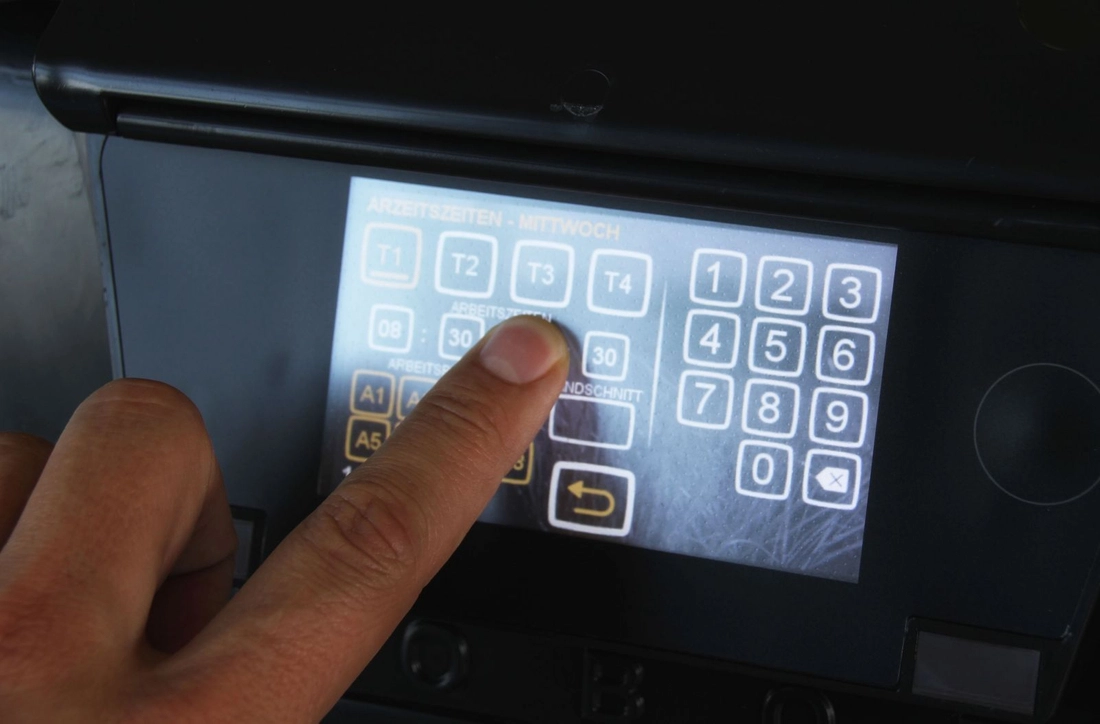

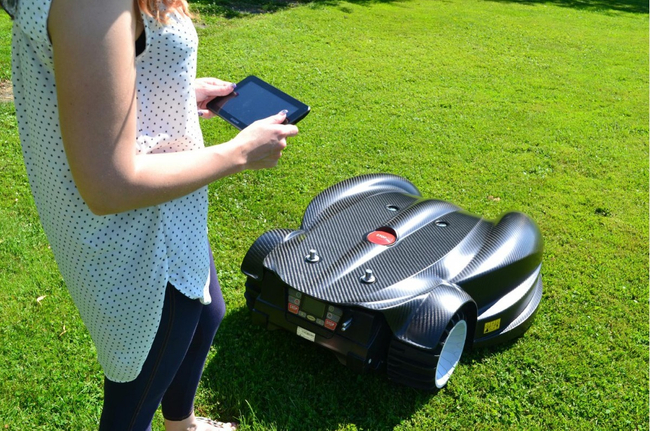

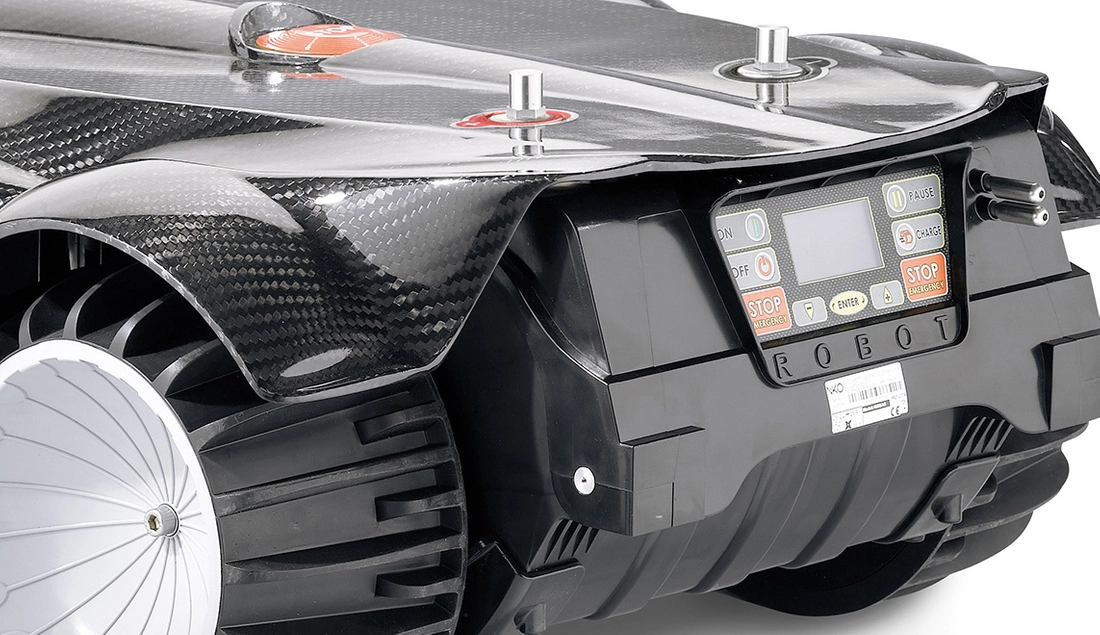

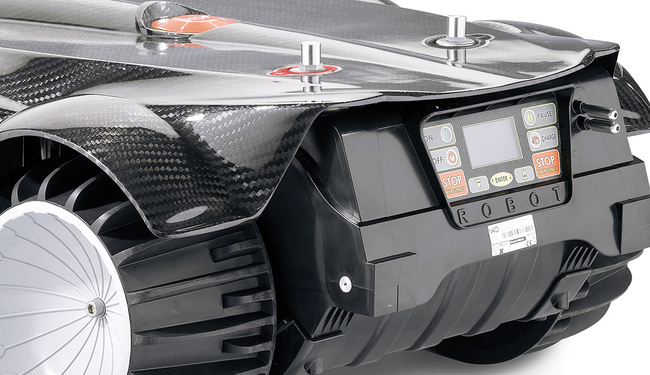

Yard is user-friendly. Intuitive control panel is located on the housing. If you are a less advanced user, consider ordering a stand-alone touch console. With Bluetooth control, it will make it easier for you to control the robot. The device can also be optionally equipped with GPS+GPRS, which will make you control it easily, quickly and at any time.
BLADE MODULATION
Mowing robot is fully automatic. Self-controls the speed of grass cutting. In this way, you optimize the cost of operation and energy consumed.
SELF-PROGRAMMING
Yard series robots themselves recognize areas of already cut grass, which will reduce the working time set in the schedule.
ACTIVE AND PASSIVE SECURITY SYSTEM
Safety first. Yard is designed to identify even small objects and protect body parts from contact with blades . The double STOP button stops the robot momentarily.
SPIRAL MOWING
The spiral mowing function will switch on automatically, depending on the density and height of the grass.
RAIN SENSOR
This is a standard part of the equipment. You can easily turn it off or put it into standby mode.
SPEED CONTROL
Easily set the robot's mode of operation. Can operate in slow, medium or fast mode. Adjusting the speed is especially important when working on slopes, as it improves wheel traction.
Technical data:
- Maximum suggested area m2 (-20%) - 20 000
- Number of zones - 8
- Maximum allowable slope (%) - 35%
- Maximum slope at perimeter wire (%) 20%
- Lithium-ion battery - 4 x 15Ah 25.9V
- Average working time + -20% - 11:00
- Average charging time - 10:00
- Engine type - Brushless

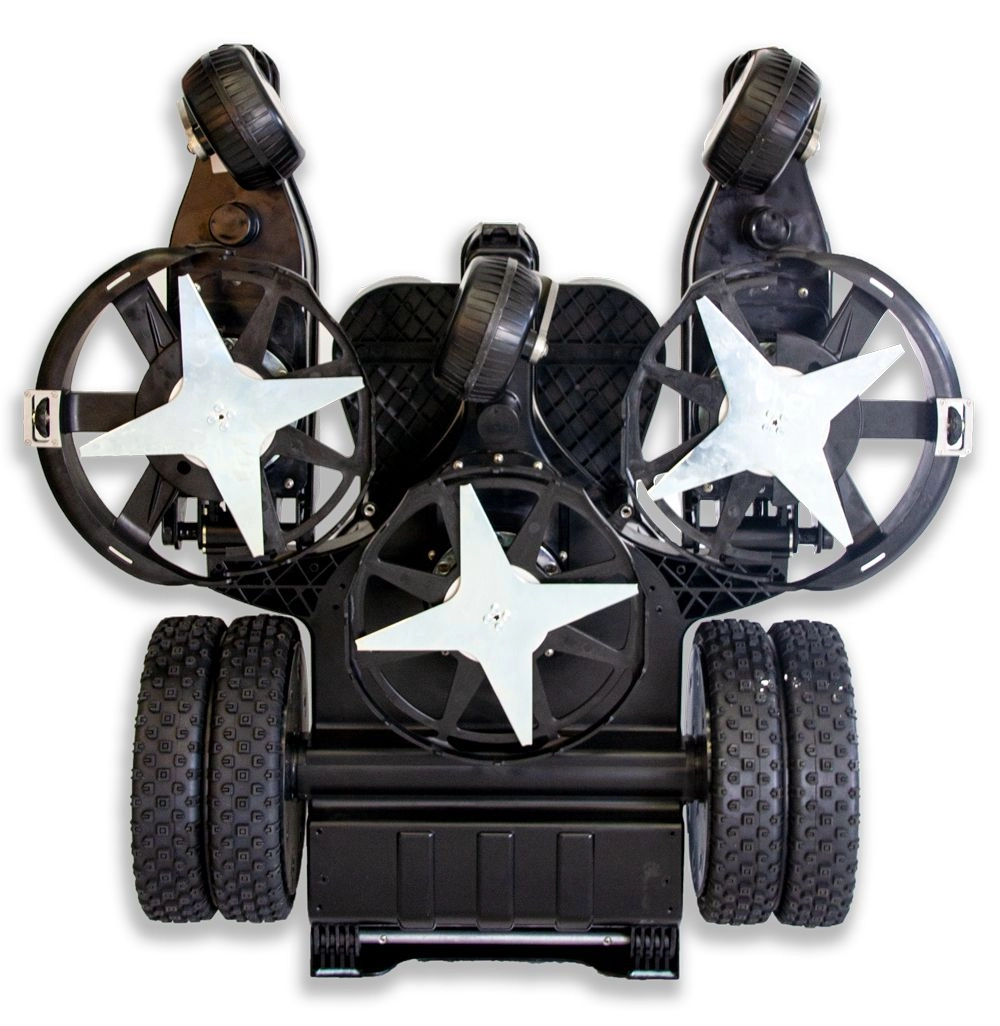

- Mowing width - 84cm/ 3 disks of 29cm each/ 4-armed knife
- Mowing height - 25-85cm
- Mowing height adjustment- manual
- Rain sensor - YES
- Wheel tread - classic
- Rain sensor - YES
- Eco mode (custom program) - YES
- Mowing "smart areas" - YES
- Spiral mowing system - YES
- Compass - YES
- GPS - YES
- Bluetooth - YES
- SMS notification - not
- App connectivity: BLUETOOTH, GSM
- User interface: touchscreen display
- PIN code: yes
- Geo-fencing: yes
- Elevation sensor: yes
- Emergency switch: yes

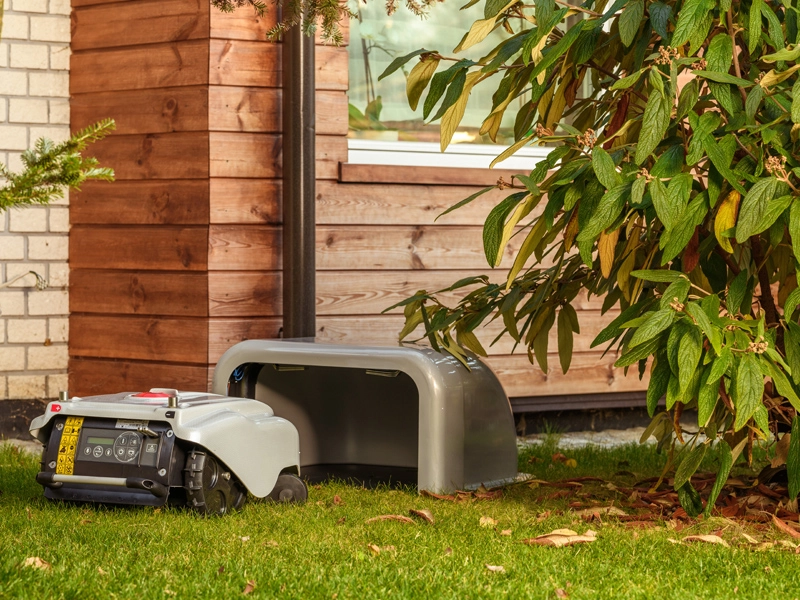

- Charging station cover: optionally
- Protection level: IP21
- Weight with battery: 49kg
- Noise level: 65dB(A)
How long the Wiper YARD 2000S is able to operate on a single battery charge?
Battery installed in the device with a capacity of 4 x15Ah (1554Wh) allows the robot to work for 11 hours continuously. After this time, the device will return to the docking station, after which - if necessary - mowing can be resumed.
Does the Wiper YARD 2000S require frequent maintenance?
Due to the robot's design, which is conducive to the automatic cleaning process, the steps involved in caring for the device are kept to a minimum. There is no question of clearing the grass from the mower or having to rake the garden after every time you finish mowing. The only maintenance we should remember is to regularly replace the mowing blades. The fact that they are made of extremely durable materials means that we will perform this activity no more often than once a year - even when the mower encounters more challenging obstacles on its way, such as sticks or cones.
How to mount the Wiper YARD 2000S robot
Self-assembly of the robotic mower is extremely easy. The user, together with the robot, receives a very simple and clear manual and, above all, all the accessories for its assembly. In the first step, it is necessary to determine a suitable place for the installation of the base of the mowing robot, and in the second step it is necessary to distribute around the lawn a loop of signal cable, which is nailed to the ground with special pins or dug 2.5-7 cm deep.
Intelligent mowing
You don't have to think about turning on the mower every time you want the grass to be cut. Our automatic lawn mowers, with their innovative features, will take care of your lawn by themselves. Set your mowing schedule and the Wiper mowing robot will do the rest for you.
The perfect cut
Mowing robots Wiper YARD 2000S are equipped with specially designed blades, perfectly cutting the blade of grass. In addition, the motor adjusts the blade speed according to the conditions in the garden to make the most efficient use of energy.
Intelligent mowing system
Wiper automatic mowers choose their own way of mowing. If the grass is low, the robot mows according to the calculated algorithm, bouncing around the bounding loop, but if it detects high grass, it starts mowing in a spiral to make even more efficient use of time and energy.
Set up multiple work zones
Depending on the model of the Wiper robotic mower, you can set from 4 to 8 work zones, so you can configure your mower perfectly. Additional mowing zones will help the mower reach hard-to-reach parts of the garden separated, for example, by a narrow passage.

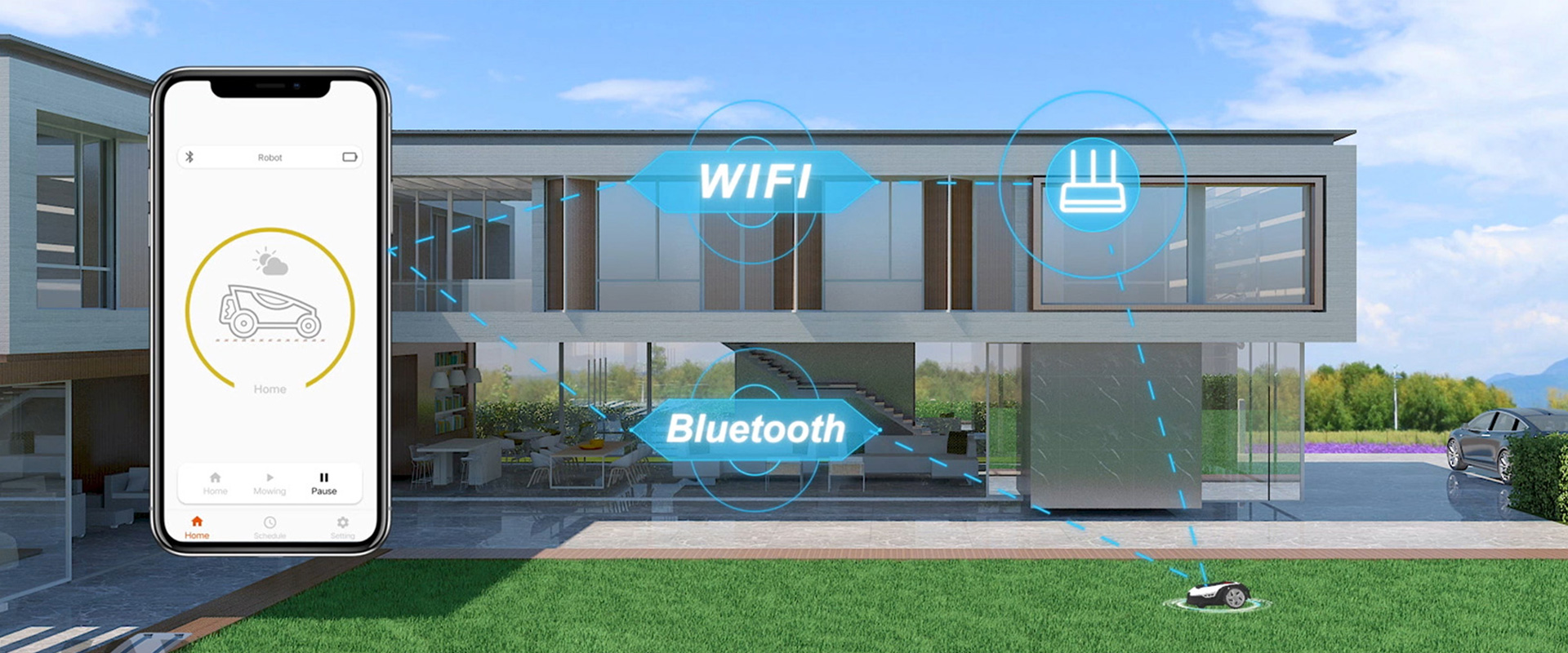

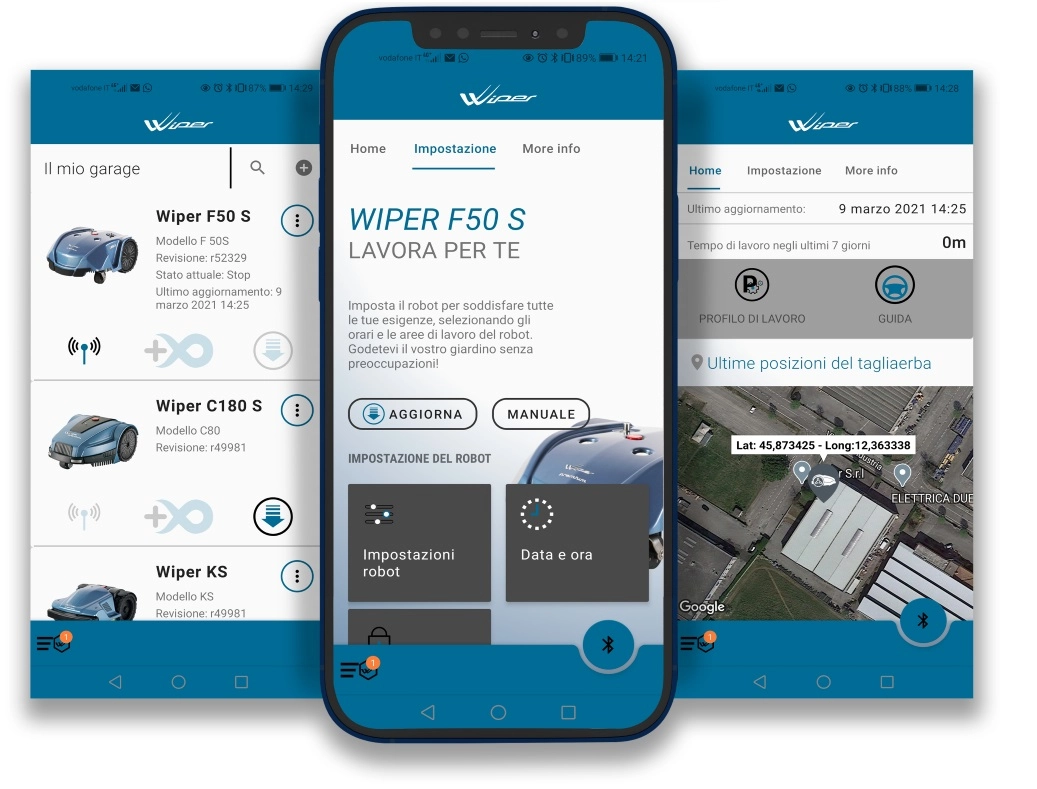

My Robot Wiper app
Stay in touch with your Wiper robotic mower all the time with the "My robot Wiper" app available for Android and iOS. Using the app, you can change the robot's settings and are informed of what the Wiper robotic mower is doing at any given time. In the IKE model, communication via Bluetooth connectivity.
Control from your phone
- Send to mow
- Return to base
- Set your mowing schedule
- Manage multiple zones
- Manual control
Notifications
- State of charge
- Operation times
- Operational and security alerts.
CEDRUS Extended Warranty for 2 Years
WARRANTY AND SERVICE CONDITIONS
- In the event of a complaint, report the defect to the Seller or Authorized Service Point of the manufacturer of the device in question.
- Detailed Warranty Terms and Conditions can be found in the user manual
Warranty terms and conditions
1. The warranty is provided by Cedrus Joint Stock Company for a period of 24 months from the date of sale for consumer purchases or for 12 months from the date of sale in other cases.
The warranty covers goods/devices purchased on the territory of the Republic of Poland. Entitlements under this warranty do not extend to other claims relating to
damage to the goods/device and claims for loss of profits or incurred costs resulting from damage to the goods/device.
2. For extended warranties of some manufacturers beyond 24 months, annual service inspections are required (annotations in the warranty card):
- weibang mowers 60 months,
- cedrus tractors, Simplicity 36 months,
- ariens zero-turn tractors Edge series 24 months or 150 hours, Ikon Xd 36 months or 300 hours, Apex 48 months or 500 hours (whichever comes first),Zenith 48 months or 750 hours (whichever comes first)
- ferris tractors 24 months unlimited hours, 48 months or 500 hours (whichever comes first). Drive belts, tires, brake pads, batteries, knives
are guaranteed for 90 days. the 2-belt drivetrain used on IS 6200, ISX 3300, IS 3200Z, ISX 2200, IS 2100Z and ISX 800 models is warranted for 36 months or 300 hours (the warranty covers parts and labor in the first year, only parts in the second and third years). Coilover shock absorbers and all suspension related components are warranted for 60 months with no limit on hours.
Knife drive belts on FW35, FM35, SRSZ1 models are warranted for 12 months or 100 hours.
- pubert soilers with Honda engine 60 months,
- cedrus mowers with Kawasaki engine 36 months,
- wiper robotic mowers: Trekker series 72 months (annotated in the warranty card and Wiper service application).
3. For equipment with extended warranties from some manufacturers, the warranty for motors (manufacturer) and gearboxes is 24 months consumer purchase or 12 months in the
other cases.
4. Warranty repair is understood to be activities of a specialized nature appropriate for the removal of a physical defect covered by the warranty.
5. Warranty is not covered:
(a) parts subject to normal wear and tear:
- components of the cutting system (guides, chains, adapters, knives, wheels, discs, drills, grinding wheels, holders of components),
- cables: starter, drive, brake, adjustment cables,
- drive components (clutch drums, clutches drive wheels, drive shafts, pulleys, V-belts and toothed belts, equipment running wheels),
- filters for air, oil, fuel, water, hydraulic fluids,
- spark plugs, ignition wires, springs, rubber dampers, diaphragms, nozzles and carburetor valves,
- electrical wires, brushes, brush-holders, fuses, light bulbs, manual and electric starters.
b) damage resulting from the use of oils other than those recommended by Cedrus Joint Stock Company and the manufacturer (applies to 2-stroke as well as 4-stroke engines).
(c) damage caused by the use of fuel, low-quality mixture.
d) damage that occurred as a result of repairs outside the service network of Cedrus Joint Stock Company.
(e) mechanical, thermal, chemical and all other damages caused by an act or omission by the User.
f) damage caused by natural partial or complete wear and tear in accordance with the characteristics or intended use of the equipment.
(g) damage caused by failure to follow the manufacturer's recommendations from the operating instructions and service messages.
(h) damage resulting from:
- alterations, repairs and structural changes made by the User,
- improper or inconsistent with the instructions for installation, use, lack of care for the equipment (use of non-original materials),
- transportation.
(i) intentional damage to equipment.
(j) maintenance activities - cleaning, replacement of consumables, service inspections.
6. Batteries are guaranteed for a period of 6 months.
7. Repairs and inspections of the equipment should be carried out in the service network of Cedrus Joint Stock Company.
8. The warranty for the parts used in the repair of the so-called "inserted parts" is given for a period of 6 months.
9. The complainant has the right to exchange the goods/device for a new one in the event that the Authorized Service Center determines in writing that removal of the defect is impossible or economically unreasonable.
10. The complainant should deliver the goods/device to the Authorized Service Center. The goods/device under complaint should be complete and in the condition they were in at the time of damage. It should also come in a suitably protective package.
11. The Authorized Service Provider is obliged to consider the legitimacy of the complaint within 14 days from the date of delivery by the Complainant of the goods/device. In the case of recognition of the warranty, the Authorized Service Provider is obliged to perform its obligations within 30 days.
12. The warranty card must be properly filled out. Warranty rights can be exercised only upon presentation by the user of a valid warranty card and proof of purchase. Any arbitrary changes to the entries on the warranty card or making repairs on your own will void the warranty.
13. In the case of a warranty for rechargeable devices, the serial numbers of all components of the set must be entered in the warranty card.
