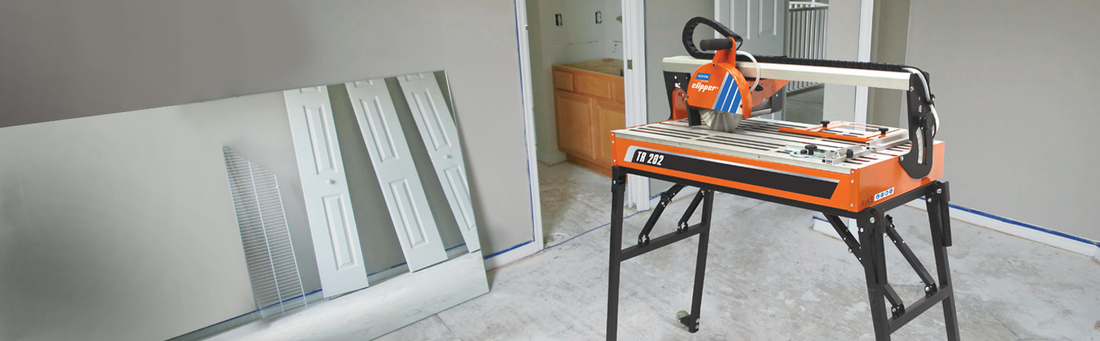

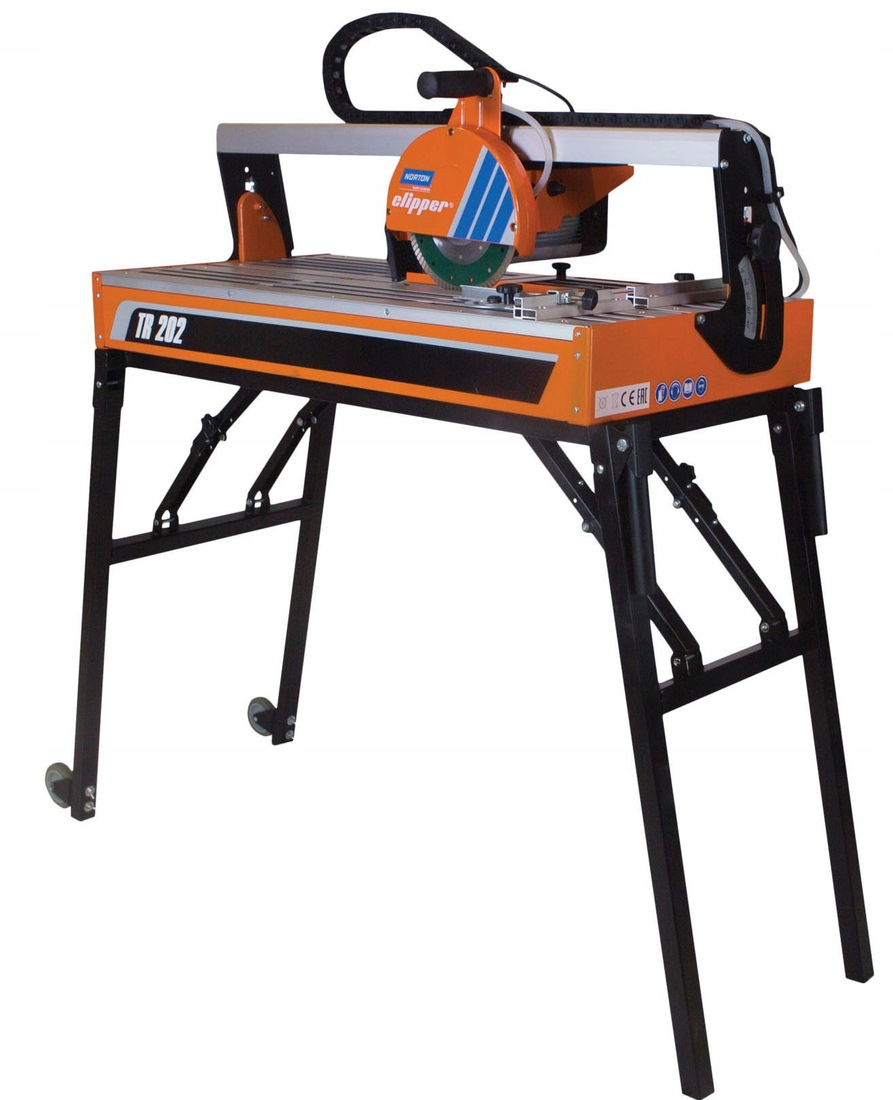

Norton Clipper TR202 Tile Cutter

with Extreme Ceram Turbo 200mm disc

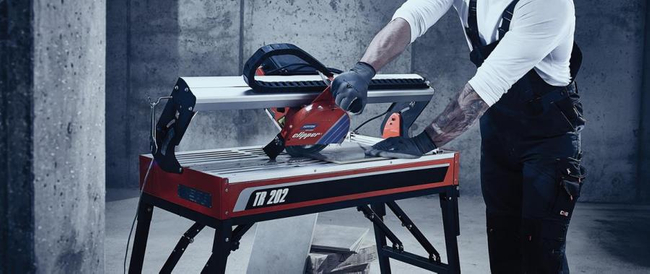

Powerful cutter TR 202 thanks to its fast and trouble-free installation, it is an excellent solution for both stationary and mobile use. With a variety of capabilities, the device works well in many applications. NORTON CLIPPER TR 202 cutter is designed for precise cutting of various sizes of concrete tiles, paving stones, marble slabs, concrete slabs, bricks and tiles of all kinds. Seamlessly adjustable bevel cut, double bevel cut and Jolly cut. Thanks to the built-in cooling pump, cooling of the diamond blade and dust-free operation is ensured. Inclined head allows trouble-free processing of workpieces up to 650 mm long.

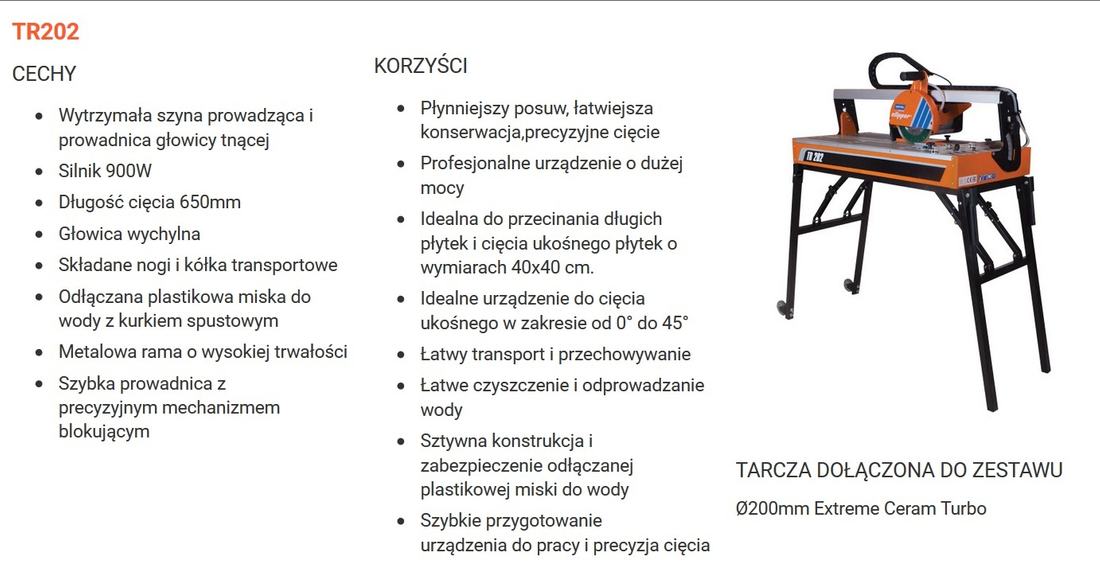

BENEFITS - Norton Clipper TR202 Tile Cutter

• Smoother feed, easier maintenance, precise cutting.
• High-powered professional device.
• Ideal for cutting long tiles and diagonal cutting of 40x40 cm tiles.
• Ideal device for bevel cutting from 0° to 45°.
• Easy to transport and store.
• Easy cleaning and drainage.
• Rigid design and protection of detachable plastic water bowl.
• Quick set-up and cutting precision.

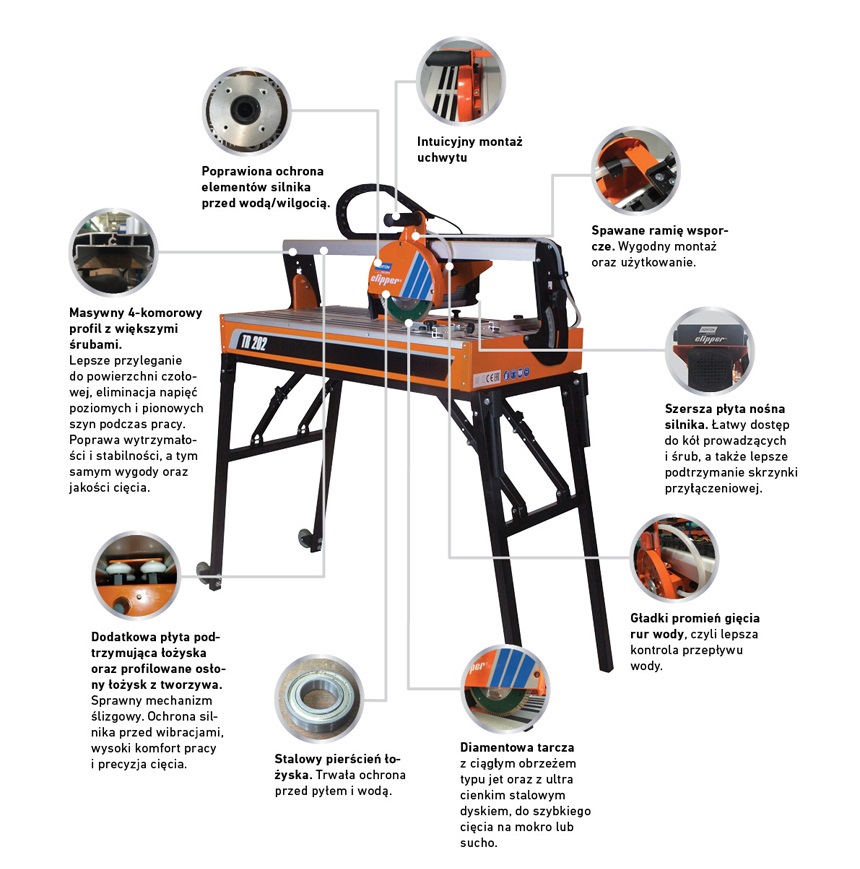

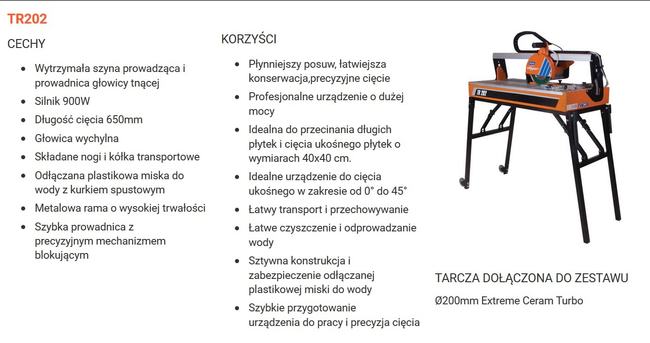

FEATURES - Norton Clipper TR202 Tile Cutter

• Durable guide rail and cutting head guide.
• 900 W motor.
• Cutting length 650 mm.
• Swivel head.
• Folding legs and transport wheels.
• Detachable plastic water bowl with drain cock.
• Metal frame with high durability.
• High-speed guide with precision locking mechanism.

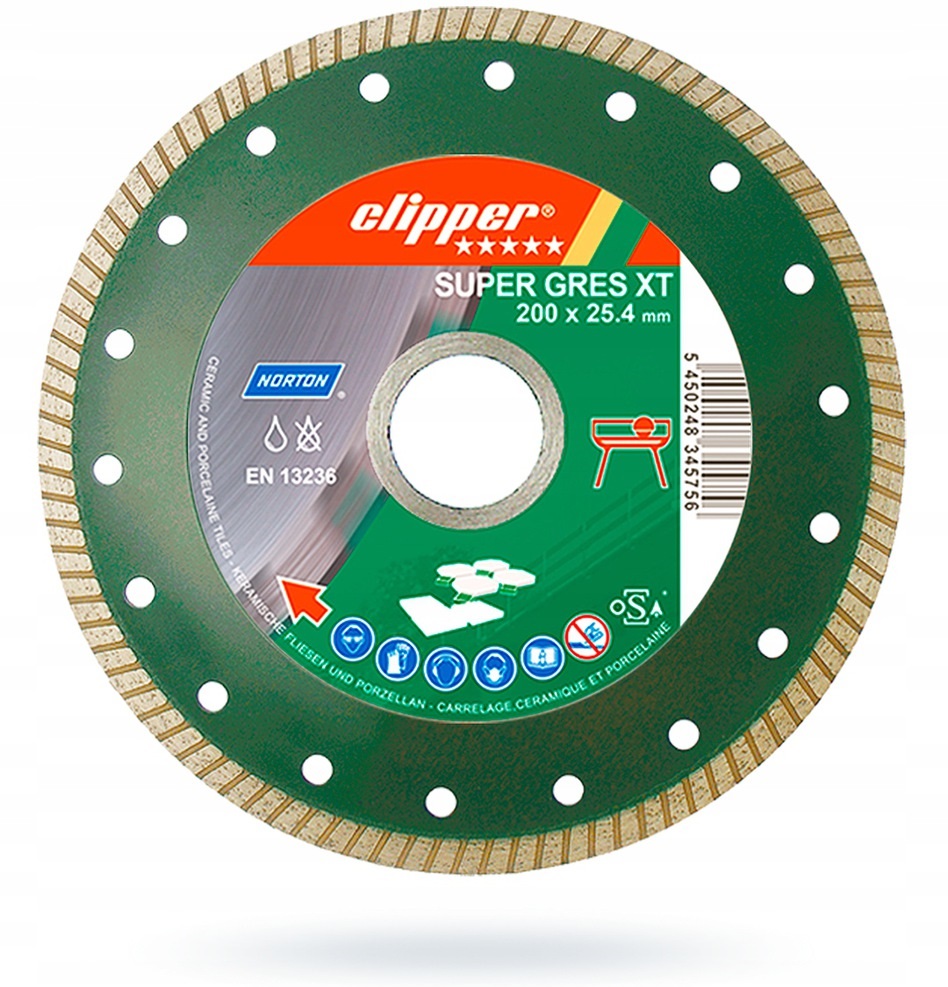

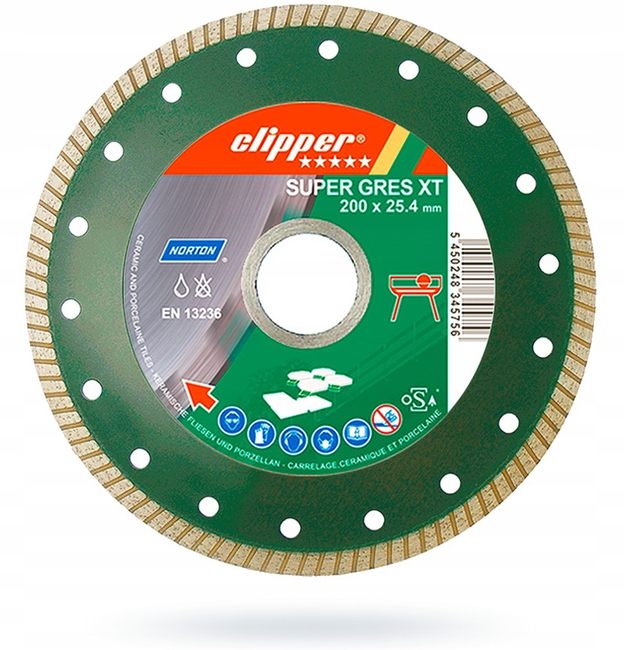

Ø200mm Clipper Extreme Ceram Turbo (SUPER GRESS XT)

MOUNTED ON THE MACHINE

Tile discs Norton Clipper Extreme Ceram Turbo are specialized tools designed to cut even the hardest ceramic and porcelain tiles. They can also cut glass, marble, terracotta, granite and other hard materials. Norton Clipper Extreme Ceram Turbo will find use on angle grinders, tile cutters and masonry cutters. Cuts made with this diamond disc are characterized by high quality. This is due to the segments with a height of 10mm, forming a continuous edge. In addition, the tool's narrow width has the benefit that material loss during operation is minimal. Norton Clipper Extreme Ceram Turbo Diamond Discs are certified by the oSa association. This means that they are fully safe for the user.

Technical specifications NORTON CLIPPER TT 202 :

• Parameter: Value
• Art. no.: 701846 01106
• EAN code 13: 5450248 699521
• Supply voltage: 230V 1~
• Power: 900W (1.2 Hp)
• Fuse/Generator: 16A / 3 kVA
• Disc and bore diameter: Ø 200 x 25.4mm
• Dimensions (L. x width. x height.): 930 x 470 x 1200mm
• Package dimensions: 1020 x 490 x 465mm
• Weight: 35kg
• Swivel head: 0 - 45º
• Maks. 90° / 45° cutting depth: 15mm / 10mm
• Maks. cutting length: 650mm
• Table dimensions: 810 x 470mm
• Maximum disc diameter: 200 mm
• Bore diameter: 25.4 mm
• Maximum material dimensions: 600 x 600 x 200 mm
• Maximum material weight: 15 kg
• Maximum cutting height 0º: 20 mm
• Maximum cutting height of 45º: 20 mm
• Maximum depth of cut at 90º: 15 mm
• Maximum depth of cut at 45º angle: 10 mm
• Flange diameter: 70 mm
• Device dimensions (DxSxW): 930 x 470 x 1200 mm
• Weight - set: 35 kg
• Weight in working configuration (including water): 45 kg
• Manufacturer: NORTON
• Speed (rpm)./min): 2950 min-1
• Hand/arm vibration: < 2.5 m/s²
• Sound power level / sound pressure: 80 dB (A) / 72 dB (A)

• Norton Clipper 70184601106 is a professional high-powered and high-performance cutting machine.
• It is designed to cut through many types of tiles, building materials and refractory products, wet or dry. Cannot be used for cutting wood and metal.
• Cuts through materials with a maximum size of 600 x 600 x 20 mm and a weight of less than 15 kg.
• TR202 is ideal for cutting long 40 x 40 cm tiles.
• It will be perfect for bevel cutting from 0º to 45º.
• It is quickly prepared. Transport wheels make it easy to carry to the construction site.
• Durable steel and aluminum frame provides adequate rigidity and structural strength.
• Four extendable legs guarantee stability while working.

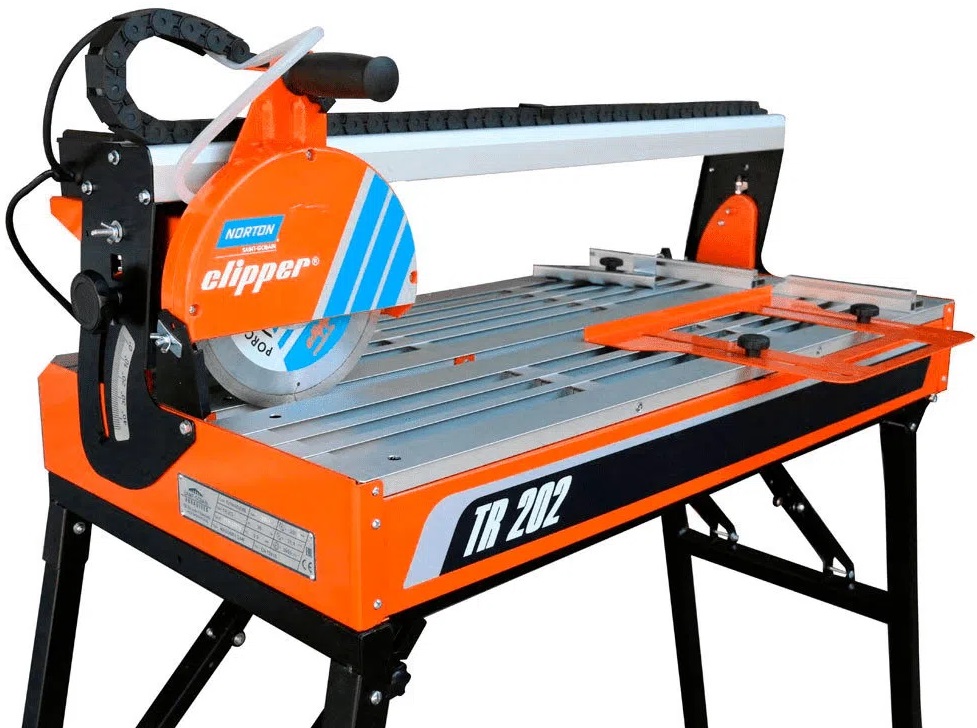

• The cutter console consists of the electric motor, guides and blade guard.
• The head has a smooth feed, and it can be tilted, making it possible to make cuts at a 45-degree angle.
• It is designed to handle Norton Clipper diamond discs with a maximum diameter of 200 mm.
• Blade guard provides safe operation and increased visibility of the workpiece.
• The high-speed guide has a precise locking mechanism.
• TR202 is equipped with a 900 W single-phase motor. Along with the engine, the pump starts.
• Plastic suction pipe delivers water from the bowl to the cutting head.
• A removable plastic bowl that sits under the table prevents excessive water loss.
• A water nozzle located in the housing ensures adequate water flow on the disc.

NORTON Application CLIPPER TR202 :

• glazes
• terracotta
• tiles
• ceramic tiles
• marble tiles
• stoneware
• stoneware

NORTON CLIPPER is a reputable manufacturer of tools. Brand products NORTON CLIPPER are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools. NORTON CLIPPER offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders.
