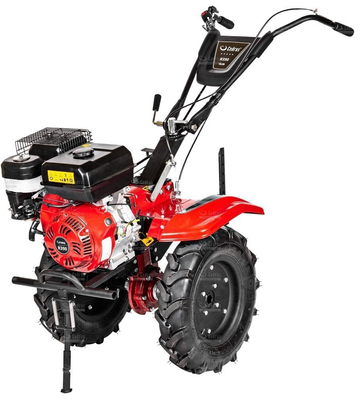

CEDRUS GL06 SPRELINAL PLOTTILLER 13hp / 135cm TRAILER + LARGE WHEELS PUSHED FOR FREE - EWIMAX - OFFICIAL DISTRIBUTOR - AUTHORIZED DEALER CEDRUS
- CEDRUS GL06 soil tiller is a useful machine when tilling soil in the garden and field. Is an equipment used to loosen and level large areas of soil. Excellent weeding and aeration of the soil.
COMBUSTION SOIL TILLER CULTIVATOR
CEDRUS GL06 135 cm
RATO R390 engine - 13 hp !
+ inflatable wheels free of charge !

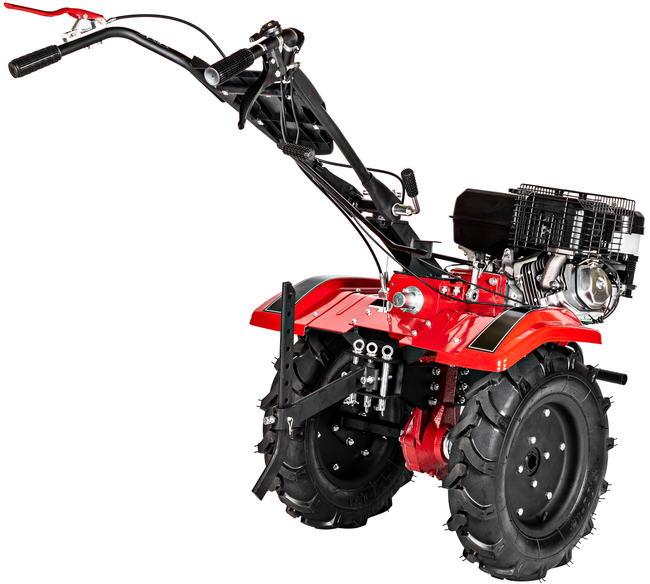

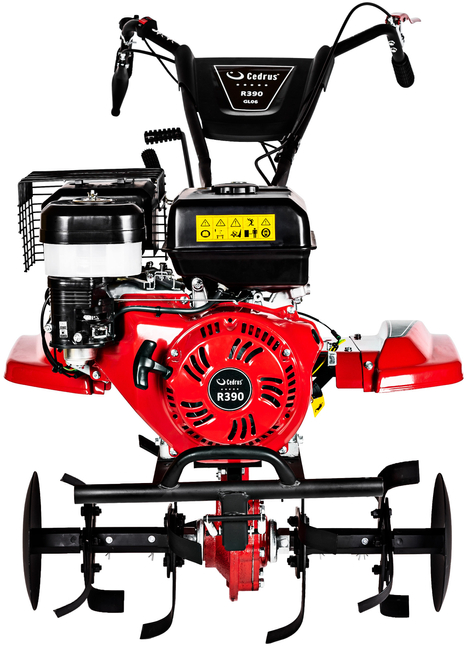

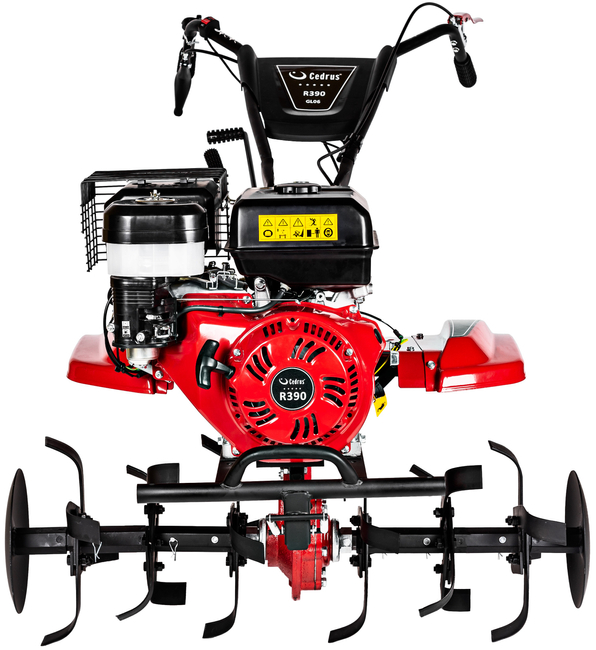

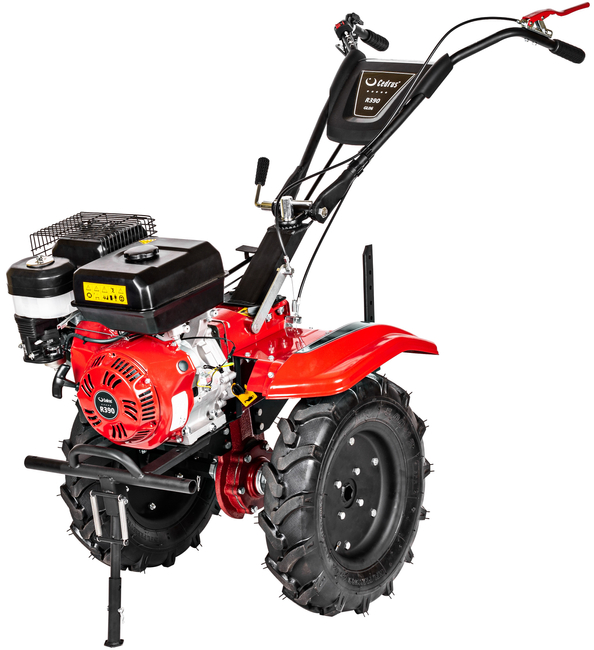

PROFESSIONAL CEDRUS GL06 PETROL ROTOVATOR
LARGE RUBBER WHEELS - 5.00-12 !

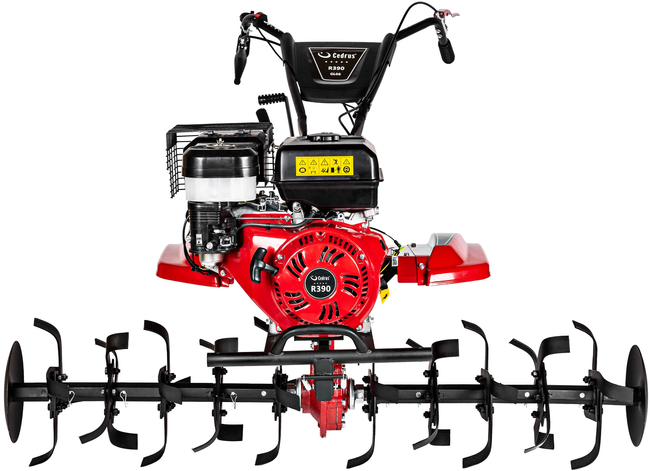

The working width of this model reaches as much as 135 cm!
MOST POWERFUL CEDRUS GL06 SOIL PLANTER - 13KM
The GL06 soil tiller is a useful machine when tilling soil in the garden and field. Is an equipment used to loosen and level large areas of soil. Excellent weeding and aeration of the soil. It is possible to install additional accessories for example, plow, double rotary plow, claw harrow, knuckle harrow, cultivator, seed drill, weeding tools, edger, scarifier, snow blade , trailer, etc.
A strong and durable solution !
PROFESSIONAL PETROL ROTOVATOR CEDRUS GL06 - POWER 13KM
+ LARGE PNEUMATIC WHEELS
+ MASSIVE WORKING KNIGES - width 135 cm
Professional Construction - POLISH BRAND
CEDRUS GL06 PETROL SOIL PLANTER
The Cedrus GL06 soil tiller is equipped with a heavy-duty motor, that will make your work in the garden easier.
The rotovator is ideal for all owners of gardens, greenhouses and vegetable gardens. The GL06 soil tiller is a top quality machine built with your needs in mind, and its powerful engine is designed for intensive use. Rato gasoline engines are equipped with a cast iron cylinder liner i transistorized ignition, which makes it easier to start.
Petrol-driven soil cultivator GL06 is easy to use, easy to maintain, durable, safe and above all reliable.
It is ideal for use in beds, foil tunnels, garden greenhouses and places where you need to cultivate the soil to a certain depth.
CEDRUS GL06 PETROL SOIL PLANTER
TECHNICAL DATA:
- Air filter: oil
- Oil sump capacity: 1,1 l
- Additional benefits: Cast iron cylinder bushing; Crankshaft ball bearings; Oil alarm; EPA standard certification
- Poj.jump.: 389 cc
- Height: 440 mm
- Length: 465 mm
- Shaft: 25.4 mm long.from the bowl 88 mm , l. undercuts 71 mm - length. working.
- Gross engine power: 13 hp
- Net engine power (according to SAE J1349*) - 10.33 HP / 7.6 kW at 3600 rpm
- Torque: 23 N.m/2500 rpm.
- Max. motor speed: 3600 rpm
- Starter: manual cable
- Torque: 23.0 Nm / 2500 rpm
- Fuel tank capacity: 6,5 l
- Machine dimensions: 160 cm x 132 cm x 91 cm
- Net Weight: 122 kg
- Gear type: mechanical
- Connection type: direct
- Oil capacity in the transmission: 2.2 - 2.5 L
- Working depth: ≥ 10 cm
- Working width: 135 cm
- Max working depth: 36 cm
- Gears: 2 forward gears, 1 reverse gear
- Cooling system: air
- Fuel tank capacity: 6,5 l
- Fuel type: Gasoline
Speed:
- Fast/Fast: 10 km/h
- Slow/slow: 5 km/h

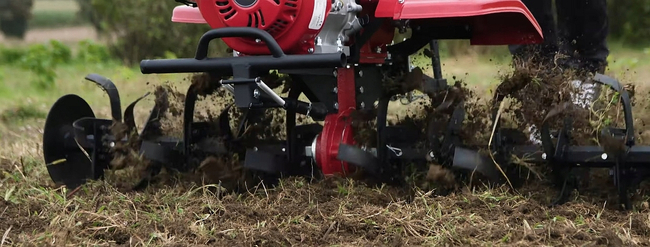

Working knives:
- Operating speed: 130 rpm
- Number of knives: 40 pcs.
- Knife distribution: 4 pcs
- Distance between knife sections: 15 cm
- Working disk diameter: 36 cm
- Knife type: Curved blade for dry soil
These powerful machines are designed and built for long reliable service.

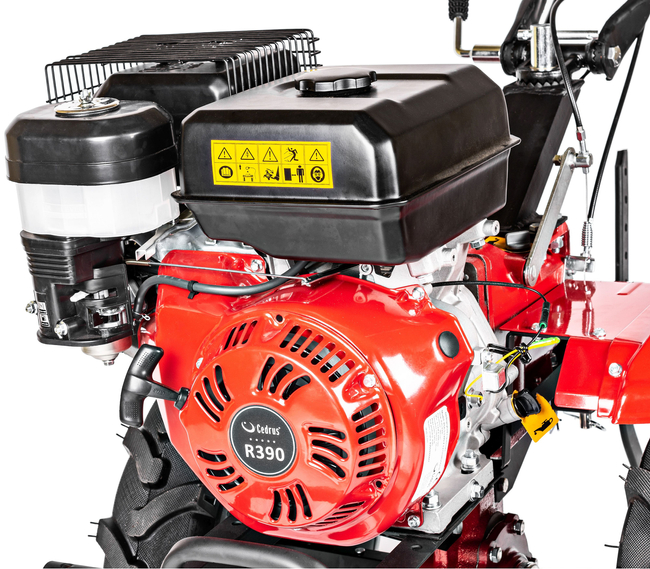

RATO R390 engine
HORIZONTAL SHAFT cylindrical ¶r. 25.4 mm
All RATO horizontal shaft engines have oil sensors, and cast iron bushings that increase the life of any engine.
- Reliability
- Extensive service network
- Availability of parts
- Price/quality ratio
Rato motors have versatile applications. Typical engines in their class suitable for: Trowels, Compactors, Rake, Lawnmowers, Cutters, Power generators, Motopumps, Vibrators, Diesel Washers, Diesel Vacuum Cleaners, Diesel Chippers, Diesel Circular Saws, and other equipment and machinery used in forestry, horticulture, construction, and road equipment.
RATO R390 engine
TECHNICAL DATA:
- Air filter: Oil
- Lubrication system capacity: 1,1 l
- Additional benefits: Cast iron cylinder bushing; Crankshaft ball bearings; Oil alarm; EPA standard certification
- Poj.jump.: 389 cc
- Height: 440 mm
- Length: 465 mm
- Shaft: 25.4 mm long.from the bowl 88 mm , l. undercuts 71 mm - length. working.
- Starter: manual cable
- Torque: 23.0 Nm / 2500 rpm
- Fuel tank capacity: 6,5 l
SET INCLUDES:
- Soiler CEDRUS GL06
- Working knives with trimming discs
- Mounting console for accessories
- Rubber wheels 5.00-12
- Metal half-shafts - SEVENTH ANGLE
- User Manual

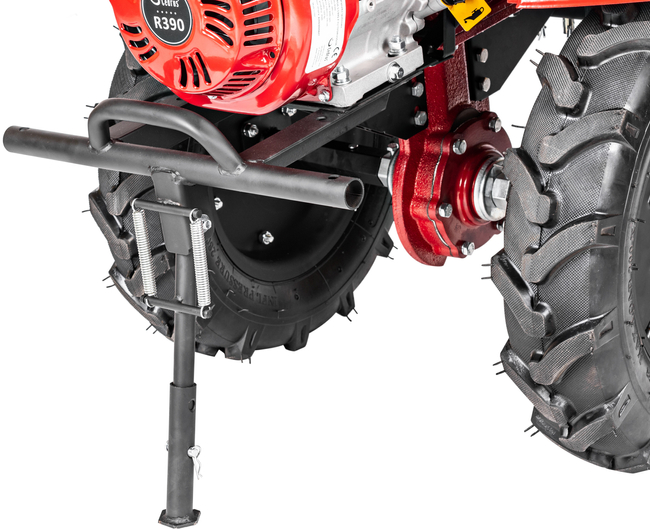

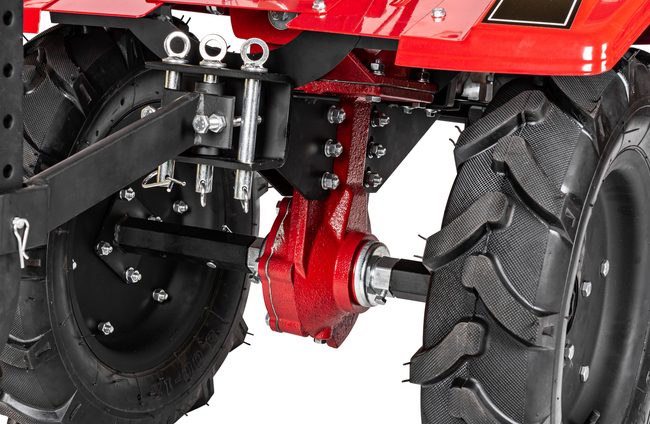

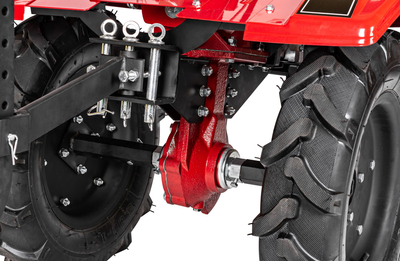

LARGE pneumatic wheels as standard! Size 5.00-12 - professionally mounted on a hexagon
The use value of the machine is increased by the possibility to purchase additional accessories (not included) available in other items:
- Adjustable plow for Cedrus GL06 soil planter - CEDRGL16 - 229 zł
- Regulated Scraper - Radło for Cedrus GL06 rotary cultivator - CEDRGL19 - PLN 599
- Two-sided rotary plow for Cedrus GL06 soil planter - CEDRGL21-£698
- Accessory Mounting Attachment Bracket - Attachment Connector for Cedrus GL06 soil planter - CEDRGL22 - PLN 123
- Auxiliary paddle wheels, metal , iron for plowing set of 2 pcs. for Cedrus GL06 soil planter - CEDRGL23 - £649
- Weeder / Adjustable raddle for Cedrus GL06 soil planter - CEDRGL25 - £639
WARRANTY AND SERVICE CONDITIONS
Goods purchased from our store are new and original and come with a full manufacturer's or importer's warranty.
When you buy Cedrus brand products from an official distributor, you get Cedrus manufacturer's full warranty on tools and gardening equipment
Cedrus Warranty
Offered by the Ewimax store - an official distributor of Cedrus tools - are subject to a full manufacturer's warranty, which provides comfort and a sense of security. Whether you choose to purchase online or in a Ewimax stationary store - you are assured of a full manufacturer's warranty.
Cedrus warranty - duration
The standard warranty period for newly purchased Cedrus brand products is 12 or 24 months from the date of purchase. Cedrus warranty period is calculated from the date of sale of the product.
Cedrus warranty 1 year
The standard one-year warranty applies to all Cedrus-branded tools, equipment and machines, available in the stationary store and online store. When you buy Cedrus brand gardening and forestry tools, you are guaranteed a one-year warranty.
Cedrus warranty 2 years
Select Cedrus brand products have an extended warranty period, up to 2 years Cedrus warranty. Detailed information on the length of the warranty period and whether the product has an extended warranty of up to 24 months can be found on the manufacturer's website.
Cedrus warranty terms and conditions
The seller's guarantee covers goods purchased using the Online Ordering System, for which a guarantee document is issued.
Detailed conditions for the implementation of the guarantee are specified in the guarantee form issued by the guarantor and given to the Purchaser at the latest together with the goods.
Complaints are processed and fulfilled only by authorized service points of CEDRUS Dealers
- In the event of a complaint, report the defect to the Seller or Authorized Service Point of the manufacturer of the device in question.
- Detailed Warranty Terms and Conditions can be found in the user manual
Warranty terms and conditions
1. The warranty is provided by Cedrus Joint Stock Company for a period of 24 months from the date of sale for consumer purchases or for 12 months from the date of sale in other cases.
The warranty covers goods/devices purchased on the territory of the Republic of Poland. Entitlements under this warranty do not extend to other claims relating to
damage to the goods/device and claims for loss of profits or incurred costs resulting from damage to the goods/device.
2. For extended warranties of some manufacturers beyond 24 months, annual service inspections are required (annotations in the warranty card):
- weibang mowers 60 months,
- cedrus tractors, Simplicity 36 months,
- ariens zero-turn tractors Edge series 24 months or 150 hours, Ikon Xd 36 months or 300 hours, Apex 48 months or 500 hours (whichever comes first),Zenith 48 months or 750 hours (whichever comes first)
- ferris tractors 24 months unlimited hours, 48 months or 500 hours (whichever comes first). Drive belts, tires, brake pads, batteries, knives
are guaranteed for 90 days. the 2-belt drivetrain used on IS 6200, ISX 3300, IS 3200Z, ISX 2200, IS 2100Z and ISX 800 models is warranted for 36 months or 300 hours (the warranty covers parts and labor in the first year, only parts in the second and third years). Coilover shock absorbers and all suspension related components are warranted for 60 months with no limit on hours.
Knife drive belts on FW35, FM35, SRSZ1 models are warranted for 12 months or 100 hours.
- pubert soilers with Honda engine 60 months,
- cedrus mowers with Kawasaki engine 36 months,
- wiper robotic mowers: Trekker series 72 months (annotated in the warranty card and Wiper service application).
3. For equipment with extended warranties from some manufacturers, the warranty for motors (manufacturer) and gearboxes is 24 months consumer purchase or 12 months in the
other cases.
4. Warranty repair is understood to be activities of a specialized nature appropriate for the removal of a physical defect covered by the warranty.
5. Warranty is not covered:
(a) parts subject to normal wear and tear:
- components of the cutting system (guides, chains, adapters, knives, wheels, discs, drills, grinding wheels, holders of components),
- cables: starter, drive, brake, adjustment cables,
- drive components (clutch drums, clutches drive wheels, drive shafts, pulleys, V-belts and toothed belts, equipment running wheels),
- filters for air, oil, fuel, water, hydraulic fluids,
- spark plugs, ignition wires, springs, rubber dampers, diaphragms, nozzles and carburetor valves,
- electrical wires, brushes, brush-holders, fuses, light bulbs, manual and electric starters.
b) damage resulting from the use of oils other than those recommended by Cedrus Joint Stock Company and the manufacturer (applies to 2-stroke as well as 4-stroke engines).
(c) damage caused by the use of fuel, low-quality mixture.
d) damage that occurred as a result of repairs outside the service network of Cedrus Joint Stock Company.
(e) mechanical, thermal, chemical and all other damages caused by an act or omission by the User.
f) damage caused by natural partial or complete wear and tear in accordance with the characteristics or intended use of the equipment.
(g) damage caused by failure to follow the manufacturer's recommendations from the operating instructions and service messages.
(h) damage resulting from:
- alterations, repairs and structural changes made by the User,
- improper or inconsistent with the instructions for installation, use, lack of care for the equipment (use of non-original materials),
- transportation.
(i) intentional damage to equipment.
(j) maintenance activities - cleaning, replacement of consumables, service inspections.
6. Batteries are guaranteed for a period of 6 months.
7. Repairs and inspections of the equipment should be carried out in the service network of Cedrus Joint Stock Company.
8. The warranty for the parts used in the repair of the so-called "inserted parts" is given for a period of 6 months.
9. The complainant has the right to exchange the goods/device for a new one in the event that the Authorized Service Center determines in writing that removal of the defect is impossible or economically unreasonable.
10. The complainant should deliver the goods/device to the Authorized Service Center. The goods/device under complaint should be complete and in the condition they were in at the time of damage. It should also come in a suitably protective package.
11. The Authorized Service Provider is obliged to consider the legitimacy of the complaint within 14 days from the date of delivery by the Complainant of the goods/device. In the case of recognition of the warranty, the Authorized Service Provider is obliged to perform its obligations within 30 days.
12. The warranty card must be properly filled out. Warranty rights can be exercised only upon presentation by the user of a valid warranty card and proof of purchase. Any arbitrary changes to the entries on the warranty card or making repairs on your own will void the warranty.
13. In the case of a warranty for rechargeable devices, the serial numbers of all components of the set must be entered in the warranty card.
I consent to the processing of my personal data in accordance with the Act of May 10, 2018 on the Protection of Personal Data (Journal of Laws of 2018. Laws of 2018, pos. 1000) and in accordance with Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016. on the protection of individuals with regard to the processing of personal data and on the free movement of such data and the repeal of Directive 95/46/EC (RODO).
