MAAD ZW-1300/0.8/EL 1-PHASE ELECTRIC COOLING WALKER MAAD ZW-1300 /0.8mm EL

ROLLING MILL SHEET METAL ROLLERS

MAAD ZW-1300/0.8/EL with electric drive

1-PHASE

MAAD ZW-1300/0.8/EL machine ideally suited for roofing flashings such as roof gutters and downpipes. Thanks to the use of proven and durable technical solutions, the machine can be used for many years without breakdowns.Coiling machine ZW-1300/0,8/el is a machine used for coiling, winding cylindrical tubes, low convergence conical tubes, gutters and all kinds of metal sheets up to 0,80 mm thickness and tensile strength Rm to 400 MPa.

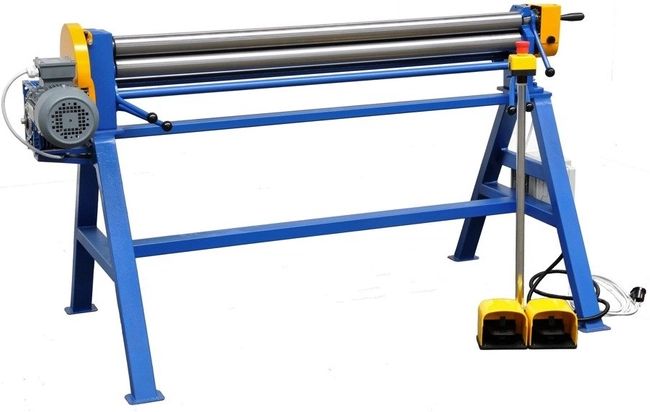

The main working elements of the coiler are 3 shafts. Two of them located in the front part of the machine (upper and lower) perform the function of pulling in the rolled sheet metal. The third, at the back of the device, the so-called loose thanks to the adjustable position gives the appropriate diameter of the sheet to be processed. Thanks to the additional milling in the upper shaft, it is possible to make drain pipe locks on the coiler. Detachable top shaft on one side for quick removal of the workpiece. The use of an additional chain transmission in the reel that drives the slack shaft improves the performance during reeling.

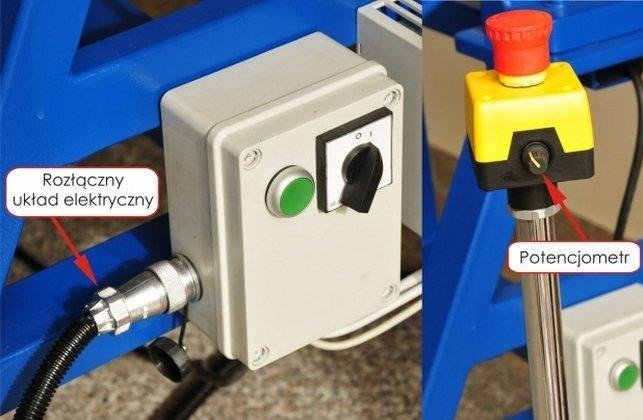

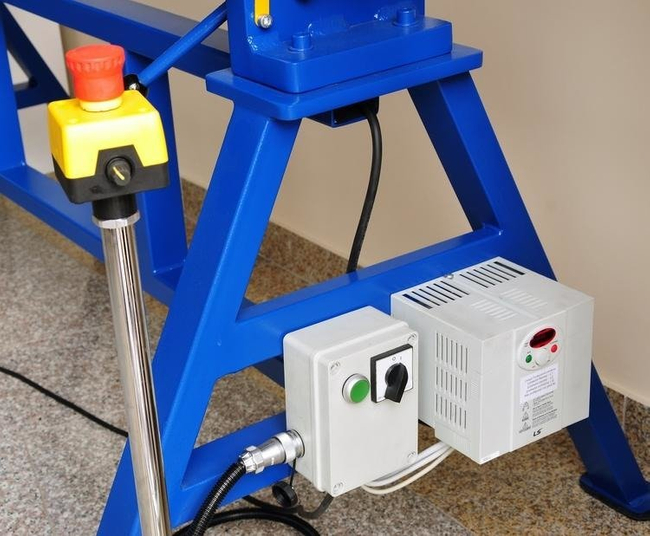

The use of an inverter in the electrical system allows for stepless adjustment of the speed of the working shafts from the inverter's faceplate or with a potentiometer located at the machine's control pedals (which engage the left and right speeds). Three-phase power is not needed to drive the coiler - the power supply is single-phase voltage 230 V.

The machine is equipped with a safety switch and has a declaration of conformity with European Union standards.

Technical parameters:

• Max. sheet thickness: 0.8 mm for Rm < 400 MPa
• Motor power: 1.1 kW
• Geared motor transmission: 1:30
• Machine power supply: single-phase
• Speed of upper and lower shafts: 0 - 24 rpm
• Feed speed of the sheet to be processed: 0 - 4.5 m/min
• Maximum sheet width: 1,250 mm
• Diameter of working shafts: 60 mm
• Minimum diameter of the rolled sheet: 80 mm
• Weight: 140 kg

Machine dimensions:

• height - 1,100 mm
• width - 1,800 mm
• depth - 700 mm

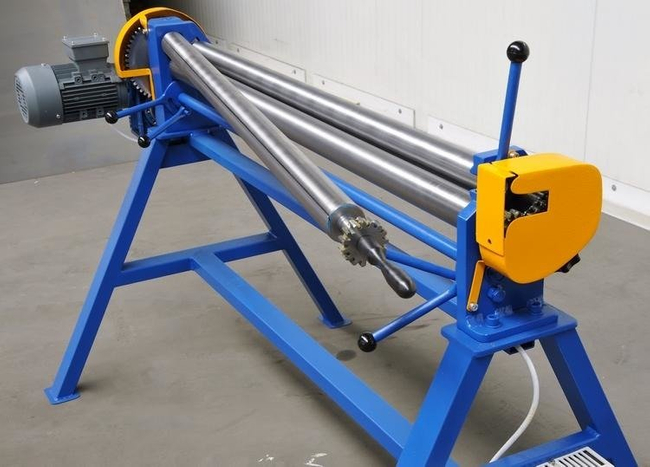

Upper removable shaft with milled groove.

• CE SIGN
• Left and right turns
• Adjustable speed through the use of an inverter 0-50 rpm./min

• Emergency stop
• Use of branded components

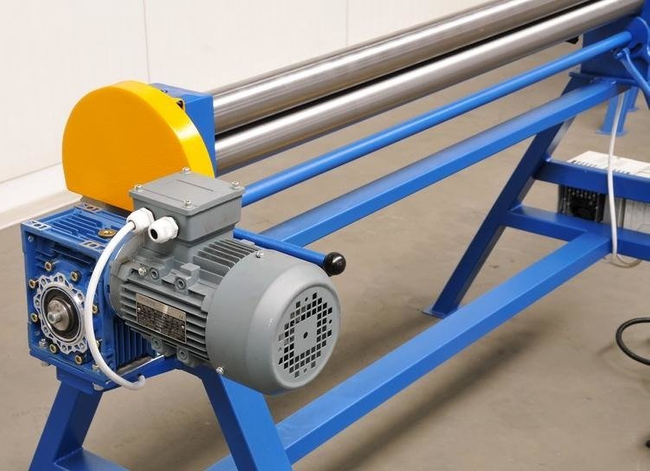

• Motor power 1.1 kW, 1400 rpm./min

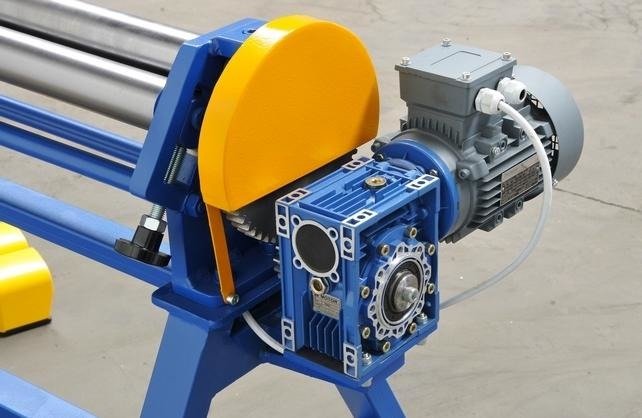

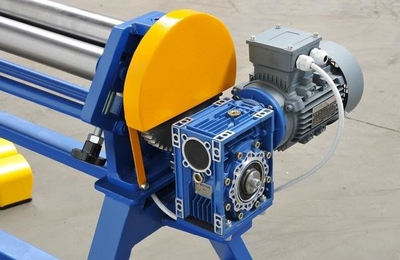

• Worm reducer

Components of the coiler are made on precision CNC machine tools.

The coiler is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
