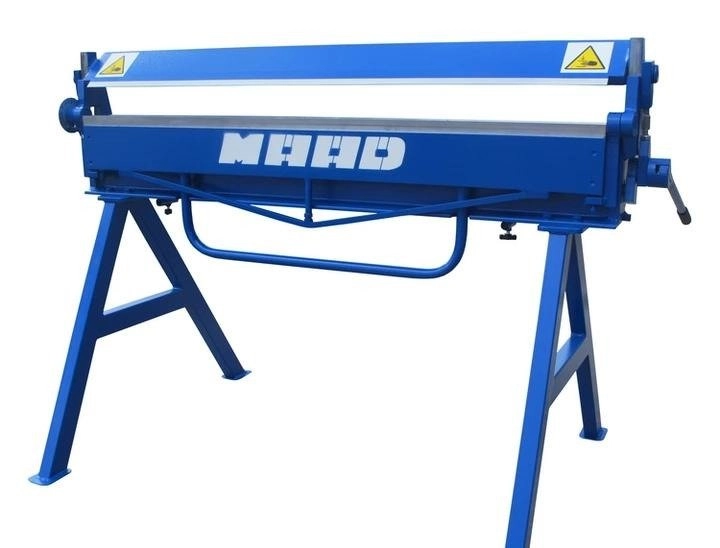

MAAD ZG-1400/2.0 BENDING MACHINE ROOFING SHEET METAL BENDER MAAD ZG-1400/2.0

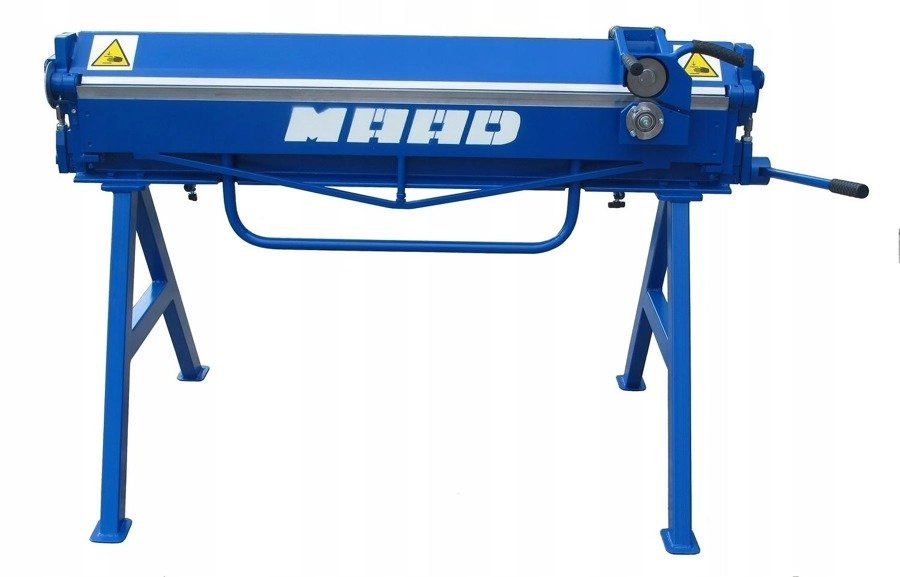

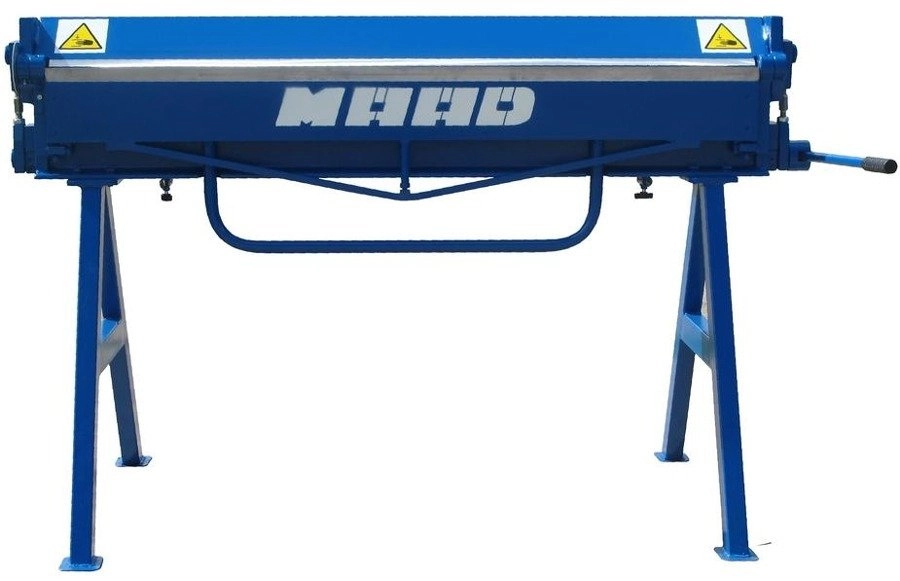

- The MAAD ZG-1400/2.0 bending machine is a reinforced version of the MAAD ZG-1400/1.5 model. The machine has a more massive body, bending beam and pressure beam. The machine allows bending of metal sheets up to 2.0 mm thick up to 135°.
MAAD ZG-1400/2.0 bending machine is a reinforced version of MAAD ZG-1400/1.5 The machine has a more massive body, bending beam and pressure beam. The machine allows bending of sheet metal up to 2.0mm thick up to 135°. The bender has an actuator that assists in lifting the pressure bar, thus allowing it to be placed anywhere without holding it down.Small size, compact design, mobility, stability, high quality workmanship, are just some of the many advantages of the ZG-1400/2.0 bending machine Maximum bending angle up to 135 degrees. Bent sheet thickness up to 2.0 mm with a bending beam of only 25 mm working width!
The advantage of the machine is versatility, thanks to its small size, compact design and narrow bending beam - only 25 mm!
The machine, in addition to the standard gas springs at the pressure beam, has one additional gas spring supporting the bending beam with a force of 850 N. More massive and strengthened side mechanisms of the machine (the use of mechanisms 40% larger compared to the bending machine ZG-1400/1.5) and the cross-sections of the working beams of the bending machine allow bending of steel sheet up to 2.0 mm thick for yield strength up to 400 MPa. Despite its small size, the machine has a weight of as much as 230 kg, which is one of its most important advantages!
Technical parameters/equipment:
- - working width - 1400 mm
- - max. thickness of the bent sheet - 2.0 mm ( for Rm<400MPa )
- - width of the bending beam - 25 mm
- - maximum bending angle - 135 degrees
- - weight of the machine - 230 kg
- - Shears of Circular (optional)
- - detachable legs - makes transportation and loading much easier
- - rack worn on the back of the machine to support the sheet metal
- - gauges for cutting sheet metal
- - protractor as standard equipment
- - gas cylinder to assist in lifting the pressure beam
Machine dimensions:
- height - 1,065 mm
- width - 1,670 mm
- depth - 930 mm

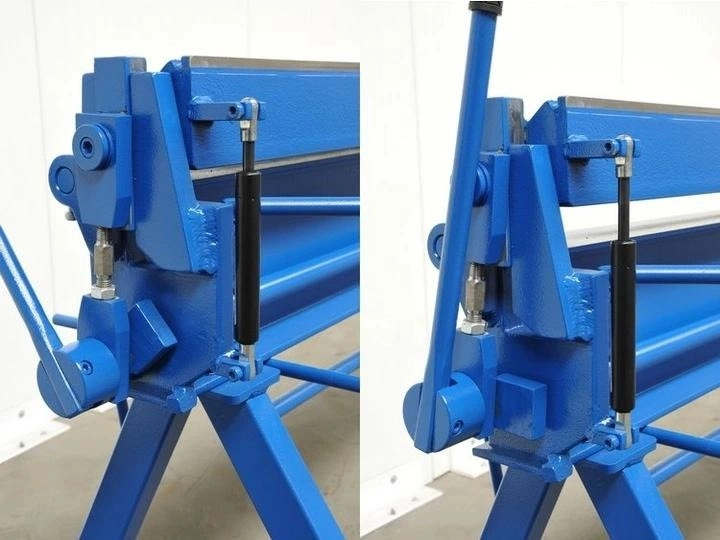

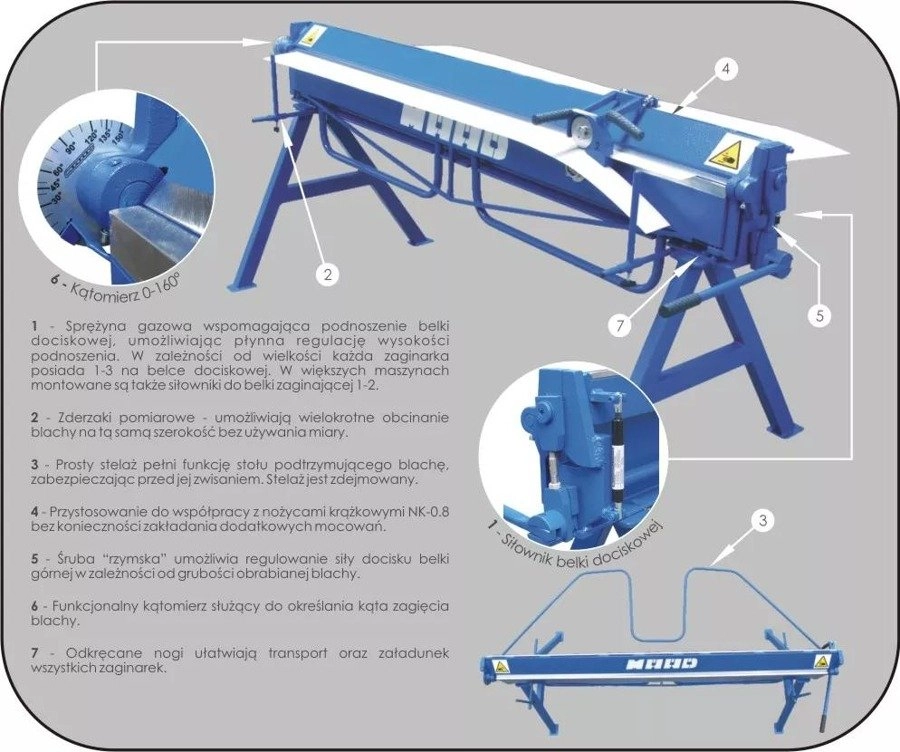

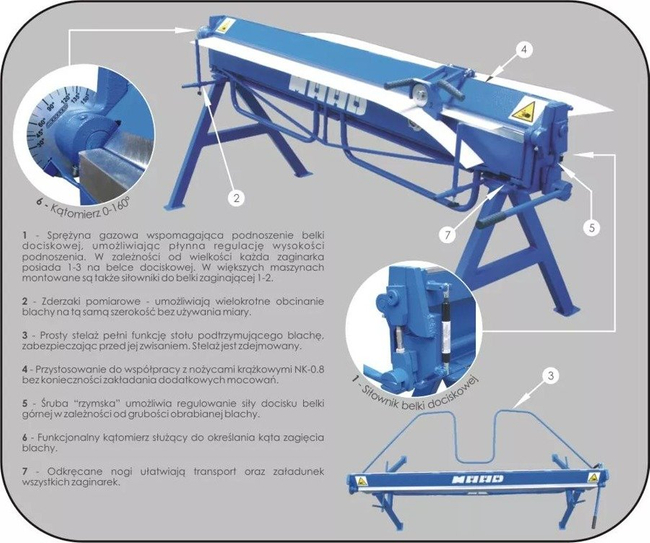

- Gas springs support the lifting of the pressure beam, allowing smooth adjustment of the lifting height. Depending on the size, each bending machine has 1 or 2 gas springs.
- Measuring buffers allow you to repeatedly cut sheet metal to the same width without using a tape measure.
- Simple frame acts as a table to support the sheet, protecting it from sagging. The frame is removable.
- Adaptation for use with rotary shears NK-0.8 without the need for additional fixings.

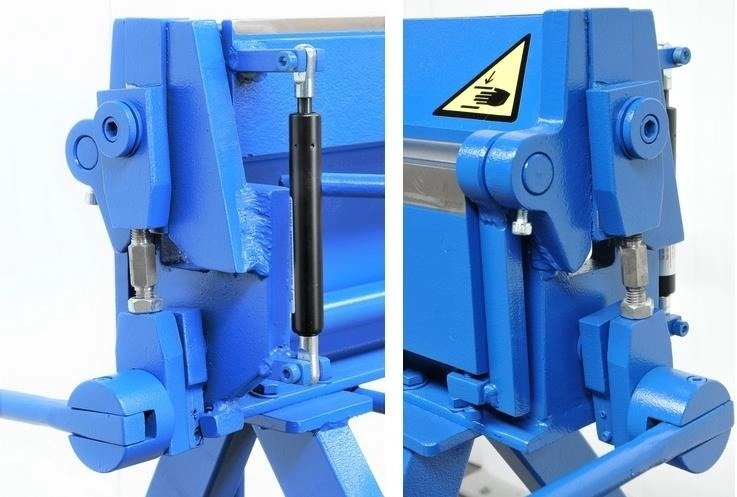

- Screw "roman" allows adjustment of the beam clamping force depending on the thickness of the sheet to be processed.

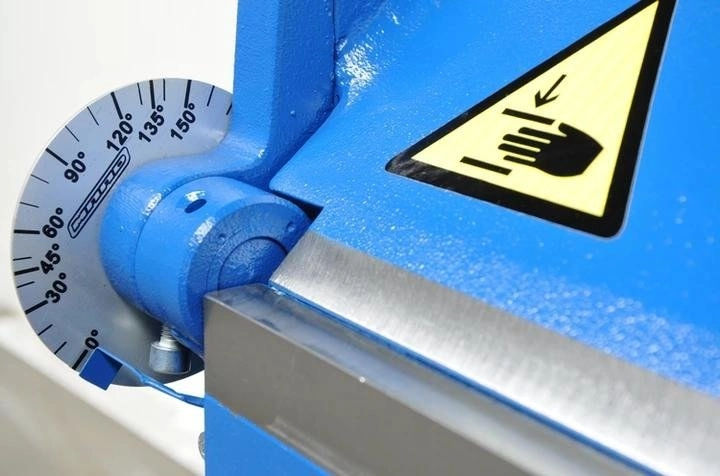

- Functional protractor used to determine the bend angle of the sheet metal.
- Detachable legs make transportation and loading easier.
The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

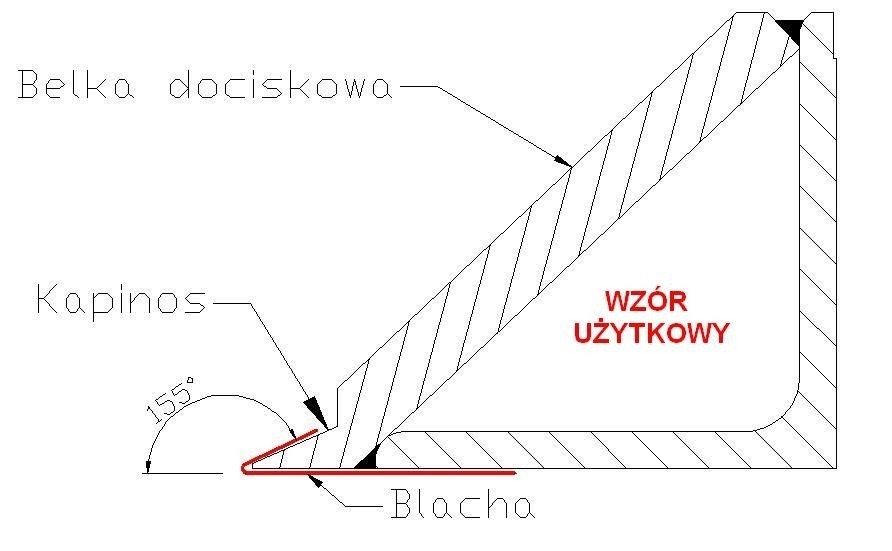

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Gas cylinder assists in raising the pressure beam. The pressure beam is designed so that its upper part is a guide for the roller shears.

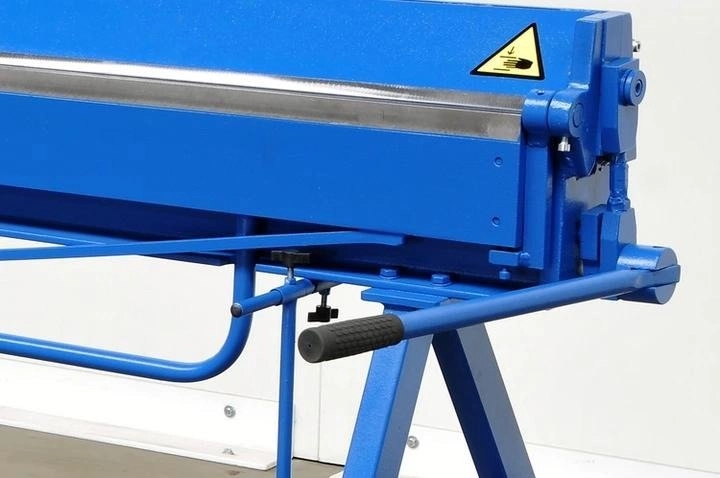

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.
The bending beam is height adjustable relative to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.

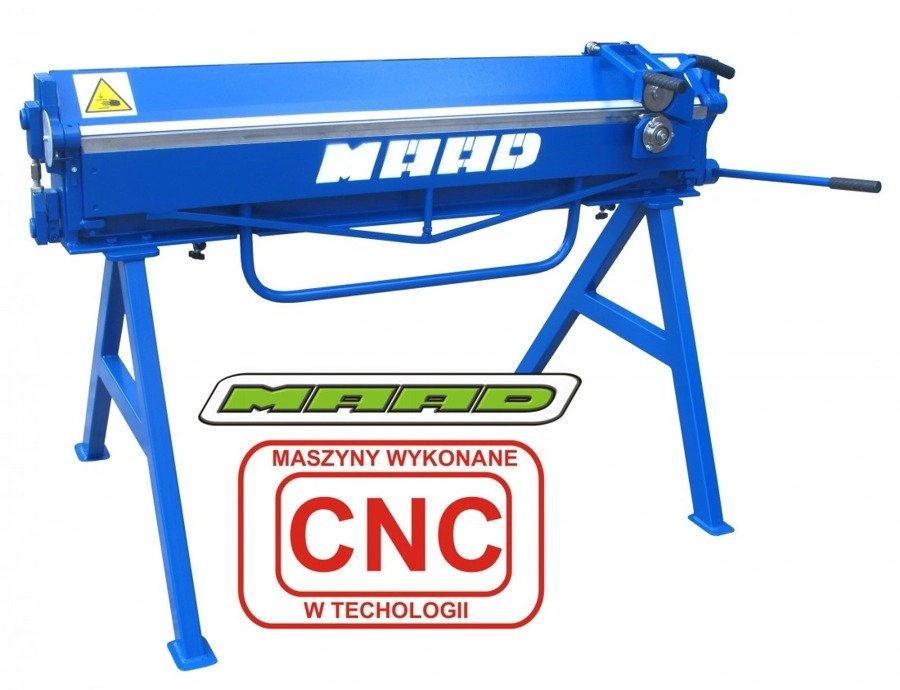

Bending machine components are made on precision CNC machine tools.
The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
