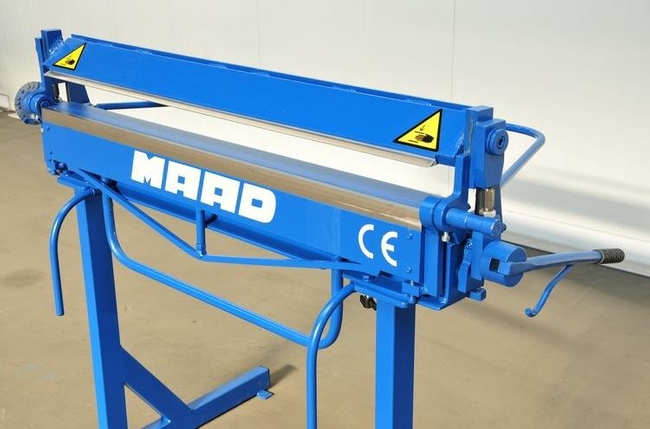

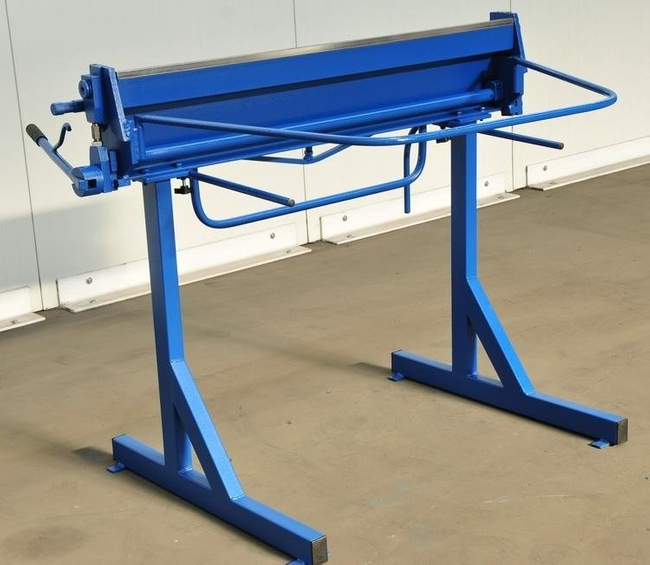

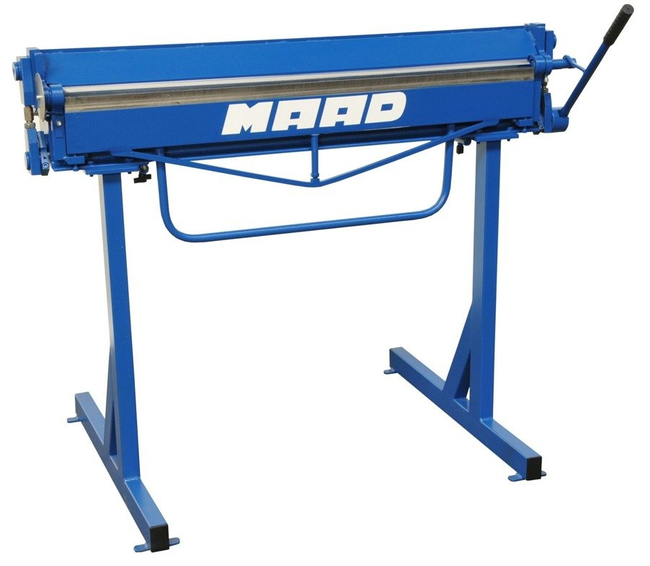

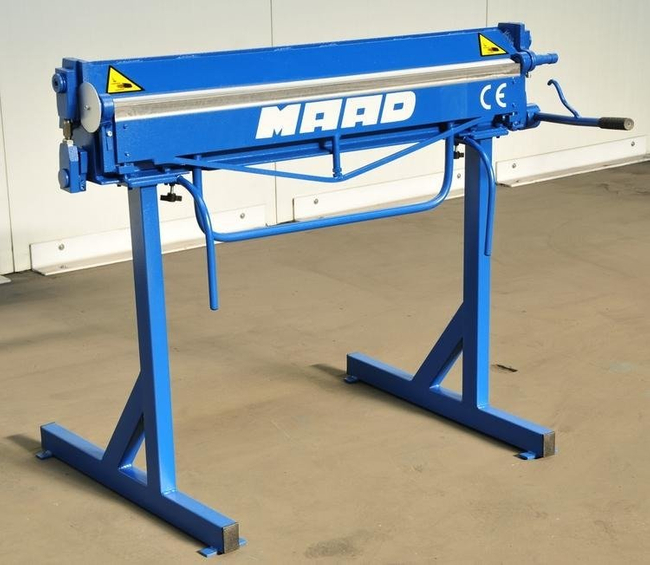

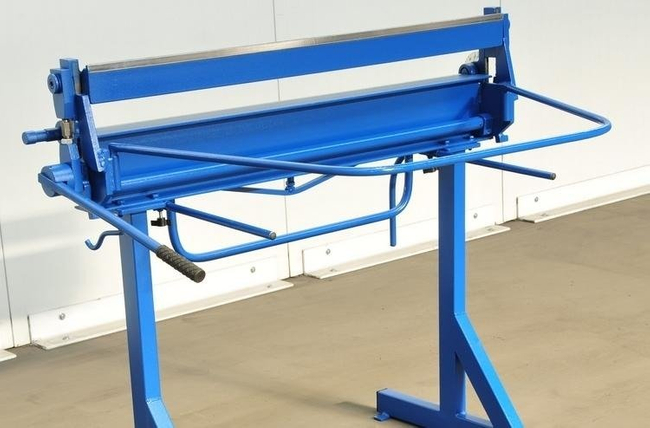

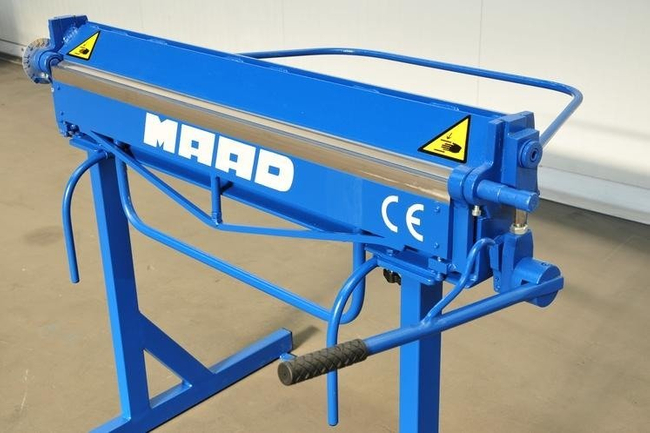

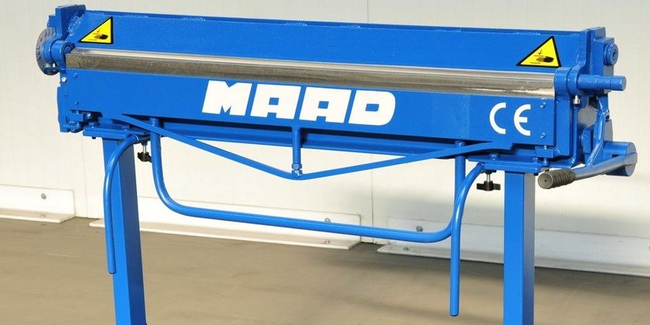

MAAD ZG 1100 / 0.8 mm BENDING DEBORASTIC CUTTING BLOCK MAAD ZG-1100/0.8 mm
- MAAD ZG 1100 /0.8 bending machine with a working width of 1100 mm for steel sheets up to 0.8 mm thick.
- Machine made with CNC technology. Bending machine designed to bend mainly roofing flashings with a width of up to 1100 mm .
The ZG-1100/0.8 bending machine is a machine with a compact design, simple in operation, created mainly for roofers. Functional and reliable in use, guarantees trouble-free operation without deformation of bending elements. A narrow bending beam with a working width of only 15 mm and a maximum bending angle of up to 155 degrees make it possible to perform complex flashings and small parts where individual millimeters play an important role. The machine as standard is equipped with all the necessary components for operation.
The design of the machine allows for the installation of roller shears on the pressure beam for cutting the processed sheet metal along a straight line.
Technical parameters/equipment:
- - working width - 1100 mm
- - max. thickness of the bent sheet - 0.8 mm ( for Rm<400MPa )
- - width of the bending beam - 15 mm
- - maximum bending angle - 155 degrees
- - weight of the machine - 90 kg
- - detachable legs - makes transportation and loading much easier
- - overlapping rack attached to the back of the machine to support the sheet metal
- - gauges for cutting sheet metal
- - protractor as standard equipment
- - shears Circular (optional)
Machine dimensions:
- height - 965 mm
- width - 1,300 mm
- depth - 650 mm

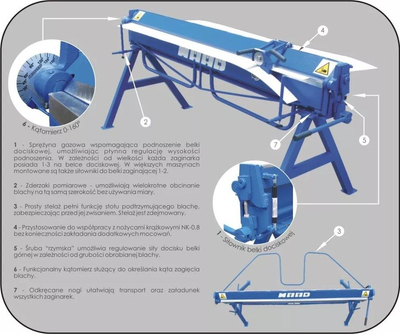

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

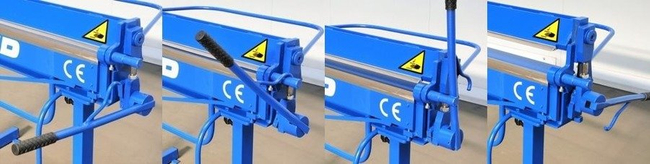

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. The design of the lifting mechanism of the clamping bar allows to obtain the correct clamping force of the attached sheet at the lower position of the lever. The pressure beam is designed so that its upper part is a guide for the roller shears.

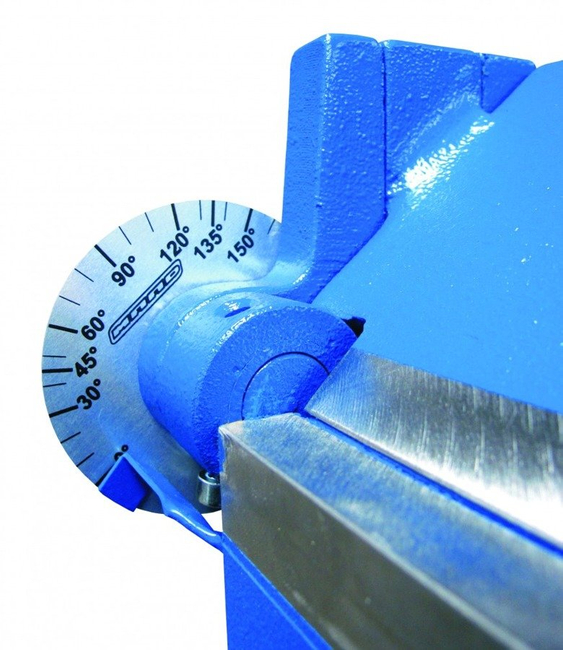

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.
The pressure beam is height adjustable relative to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.
Bending machine components are made on precision CNC machine tools.
The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
