MARUYAMA HNJ-132B ROZDRABNIACZ SPALINOWY REBAK DO GAŁĘZI JEZDNY NA GĄSIENICACH Mitsubishi 13KM
- Maruyama HNJ-132 self-propelled branch and branch shredder Maruyama HNJ-132, designed to shred dry and wet wood up to 13cm in diameter. The power unit of the Maruyama shredder is a Mitsubishi
MARUYAMA HNJ-132B ROZDRABNIACZ SPALINOWY REBAK DO GAŁĘZI JEZDNY NA GĄSIENICACH Mitsubishi 13KM

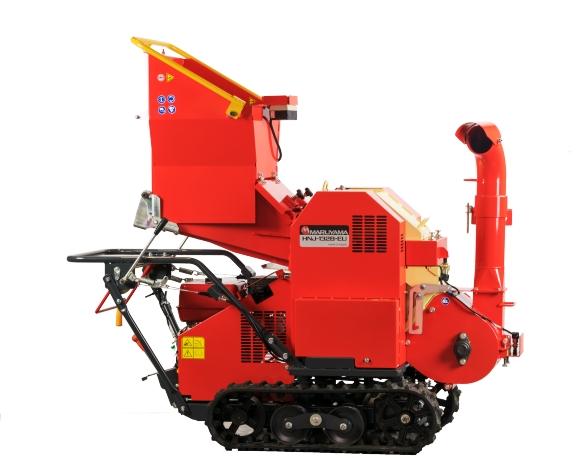

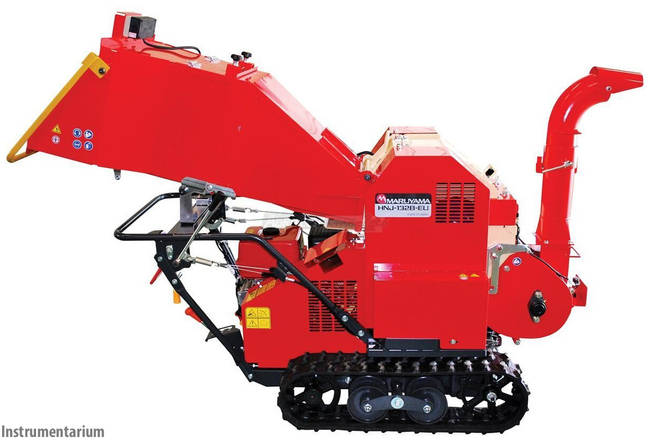

Maruyama HNJ-132 self-propelled branch and branch shredder, designed to shred dry and wet wood up to 13cm in diameter. The power unit of the Maruyama shredder is a Japanese Mitsubishi engine that can be started with a traditional tugger as well as from the key.

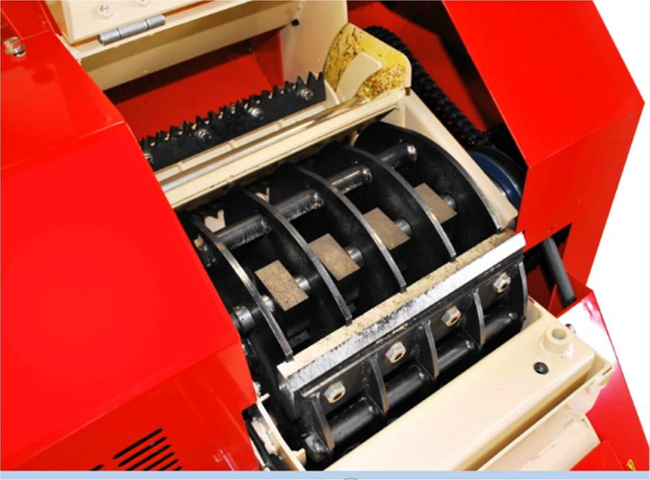

The working head is a rotating drum on which transverse fixed knives and floating hammer knives are mounted. This design provides excellent shredding results for both freshly cut and dried wood. The branches are fed through a wide feed hopper, which contains a roller that pulls in the branches. The wood is chipped by the working head and then ejected through the exhaust stack. Ejection of shredded wood is assisted by an installed blower, which increases the efficiency of the outlet and prevents clogging of the outlet throat.
The shredder's own drive provides freedom of action in the work area, and the tracks aid traction even in challenging terrain.
Specification:
- Powered by a Mitsubishi GB400 four-stroke internal combustion engine
- Engine capacity 391cm3
- Engine power 13 hp
- Manual and electric start of the engine
- Shredding mechanism tilt hammer knives x 8pcs fixed knives x 2pcs
- Maximum average fed wood 135mm
- Blower to assist the discharge of wood chips
- Transmission 2 forward gears 1 reverse gear
- Feed speed control
- Foldable hopper for transport
- Japanese tracked propulsion system
- The sensor checks and regulates the feeding speed so that the machine is not overloaded
- Dimensions (mm) 2,300(L) x 830(W) x 1,500(H)
- Net weight 450kg
Advantages of the Maruyama HNJ-132 branch shredder
- Made in Japan
- Compact, slim design
- Outstanding performance, efficiency, power, effectiveness
- Ability to work with thick branches
- Small wood chips / shavings
- Safe for the user
- Easy periodic maintenance
Technical specifications:
EAN code: 2019111202065
Commodity code: HNJ-132B-EU
ID: 56463
