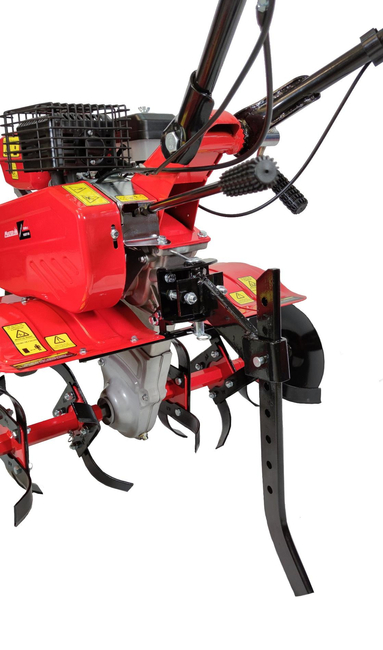

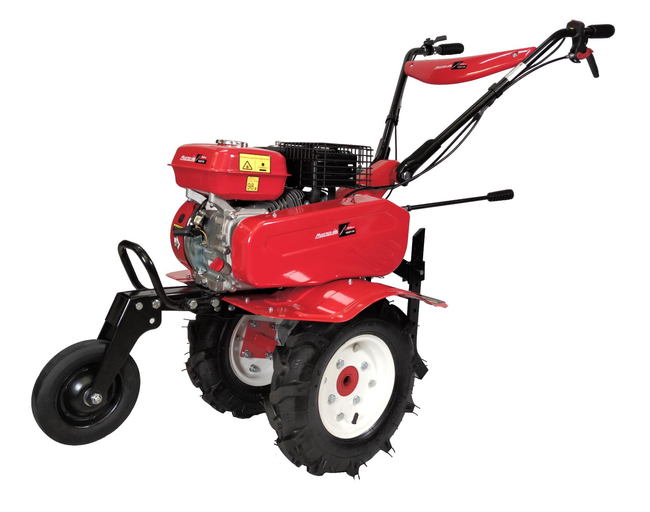

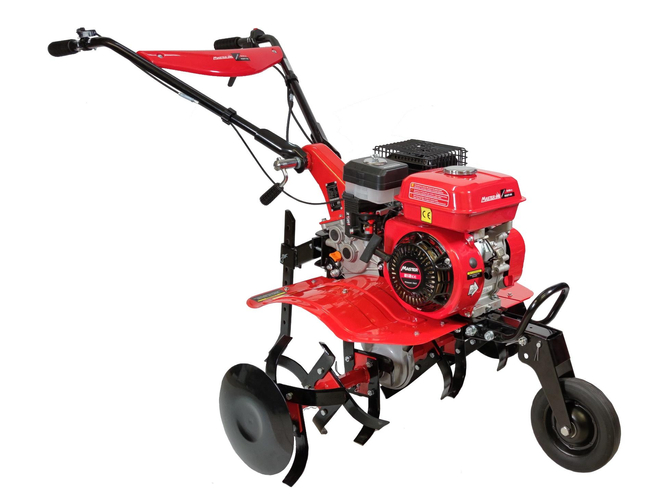

MASTERCUT HSDT90 SPRINAL PLOTTILLER CULTIVATOR 3 SPEED / 7 HP / 55cm to 85cm

Powerful petrol rotovator with gear and chain transmission ideal for tending both allotment, garden and field for personal use. Tiller for those looking for equipment to cultivate soil also on large areas.
The reinforced design and 4-stage gearbox gives you the ability to use the tiller as an agricultural micro-tractor . The ability to expand with additional attachments such as a plow for plowing, a backfiller, a chaffing machine, a vegetable puller, and a trailer makes it a versatile machine for field work. Undoubtedly, a significant advantage of the Mastercut HSDT90 Soiler is its equipment, which includes both adjustable loosening blades and pneumatic rubber wheels, as well as an adapter for additional attachments. The tread of the wheels is a typical agricultural herringbone, which improves traction.

The drive unit is a proven and efficient air-cooled 4-stroke Mastercut internal combustion engine. Widely used unit in horticultural, orchard and construction equipment, has repeatedly proven its reliability in diverse operating conditions. Starting the engine won't be a hassle even for less skilled operators thanks to the reinforced starter and electronic ignition coil.
The layout of the levers and switches is ergonomic and intuitive, both those on the engine and also those on the machine. For equipment that is exposed to dusty operation, an advantage is an engine equipped with an oil filter, which effectively cleans the air of dust and dirt created when loosening the soil.

The transmission of the drive to the knives is carried out by means of a pinion gear, which operates in an oil bath. Gearbox housing made of heavy-duty material, effectively protects against damage. Direction change / gear change is done by moving a lever located within convenient reach of the operator.

Adjustable tiller handlebars will allow you to set the correct vertical position. Included are pneumatic wheels with a diameter of as much as 40cm and blades that loosen the soil to a maximum depth of as much as 35cm. Due to its weight, the machine is easy to penetrate into the cultivated soil and easy to drive minimizing machine throwing.

Mastercut PTT90 petrol soil tiller specification:

• Mastercut OHV engine with wet filter
• Engine capacity 212cc
• Maximum engine power 7HP
• Working width 55/85cm
• Maximum working depth 32cm
• Blade/wheel drive 2 forward gear + 1 reverse gear
• Transmission of the drive to the knives by means of a gear and chain box
• Adjustment of the engine speed by means of a handle at the handles
• Handle adjustable vertically and horizontally
• Comes with a set of blades and rubber wheels 4.00-8
• Front access wheel
• Accessory adapter on standard equipment
• Weight 68kg

• * Factory machine not flooded with engine oil. Recommended oil - SAE30, ~0.6L (accurate measurement on the device gauge).
• * * Machine factory not flooded with gearbox. Recommended oil - 80W/90, ~1.1L (accurate measurement on the device indicator).
