Cable detector is a useful tool for both do-it-yourselfers and professional renovation teams. It will be appreciated especially by those who need to carry out a renovation and are not familiar with the layout of pipes, plumbing pipes or profiles in the walls. Reaming out a plumbing pipe means a lot of stress and the need to unbolt a wall to fix a leak. On the other hand, drilling a live wire means not only damage to the electrical system, but a high risk of electrocution and loss of health or life. By using the wire and profile detector you speed up your work and at the same time take care of your safety.

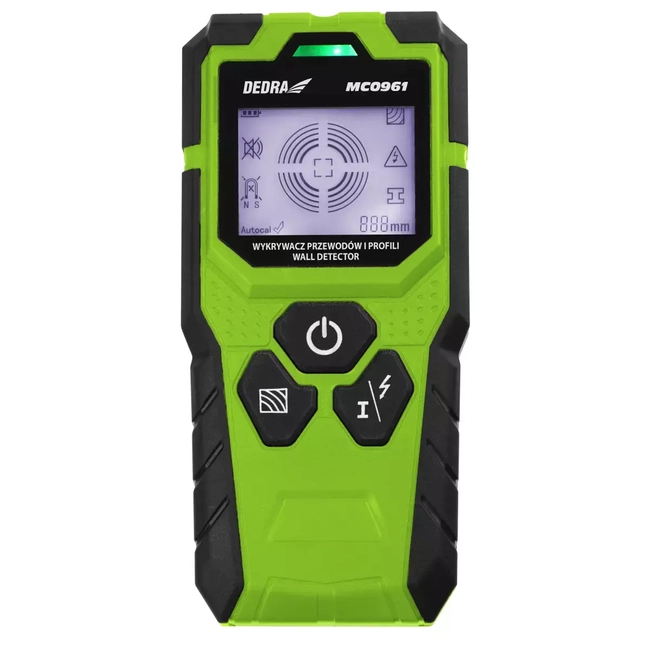

DEDRA MC0961 wire and profile detector allows detection of metal parts and profiles, electrical wires without and under AC voltage, and wood. Thus, it helps to complete the technical documentation of buildings. An easy-to-read, backlit LED display allows for efficient interpretation of detected items, and a signaling LED (in three colors: green, yellow, red) indicates encountering the item being searched for. In addition, the cable detector has an audible signal so you won't miss an alert. Included with the device you will find a carrying case, belt holder, 9V battery and instruction manual.
Features:
- Easy-to-read, backlit white 2.4 LED screen"
- LEDs indicating detection of the searched material in 3 colors: green/yellow/red
- Sound signal
- Automatic shutdown after 5min of inactivity
- Detection of profiles, pipes, and bare and live AC wires
- Rubberized housing elements improve grip

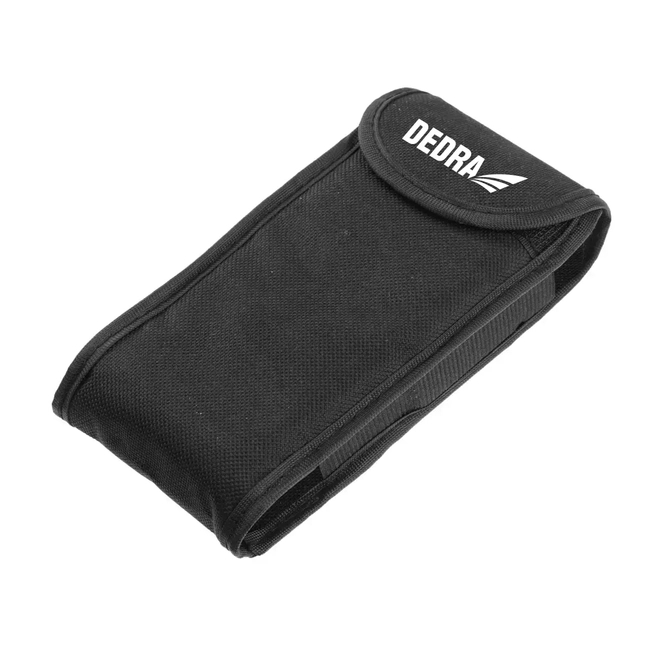

- Convenient pouch and belt holder
- Approximate distance to the detected element
Technical data:
- Power supply: 9V DC (6F22)
- Display: LED 2.4"
- Display backlighting: yes
- Indicator light: yes (green, yellow, red)
- Audible alarm: yes
- Type of objects detected: wood/metal/ferromagnetic metal/AC live wires
- Max. depth of detection:
- aC live wires: 50 mm
- non-ferrous metals (e.g., copper tubing): 80 mm
- ferromagnetic metals: 100 mm
- wood profiles: 20 mm
- Leakage class P54
- Dimensions: 150 x 75 x 30 mm
- Weight: 215 g
- Operating temperature: -10~-50℃
- Storage temperature: -20~-70℃
Completion:
- Wire and profile detector
- Belt buckle (1 pc)
- Cover (1 pc)
- 9VDC battery (1 pc)
Technical specifications:
Brand: DEDRA
Symbol: MC0961
Manufacturer code: 5902628991522
Warranty: Warranty 3 years
Series: DEDRA
Type: Wire and profile detector
Voltage [V]: 9
Type of objects detected: Metal parts and profiles, electrical wires without and under alternating voltage, wood
Max. depth of detection of ferromagnetic metals [mm]: 100
Max. depth of detection of non-ferrous metals [mm]: 80
Max. detection depth of wooden profiles [mm]: 20
Max. aC live wire detection depth [mm]: 50
Display backlighting: YES
Signal diode: YES
Audible alarm [buzzer]: YES
Display: LED
Display diagonal [inches]: 2,4
Dimensions [mm]: 150x75x30
Degree of protection: IP54
Operating temperature [°C]: -10 : +50
Storage temperature [℃]: -20 to +70
Power supply: 9V DC (6F22)
Weight [g]: 215
