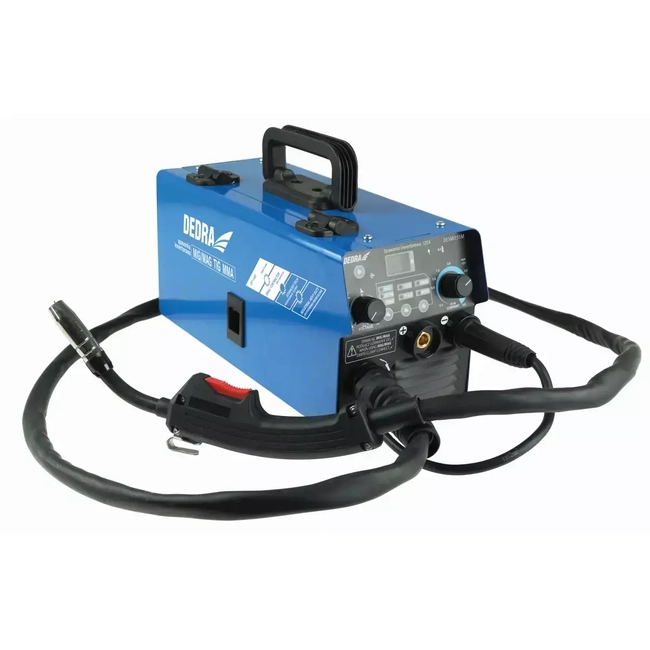

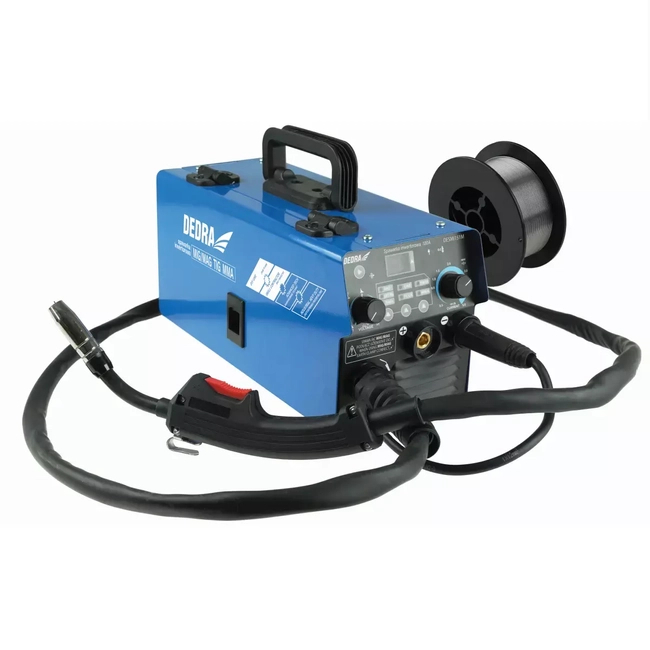

IGBT MIG/MAG INVERTER WELDER, DEDRA DESMI151M 120A, TIG, MIG/MAG, MMA FUNCTION

Inverter welder DESMI151M is a device designed for arc welding by MIG/MAG method in gas shielding, by MMA method with covered electrode with diameter from 1.6 to 2.5 mm and by TIG method for which the diameters of non-melting electrode to be used are - 1.6 mm, 2 mm and 2.4 mm.

Inverter welders are a type of welding machines, generating the necessary current values by means of electronic circuits. They are characterized by small size, low weight, considerable efficiency, wide range of applications, very good welding results and considerable transport mobility.

Inverter welder DESMi151M it is designed for manual welding with self-consuming welding wire or gas shielded MIG/MAG welding. In addition, it can be used to weld with covered electrodes such materials as alloy steels, structural steels and cast irons. With the welder you can also work with non-fusible electrodes in gas shielding, also welding non-ferrous metals and very thin parts, while obtaining much better quality welds.

This model of welder is not suitable for welding aluminum and its alloys.

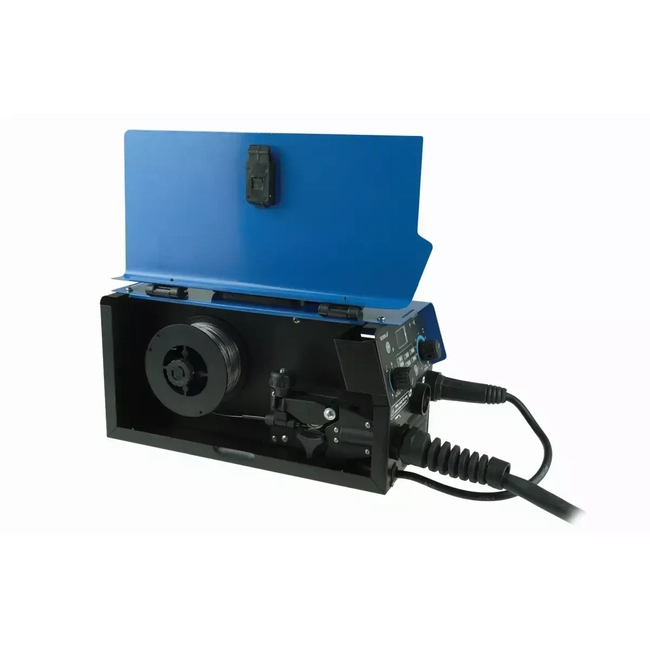

NOTES: The maximum weight of the spool that fits the DESMi151M welder is 0.45 kg and 0.9 kg (maximum spool diameter 100 mm)

Features of DESMI151M IGBT Inverter Welder:

• HOT START - a system that increases the current during arc ignition
• ANTI STICK- system that prevents electrode sticking
• ARC FORCE - starting increase of welding current, the system that regulates the arc dynamics and its stability
• Three welding methods (MIG/MAG,MMA,TIG)
• IGBT technology
• LCD display
• Welding current adjustment
• Small size and low weight
• Handle for convenient transportation
• Welder equipped with thermal protection and fan to protect against overheating
• Adapted for generator power supply

Technical data of the welder inverter IGBT DESMI151M:

• Power supply: 230V
• Degree of protection: IP21S
• Protection required: 16A
• Electrode diameters for:

  • TIG LIFT: 1.6 / 2 / 2.4mm
  • MMA: 2.5 mm
  • MIG/MAG (welding wire): 0.8-1mm
• Maximum welding current for:

  • TIG LIFT: 120A
  • MMA: 115A
  • MIG/MAG: 120A

• Maximum spool weight: 0.45 kg and 0.9 kg

• Maximum spool diameter: 100 mm
• Welding current adjustment range: 10-120A
• Cooling system: fan
• Weight: 5kg

Completion:

• Welder
• Electrode (1 pc.)
• Collet (3 pcs. - of which 2 pcs. in package) - 1.6 mm, 2.0 mm, 2.4 mm
• Ceramic nozzle (3 pcs. - of which 2 pcs. in the package)
• Rear long plug (1 pc).)
• Welding cable with holder for covered electrode - MMA (1pc).)
• Current wire with ground terminal (1 pc.)
• Protective mask complete (1pc.)
• Brush with hammer (1 pc.)

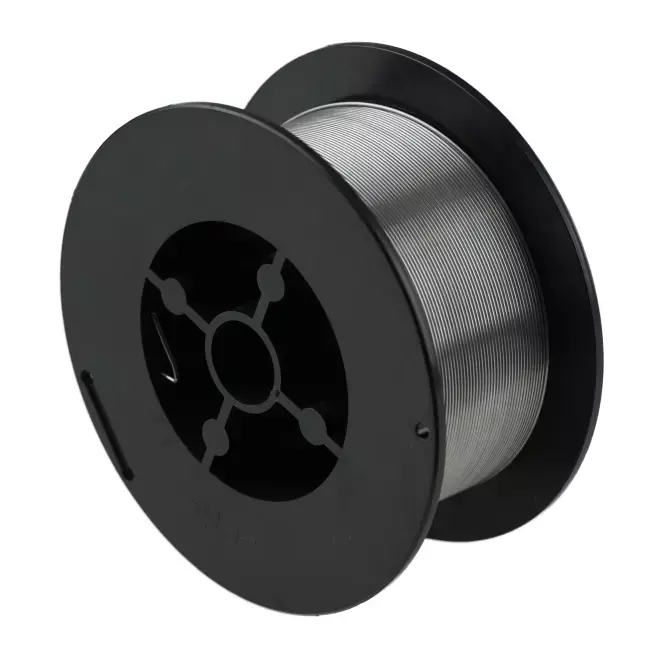

• Spool of self-consuming wire [FLUX 0.8mm] 0.45 kg (1 piece)

Technical specifications:
