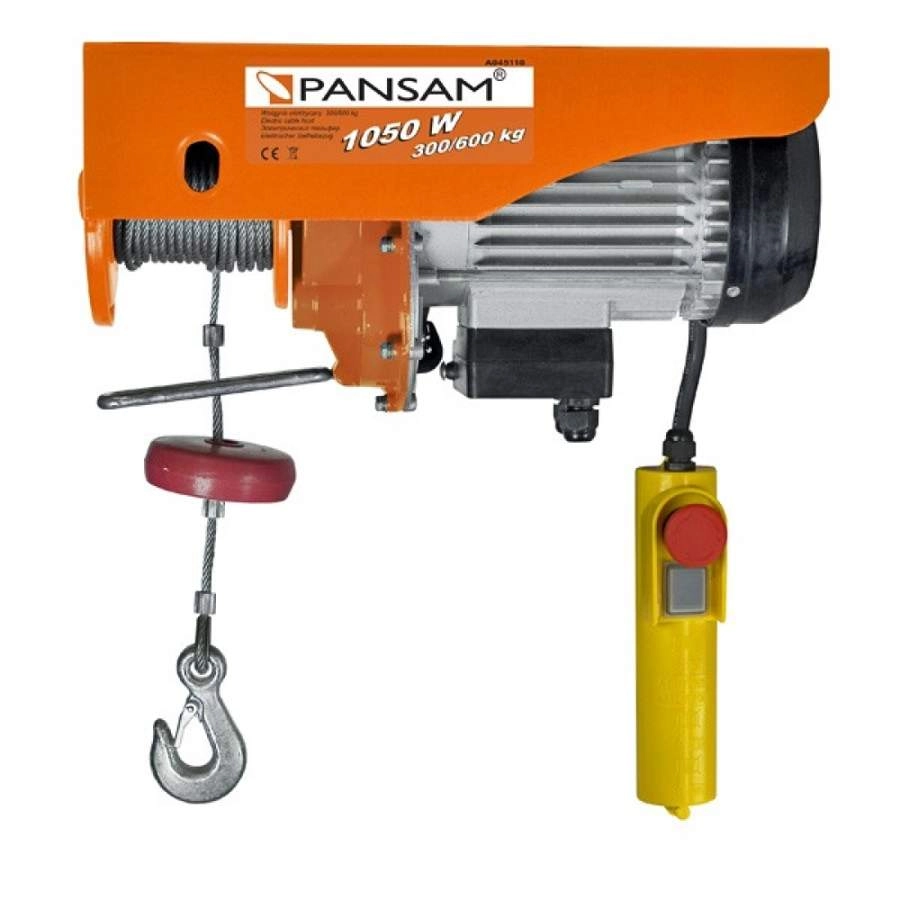

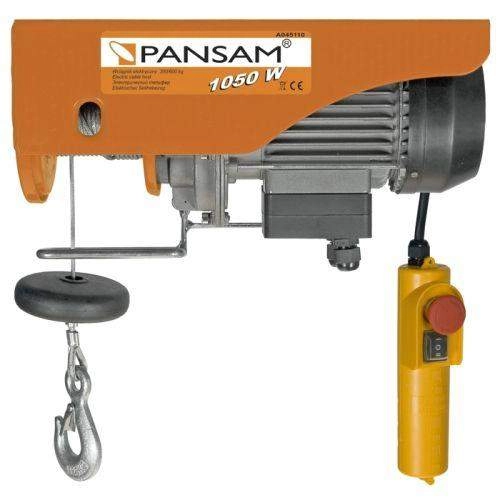

ELECTRIC WINCH PANSAM A045110

PANSAM electric winch A045110 is a technologically advanced product designed to lift vertically objects of the weight declared in the technical data and suitable for the hoist model. The electric rope winch has an automatic switch that protects the rope from breaking when the object is pulled in, an electromagnetic brake, released only when the motor is running. The winch is designed for lifting in weights in 2 variants with and without pulley 2 lifting speeds.

Characteristics:

• The electric hoist is designed to lift vertically objects with the weight declared in the technical data and appropriate to the hoist model.
• Widely used for home construction and renovation, as well as for work in mechanical services.
• An electric motor powered by 230 V mains is used for propulsion.
• The working element is a strong rope made of steel wire.
• Pansam winch allows you to lift a load to a height of 6 m with a maximum load of 600kg or 12 m with 300kg

Technical Data:

• Rated power: 1050 watts
• Operating voltage: 220-240 V, 50 Hz
• Maks. load: 300 kg

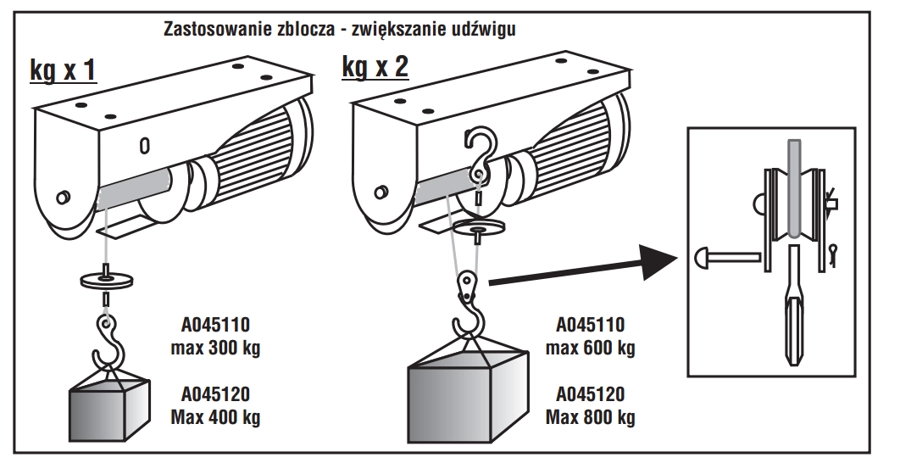

• Maks. load with block: 600 kg
• Lifting speed: 10 m/min
• Lifting speed with the block: 5 m/min
• Maks. lifting height: 12 m
• Maks. lifting height with the block: 6 m
• Winch rope diameter: 4.5 mm
• Length of the winch cable: 12,5 m
• Sound pressure level Lpa: 58 dB
• Degree of protection against moisture and foreign bodies: IP 44
• Class I tool
• Weight: 18.6 kg

Included:

• Electric hoist
• Mounting brackets 2 pcs.
• Clamp fixing screws 4 pcs.
• Block with hook 1 pc
• Instructions

EAN product code: 5902628786845

PANSAM is a reputable manufacturer of tools.Brand products PANSAM are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools. PANSAM offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders. PANSAM implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
