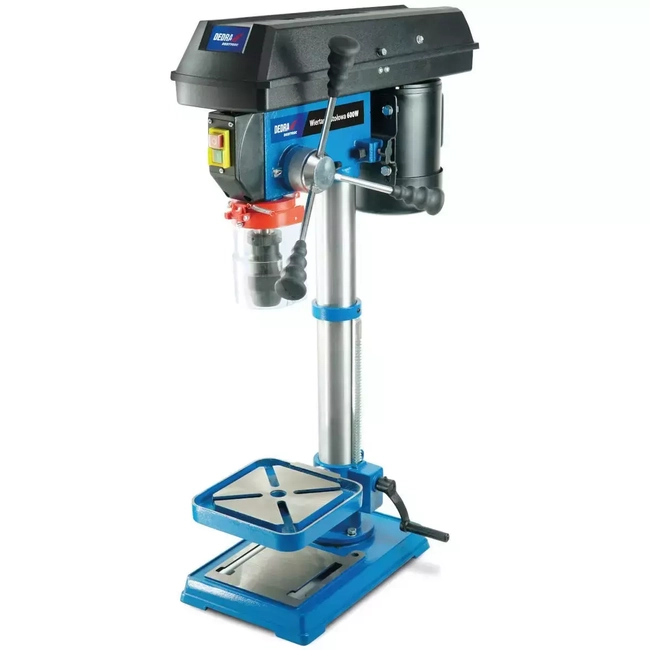

DEDRA DED7708C TABLE DRILL 600W, 16MM, 5 GEARS

Table drill DED7708C, is designed for drilling holes in materials such as wood, wood-based materials, plastics and metals.

Table drill DED7708C is equipped with two work surfaces. We are able to adjust the height of one of them with a knob and additionally adjust in the 0-90˚ tilt range. The drill has a five-speed gear ratio, which allows us to choose the right speed when making a hole.

Features of the DED7708C table drill:

• Five gear ratios
• Solid steel construction
• Two worktops
• Tabletop adjustment 0-45˚
• Drill spindle cover
• Safety switch

Technical data indED7708C table top drilling machine:

• Voltage: 230V / 50 Hz
• Power: 600 W
• Speed range: 660-2500RPM
• Spindle pitch: 60 mm, Morse taper chuck
• The range of chuck diameters: 3-16 mm
• Dimensions of the movable table: 200x195 mm
• Dimensions of the bottom table: 355x235 mm
• Clearance to table: 350 mm
• Weight: 31 kg

Completion:

• Drill chuck (1 pc)
• Allen wrench (1 pc)
• Shield (1 pc)
• Handle wrench (1 pc)
• Set of nuts and bolts
• Work table (1 pc)
• Base (1 pc)
• Strip (1 pc)
• Crank (1 pc)
• Wedge (1 pc)
• Lever (3 pcs)
• Column (1 pc)
• Ring (1 pc)
• Drive unit
