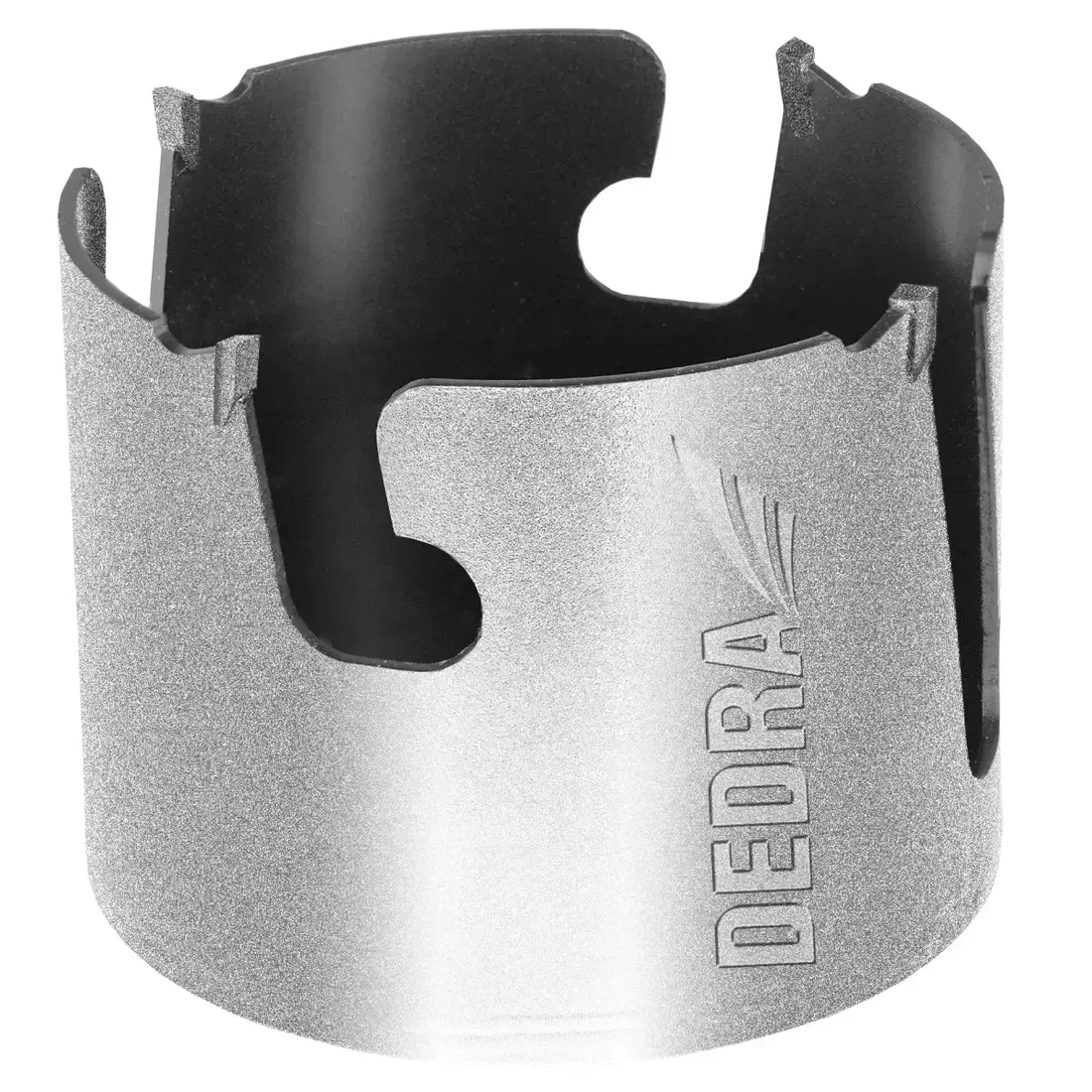

UNIVERSAL HOLE SAW TCT DEDRA 08X114 114MM 5/8''

The dimension given in the picture is an example dimension. The actual dimension is in the product description.

Universal fork hole saw is an indispensable tool in the workshop of a do-it-yourselfer.

Special notched body design increases the strength of the hole saw and improves hole guidance.

Thanks to the use of HEX 10mm 1/2" chucks 08X001 (recommended for holesaws: 08X019 - 08X030) and 5/8" 08X002 (recommended for holesaws: 08X032 - 08X152) it is possible to use the holesaw in drills or drill-drivers.

Using SDS+ chuck 08X003 (recommended for holesaws: 08X032 - 08X152) we can use DEDRA 08X forked holesaws with a hammer drill in non-hammer drilling mode.

To improve cutting effects and increase strength, the holesaws have several forked inserts that effectively machine the workpiece material. Using the appropriate pilot drill bit, the DEDRA 08X forked universal core cutter can be used to work in wood, furniture board, PVC, as well as mineral materials such as ceramic blocks, cellular concrete or silicate.

In order to increase the strength of the holesaws, their body was made of high-grade #45 HCS steel with a thickness of 1.5mm, and the teeth were made of tungsten carbide with 6% cobalt (YG6X tungsten steel). This has improved the quality, durability of the crowns and increased drilling efficiency.

Features:

• Universal forked hole saws
• Durable body of the hole saw - HCS steel
• Teeth reinforced with carbide with added cobalt (6%)

Technical Data:

• Diameter of the hole saw: 114mm
• Depth of cut: 60mm
• Recommended mounting bracket: 08X002 (HEX 5/8") or 08X003 (5/8" SDS+)
• Thickness of the body: 1.5 mm
• Materials of construction: body #45HCS, teeth YG6X
