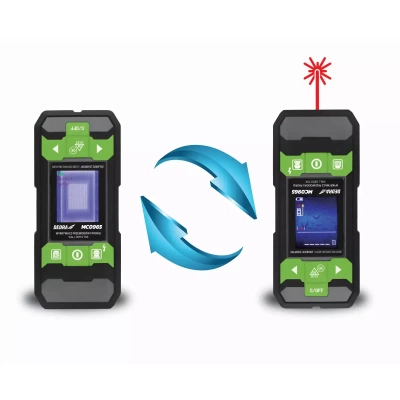

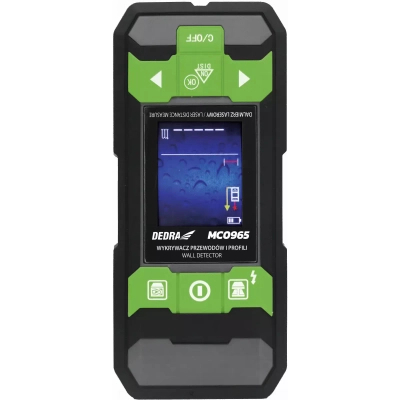

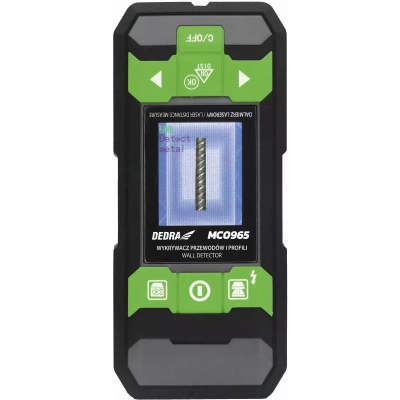

WIRE AND PROFILE DETECTOR WITH RANGEFINDER FUNCTION DEDRA MC0965 BEAM RANGE 40M LASER RANGEFINDER MEASURING DEVICE LASER MEASURING DEVICE
- Power supply: 3.7V rechargeable battery with micro USBDisplay: LED 1.8 "Operating temperature: 0°C - 40°CStorage temperature: -20°C - 60 CPDisplay backlight: yesAudio alarm: yes
Cable detector is a useful tool for both do-it-yourselfers and professional renovation teams. It will be appreciated especially by those who need to carry out a renovation and are not familiar with the layout of pipes, plumbing pipes or profiles in the walls. Using the wire and profile detector, you speed up your work and at the same time take care of your safety, because drilling through, for example, a live wire is not only damage to the electrical system, but a high risk of electrocution and loss of health or life.
DEDRA MC0965 wire and profile detector allows detection of metal parts and profiles, electrical wires without and under alternating voltage and wood, as well as other objects such as iron, concrete, glass, aluminum, etc.. Thus helps to complete the technical documentation of buildings. In addition, the detector is equipped with the function of rangefinder with an operating range of 0.05-40m, which is a great convenience, because instead of two devices, we have one.
Included with the device you will find a belt case, lanyard, USB-C cable, user manual.
Features of the MC0965 wire and profile detector device:
- Colorful, backlit and easy to read display 1.8"
- Beep to indicate detection of the material being searched for
- Automatic shutdown after 5min of inactivity
- Voice function in language. english can be switched off
- Detection of profiles, pipes, and bare and live AC wires
- Rubberized housing elements improve grip
General specifications:
- Power supply: 3.7V rechargeable battery with micro USB
- Display: LED 1.8"
- Operating temperature: 0°C - 40°C
- Storage temperature: -20°C - 60 C
- Display backlighting: yes
- Audible alarm: yes
Technical data of the MC0965 profile detector:
- Type of objects detected: wood/metal/ferromagnetic metal/AC live wires
- Max. depth of detection of wooden profiles: 20 mm (precise) / 38 mm (coarse)
- Max. aC live wire detection depth: 40 mm
- Max. depth of detection of non-ferrous metals, e.g. copper tubes: 80 mm
- Max. ferromagnetic metal detection depth: 100 mm
- Detects other objects such as iron, concrete, glass, aluminum, etc.
- Percentage indicator
Technical specifications of the MC0965 rangefinder:
- Working range: 0.05-40 m
- Measurement accuracy: +/-5mm
- Wavelength: 635 nm
- Device power: ≤ 1mW
- Units of measurement: mm/in/ft
- Measurement memory: 30 units
- Laser class: II (red)
- Two measurement reference points: forehead/base
- Percentage indicator
- Six functions
- area measurement
- continuous measurement
- volume measurement
- trigonometric functions
- addition/subtraction
- minimum/maximum
Completion:
- Wire and profile detector
- Case (1 pc)
- USB type C cable (1 pc)
- Lanyard (1 pc)
Technical specifications:
Brand: DEDRA
Symbol: MC0965
Manufacturer code: 5902628991638
Warranty: Warranty 3 years
Series: DEDRA
Type: Wire and profile detector
Voltage [V]: 3,7
Type of objects detected: Metal parts and profiles, electrical wires without and under alternating voltage, wood
Max. depth of detection of ferromagnetic metals [mm]: 100
Max. depth of detection of non-ferrous metals [mm]: 80
Max. detection depth of wooden profiles [mm]: 38
Max. aC live wire detection depth [mm]: 40
Display backlighting: YES
Signal diode: YES
Audible alarm [buzzer]: YES
Display: LED
Display diagonal [inches]: 2,4
Dimensions [mm]: 135x60x25
Operating temperature [°C]: -10 : +50
Storage temperature [℃]: -20 : +60
Power supply: Rechargeable
Weight [g]: 118
Laser beam color: Red
Laser beam length [nm]: 635
Maximum number of measurements in memory: 30
Range [m]: 40
Measurement accuracy [+/- mm/10m]: 5
