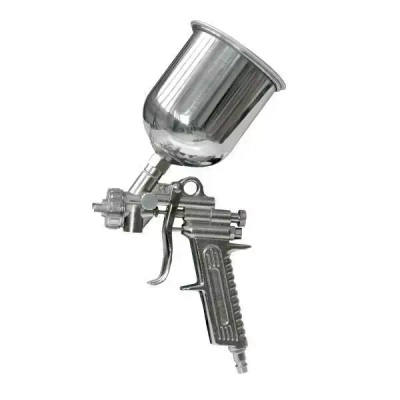

PANSAM PAINT GUN A532062 TOP TANK, ALUMINUM

Spray gun A532062 with a top tank, is designed for painting with solvent-based and water-based paints such as latex paints, acrylic paints, stains or metal primers.

The gun is equipped with a top tank with a capacity of 500ml. In the back of the gun there is a knob with which we can adjust the amount of paint fed to the gun. In addition, we can adjust the shape of the jet we get when painting. This is done by the pattern setting knob located on the front of the gun.

Features:

• Easy-to-clean aluminum tank
• Solid construction
• Adjustment of the amount of ink fed
• Adjusting the shape of the paint stream

Technical data:

• Connection diameter: 1/4''
• Nozzle diameter: 1.5 mm
• Recommended operating pressure: 3 - 5 bar (43.5 - 72.5 psi)
• Max. permissible pressure: 7 bar (100 psi)
• Cup capacity: 500 ml
• Air demand: 118-200 l/min
• Painting width:180 - 250 mm
• Weight: 0.70 kg
