DEDRA DED7739 MITRE SAW FOR WOOD

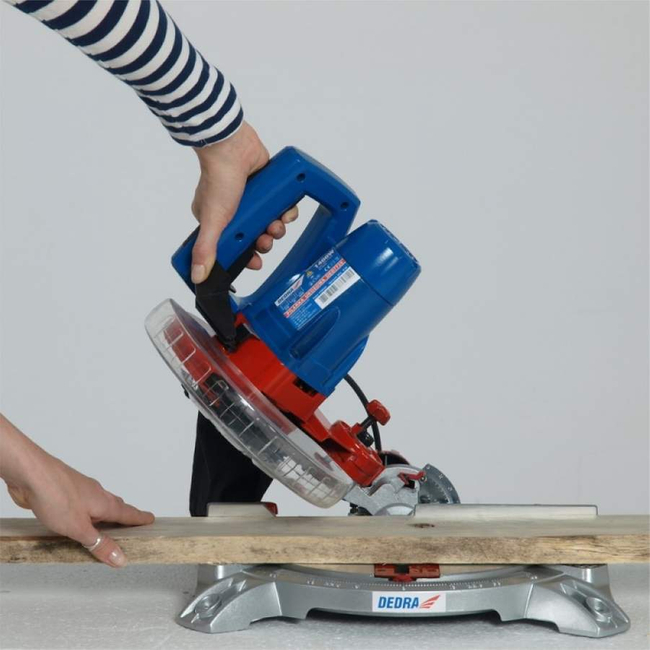

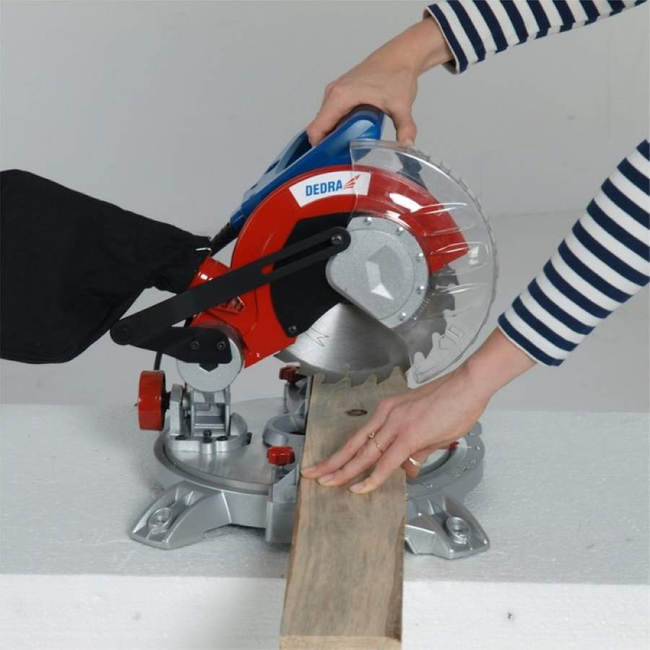

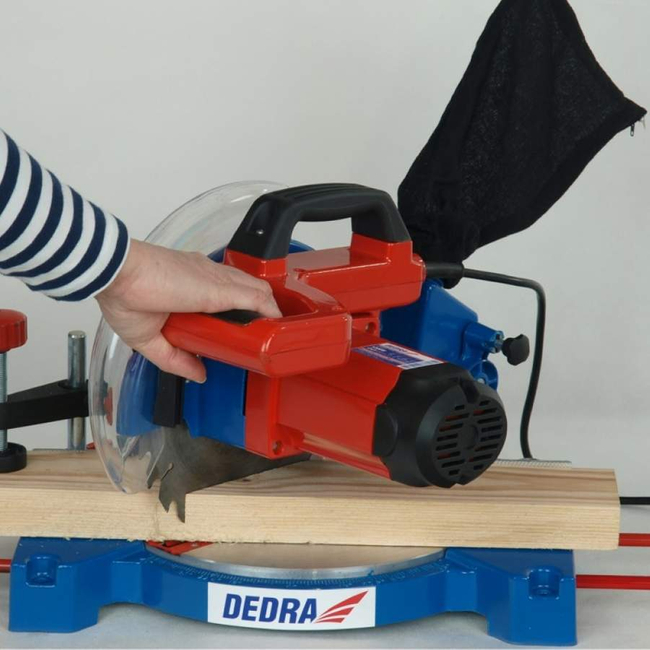

DEDRA DED7739 Circular Saw angular for wood is a product designed to cut all types of wood, wood-based materials (plywood, particleboard, etc.).) and plastics. A sawdust discharge system was used here, thanks to which the spread of excavated material was significantly reduced during operation. The machine allows you to perform the basic operations of cutting wooden parts: longitudinal sawing, cross-sawing, mitre sawing. At the factory, the cutter is equipped with a circular saw with a diameter of 210 mm. It is permissible to use wood saws with a different number of teeth. Allows you to perform basic cutting of wooden parts: longitudinal sawing, crosscut sawing, mitre sawing.

Characteristics:

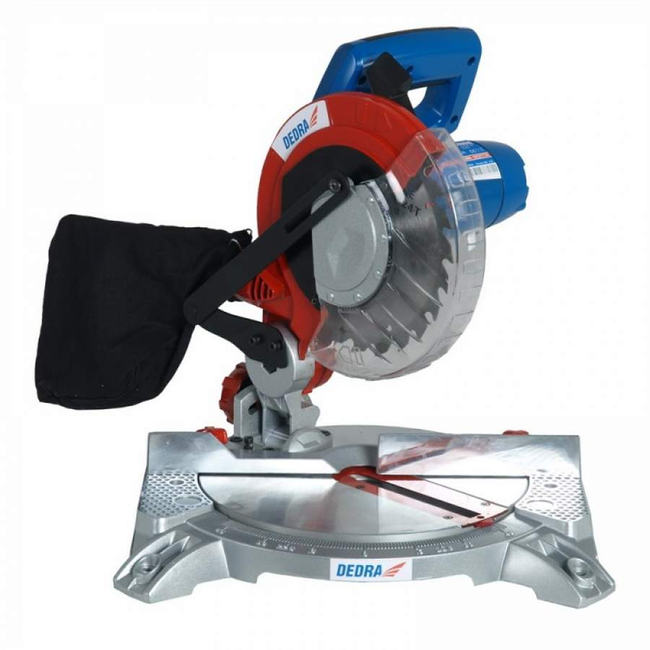

• DEDRA DED7739 mitre saw
• Stationary electric device designed for longitudinal and transverse cutting of wood.
• It is possible to make bevel cuts horizontally at an angle of -45^o up to +45^o and vertically at an angle of -45^o
• High cutting speed ensures high cutting quality.
• The base and table are made of high quality cast aluminum.

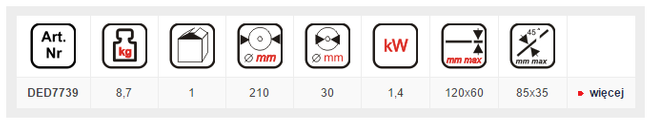

Technical data:

• electric motor: commutator, single-phase
• working voltage: 230V / 50Hz
• motor power rating: 1400 W
• rotational speed: 5000 rpm
• saw blade diameter: 210 mm
• saw blade bore diameter: 30 mm
• maximum vertical cutting dimensions: 60 mm
• maximum cutting height at an angle: 35 mm
• weight: 8.7 kg
• Maximum dimensions of the wooden log to:
  - sawing: wide. 120 mm x H. 55 mm
  - beveling 45 degrees vertically and horizontally: width. 83 mm x H. 30 mm

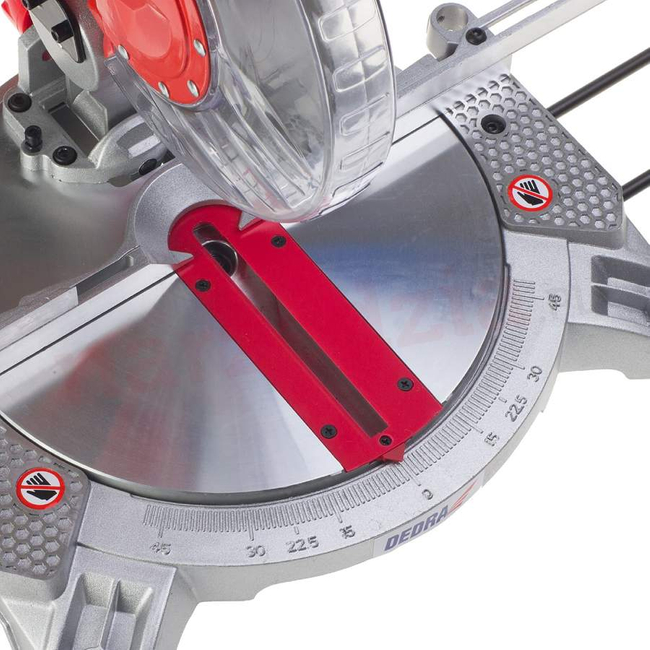

• Working head rotation range (horizontal): - 45 degrees / 0 degrees / +45 degrees
• Working head deflection range (vertical): 90 degrees to 45 degrees to the left

Included:

• angle cutter
• circular wood saw
• spoil bag
• manual EN

EAN product code: 5902628773906

DEDRA is a reputable manufacturer of tools.Brand products DEDRA are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools.DEDRA offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders. DEDRA implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
