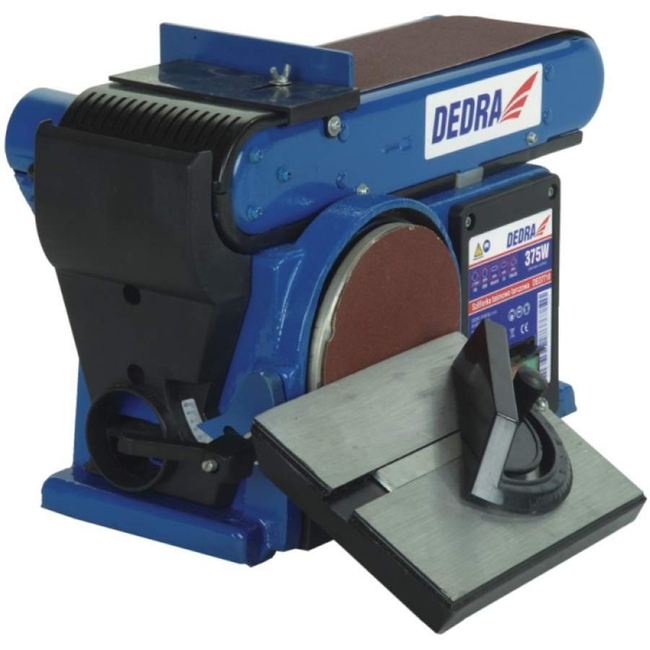

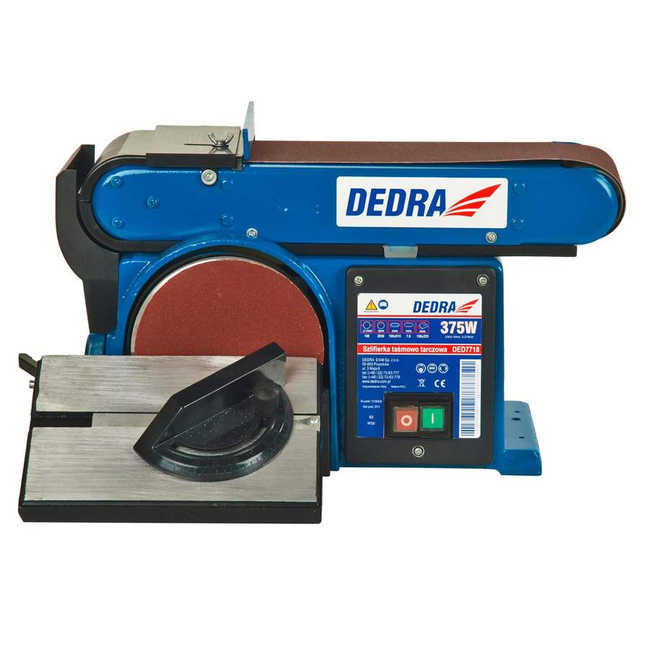

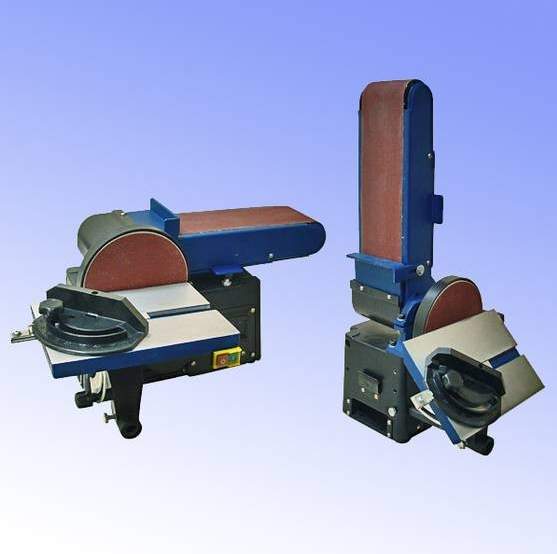

DISK AND BELT GRINDER DEDRA DED7718

DEDRA DED7718 disc and belt grinder for wood is a technologically advanced product designed for sanding all types of wood, wood-based materials (plywood, particleboard, etc.).) and plastics.
. As a result, the spread of excavated material was significantly reduced during operation.

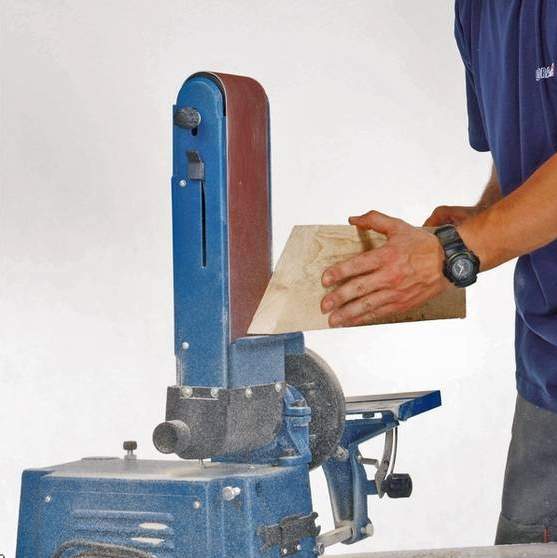

The machine allows you to perform the operations of sanding wooden parts lengthwise, crosswise, diagonally, which are described in detail later in the manual.

The disc-belt grinder is equipped as standard with an abrasive disc with a diameter of 150 mm and a grain thickness of 80.
Similarly, the abrasive belt mounted in the grinder has a circumference of 914 mm, a width of 100 mm and a grit thickness also of 80.
For operational reasons, discs with a diameter of 150 - 152 mm and abrasive belts with a circumference of 914 mm and a width of 100 mm are recommended for use in the disc-belt sander.
Grain thickness does not affect the operation of the grinder and depends only on the nature of the activities that the user will perform with the machine. There is a wide range of both discs and abrasive belts available on the market in a wide variety of grit sizes, allowing you to do both rough woodworking and more fine woodworking.

Characteristics:

• Quiet operation of the device.
• Stable construction of the grinder and modern design.
• The powerful 375W motor also ensures that heavy work can be done.
• Quick replacement of abrasive discs of disc grinder.
• Adjusting the grinding angle with the disc.
• Grinding belt adjustment.

Technical data:

• Machine type DED7718
• Single-phase induction electric motor
• Operating voltage 220V - 240V 50Hz
• Rated motor power 375 watts
• Disc speed 2400 rpm
• Linear belt speed of 7.6 m/s
• Diameter of grinding disc 152 mm
• Grinding belt circumference 914 mm
• Width of grinding belt 100 mm
• Table dimensions 158 mm / 225 mm
• Range of table inclination 0 - 45
• Weight 22kg net / 24kg gross
• Size of the grinder (length. X wide. X highly.):480 x 300 x 310 mm
• Diameter of spoil ejector stub holes: 36 mm external / 30 mm internal

Included:

• Disc and belt sander
• Tilting work table with fixing pin
• Angle positioner
• Wrench
• Abrasive disc bottom cover with spigot
• Ampule wrenches 3 pcs.
• Abrasive tape
• Abrasive disc
• Screws
• User manual in Polish

EAN product code: 5902628771803
