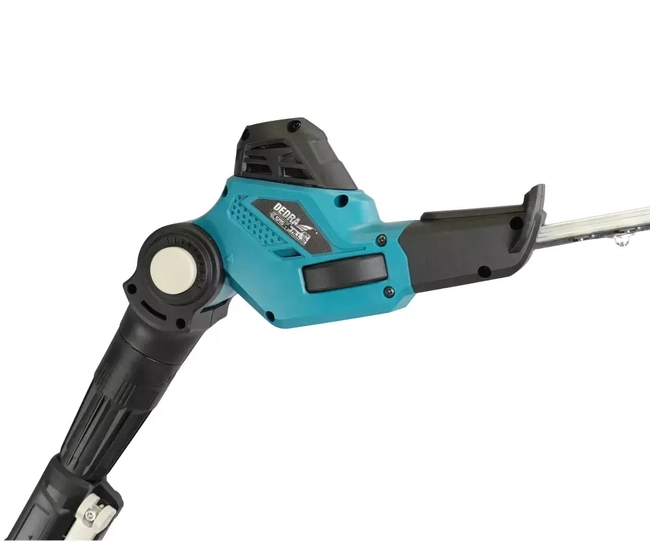

SCISSORS AND BOOM SAW 2-IN-1, OREGON DEDRA SAS+ALL SAW DED7096

DEDRA SAS+ALL DED7096 shears and boom saw:

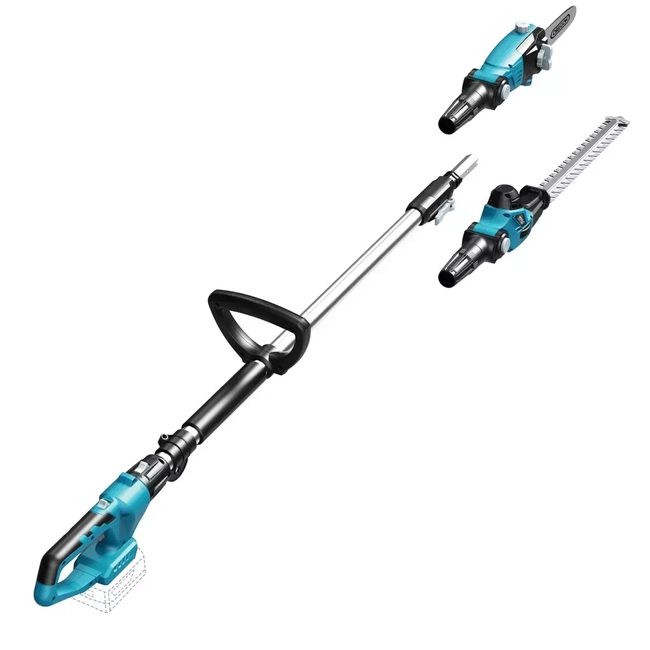

This is a 2-in-1 device - a combination of a hedge trimmer and a pole saw. This is a tool that will find its use in the garden or orchard.

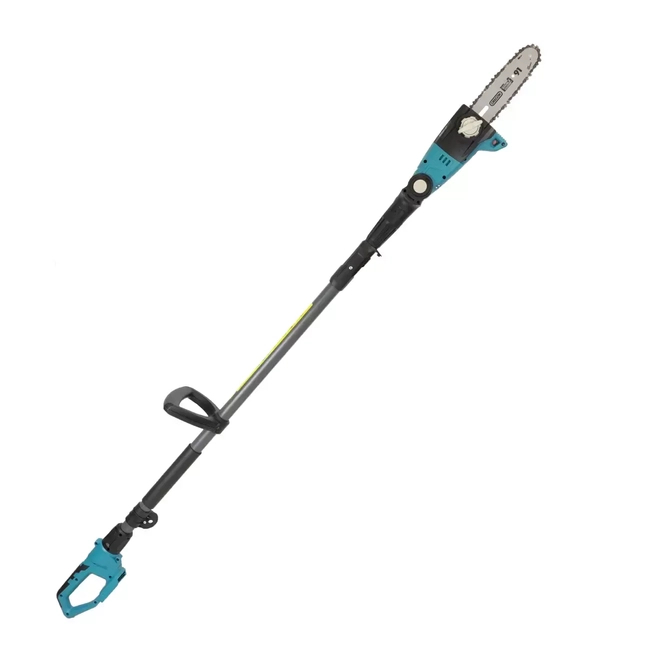

Arm saw will prove useful wherever high-growing branches need to be trimmed. The length of the guide in this model is 20 cm. Thanks to the long boom - the device has a total length of 2.7m (with the saw) - you will effectively and safely cut off branches without having to unfold the ladder. The saw is equipped with a system that allows quick and easy adjustment of the chain tension level without tools. Chain speed of 5m/sec will provide the user with fast and efficient cutting. Chainsaw on boom DED7096 has an adjustable handle position of -90/0/+90 degrees (5 degrees of tilt) for more comfortable work.

In addition, it is possible to adjust the angle of the cutting head from 0-30˚, and with automatic chain lubrication, the saw is easy to operate.

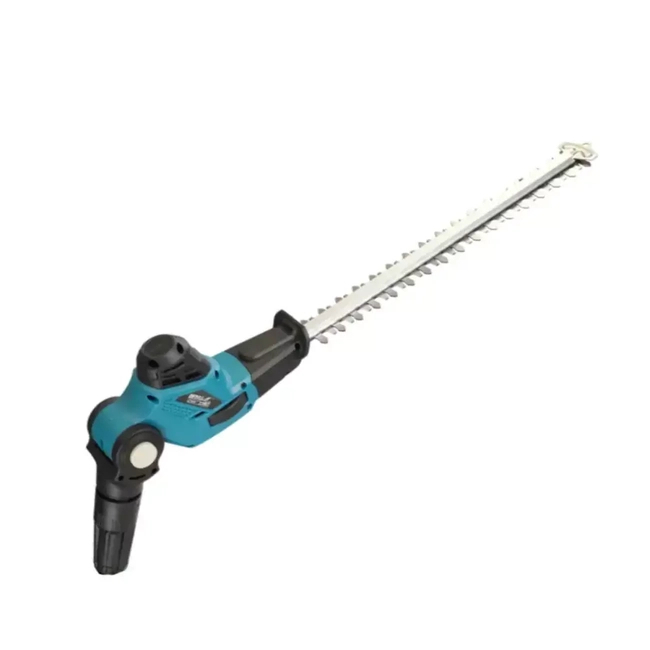

Arm hedge trimmer is a device designed for trimming tall shrubs, hedges or small branches of ornamental trees. With a 415mm (16") working length cutting bar, you can easily cut shrubs up to 5m above the ground surface - the total length of the device with the scissor head is 3m. The maximum thickness of cut stems is 16mm, which, at 1500RPM, ensures fast and reliable shearing of your shrubs.

Possible cutting head angle adjustment from -45 to +90˚ allows you to adjust the device to your specific need making it easier to cut even in hard to reach places.

Recommended batteries for the 2-in-1 unit are 4.0Ah DED7034 or 5.0Ah DED7035.

Features of the 2-in-1 device DED7096:

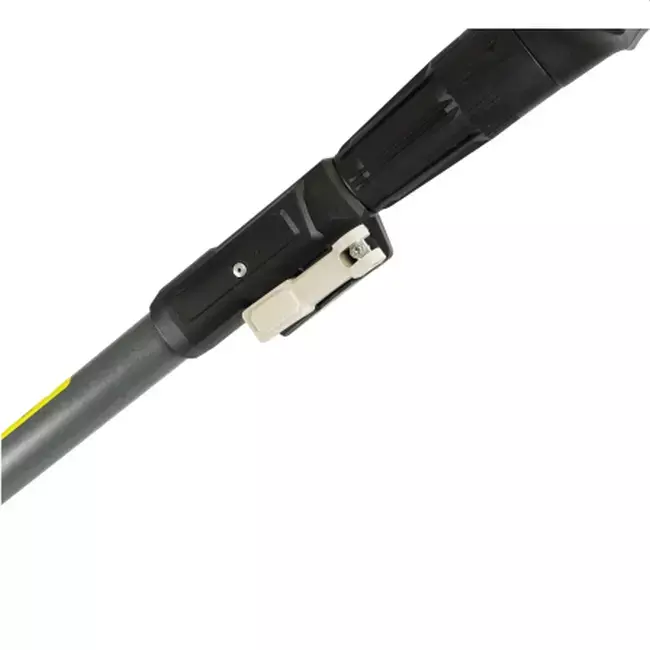

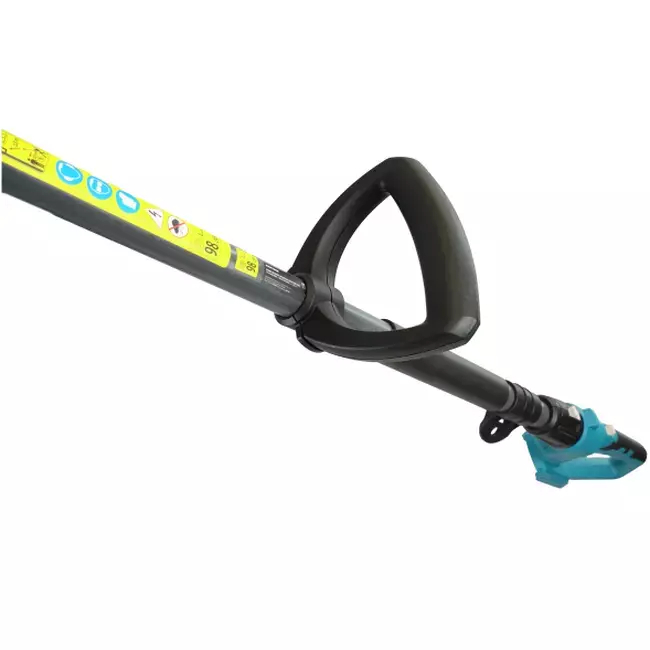

• Telescopic aluminum boom
• Lightweight stable design
• Ability to cut at a height of 3-5m
• Overall length with saw head: min. - 1.9m/max. - 2,7 m
• Overall length with shear head: min. - 2.2m/max. - 3 m

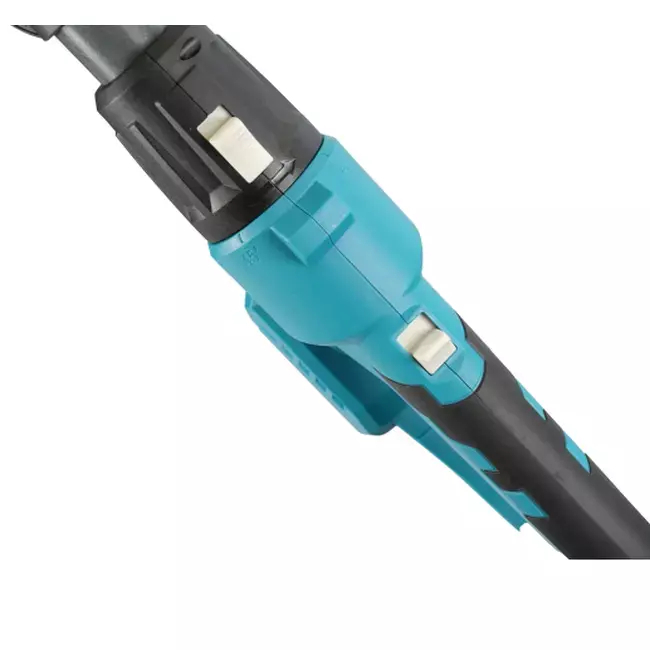

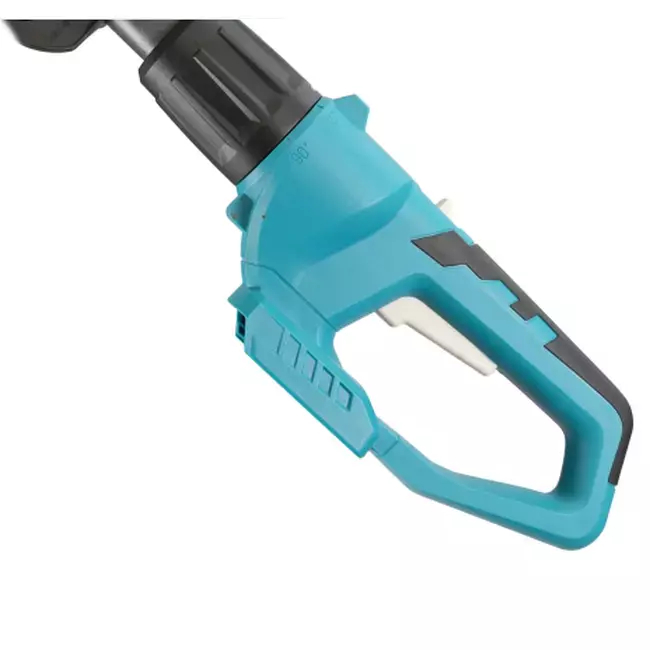

• Adjustable handle angle: -90/0/+90˚ (5 positions)

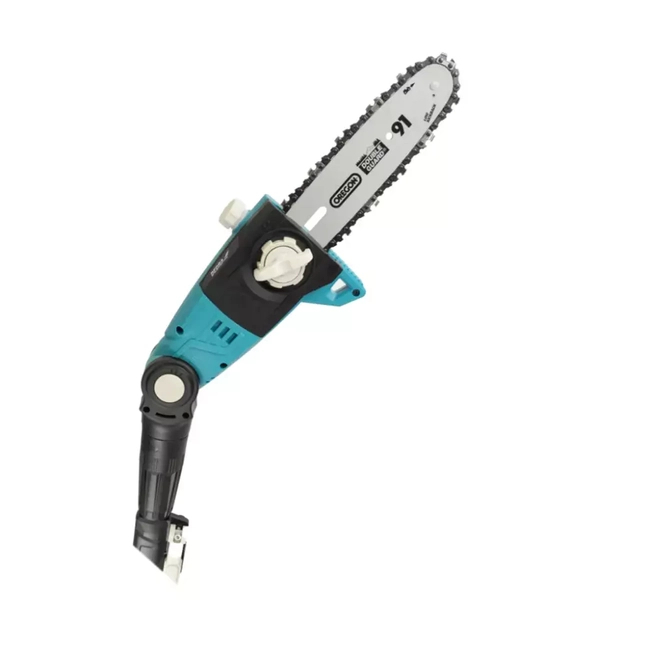

Saw head features 2-in-1 device DED7096:

• Tool-less chain tensioning system
• Automatic chain lubrication system
• Guide bar and chain from the renowned brand OREGON
• Electric boom saw 270cm
• Adjustable cutting head angle: 0/+30˚
• Chain with a chiseled chisel profile

Features of hedge trimmer head 2-in-1 device DED7096:

• Laser-cut blade
• Cutting head angle adjustment in the range: -45 to +90˚
• Cordless boom shear 300cm

Specifications 2-in-1 device DED7096:

• Voltage: 18V
• Saw bar length : 8ʺ(200)mm
• Maximum cutting thickness: 180mm
• Number of chain teeth: 33
• Type of tooth: chamfered chisel
• Guide groove width: 1.3mm
• Chain speed: 5m/s
• Oil tank capacity: 90 ml
• Shear cutting bar length : 16ʺ(416)mm
• Maximum cutting length: 400mm
• Maximum cutting thickness: 16mm
• Speed: 1500RPM
• Weight of body with telescope: 1.89 kg (without battery)
• Scissor head weight: 1.84 kg
• Chainsaw head weight: 1.69 kg
• Approximate operating times for batteries:

  • 2Ah - DED7032: 50 cuts (cutting 80 mm pine wood)

  • 4Ah - DED7034: 110 cuts (cutting pine wood 80 mm)

  • 5Ah - DED7035: 130 cuts (cutting pine wood 80 mm)
  • 6Ah - DED6936: 160 cuts (cutting 80 mm pine wood)

  • 8Ah - DED6937: 210 cuts (cutting pine wood 80 mm)


Completion:

• Boom arm with motor (1 pc)
• Hedge trimmer head (1 pc)
• Head with chain trimmer (1 piece)
