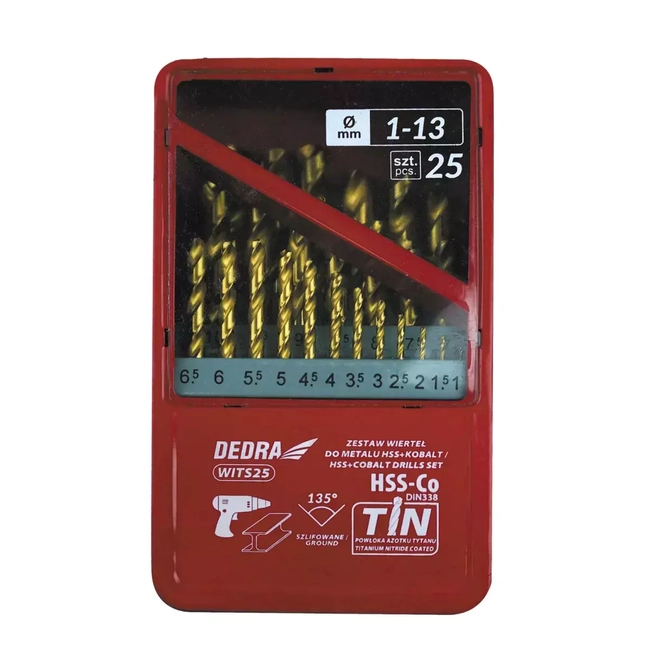

DEDRA WITS25 HSS+COBALT+TIN METAL DRILL BIT SET, 135°, 25PCS

Name: DEDRA WITS25 HSS+COBALT+TIN METAL DRILL BIT SET, 135°, 25PCS
Brand: DEDRA
Price: 106.02 EUR
Availability: InStock

Add to shopping list

Size

universal

List price106,02 €

106,02 €

incl. VAT / pcs.

Lowest price in 30 days before discount:

Express checkout 1-Click(without registration)

Product Available

Free and fast delivery from 117,12 €

14 days to return

Find out in which store you can check the product and buy it right away

DEDRA WITS25 HSS+COBALT+TIN METAL DRILL BIT SET, 135°, 25PCS

universal

Safe shopping

Average 4.7 on Opineo see

Free returns

Authorized distributor internet, see

Guarantee of reliability and timeliness

Set of 25pcs cobalt titanium nitride coated metal drill bits with cylindrical shank. Due to the 5% cobalt content, the drill bit's resistance to thermal damage during drilling has been increased. Thanks to the ground spiral, which ensures a low coefficient of friction, and the excavated material is efficiently discharged outside the hole. This reduces the danger of chips sticking to the drill bit and increases drilling efficiency. Thanks to this design, the resulting vibrations are reduced, which translates into the durability of the drill bit. Apex angle of 135° ensures perfect centering. Drill provides 40-60% faster drilling compared to standard HSS drill bits. Suitable for machining: steel, cast iron, aluminum, copper, brass. Manufactured in accordance with DIN338 standard. All packed in a handy, convenient box.

Technical Data:

Drill type: cobalt metal drill bit with titanium nitride coating
Drill angle: 135 degrees

Overall length [mm]	Working length [mm]	Diameter [mm]
34	12	1
40	18	1,5
49	24	2
57	30	2,5
61	33	3
70	39	3,5
75	43	4
80	47	4,5
86	52	5
93	57	5,5
93	57	6
101	63	6,5
109	69	7
109	69	7,5
117	75	8
117	75	8,5
125	81	9
125	81	9,5
133	87	10
133	87	10,5
142	94	11
142	94	11,5
151	101	12
151	101	12,5
151	101	13

Completion:

Number of drill bits per package: 25 pcs

Technical specifications:

EAN: 5902628940322
Brand: DEDRA
Symbol: WITS25
Manufacturer code: 5902628940322
Drill length [mm]: 34, 40, 49, 57, 61, 70, 75, 80, 86, 93, 101, 109, 117, 125, 133, 142, 151
Drill tip angle [°]: 135
Number included: 25
Material: HSS high speed steel, 5% cobalt+TiN
Destination: Metal
Type: Set -TiN cobalt metal drill bit
Series: DEDRA
Drill diameter [mm]: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13
Handle type: Waltz
Drill type: Metal drill

Brand:

DEDRA

Symbol:

WITS25

Producer code:

5902628940322

Warranty

DEDRA Warranty for 2 Years
