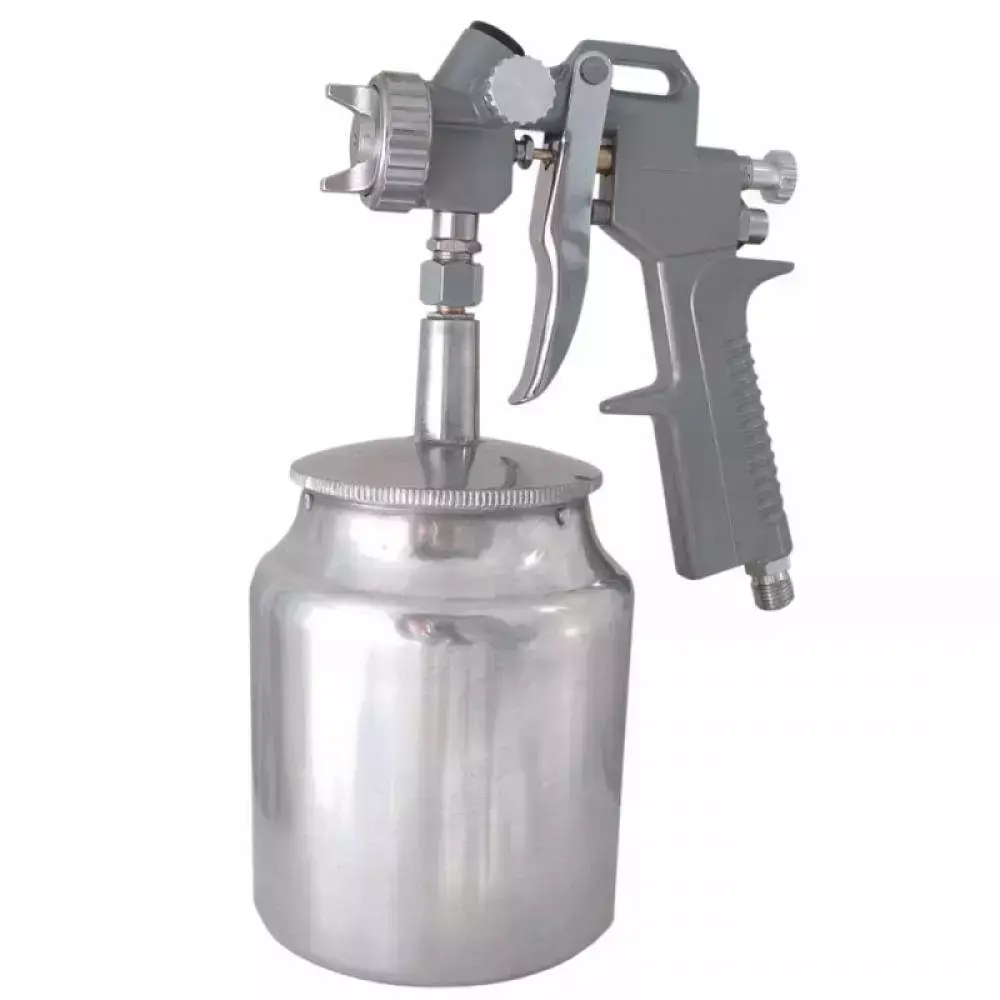

PAINT GUN PANSAM A533070 LOWER TANK

Spray gun with bottom tank, is designed for painting with solvent-based and water-based paints such as latex paints, acrylic paints, stains or primers for metal. The gun is equipped with a lower tank with a capacity of 750ml. On the back of the gun is a knob with which we can adjust the amount of paint fed to the gun. In addition, we can adjust the shape of the jet we get when painting. This is done by the pattern setting knob located on the front of the gun.

Technical data

• Nozzle diameter: 1.5mm
• Connection diameter: 1/4"
• Recommended operating pressure: 3-4 bar
• Air demand: 118-201 l/min
• Painting width: 180-250mm
• Weight: 0.80 kg

Completion:

• Gun
• Paint tank
