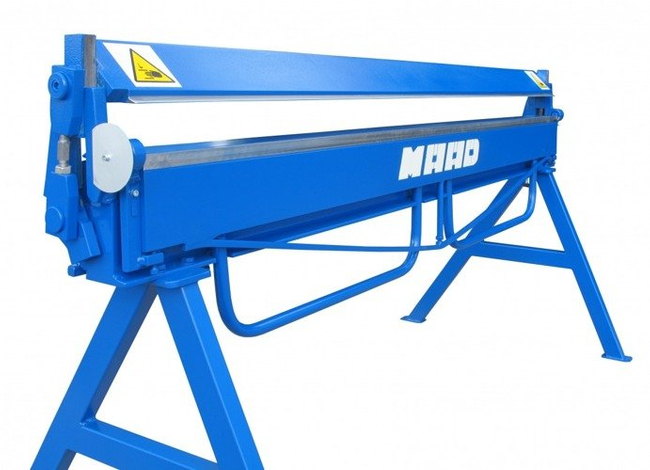

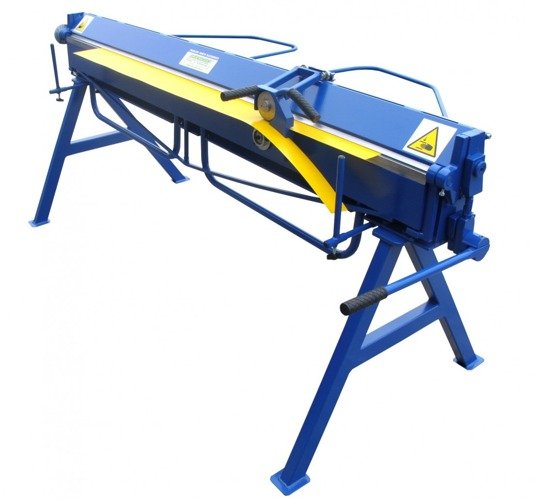

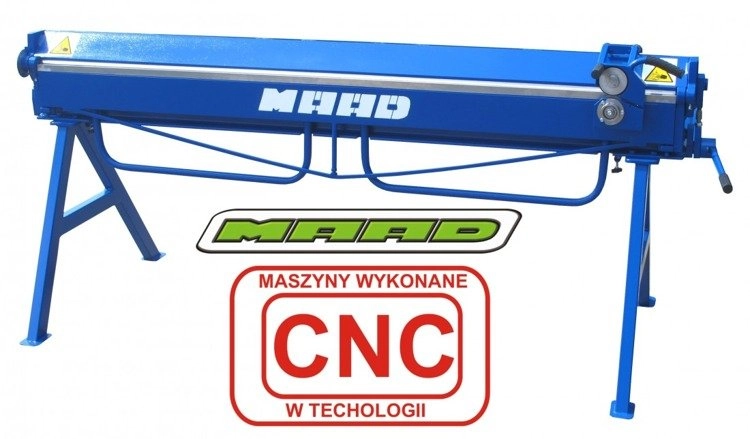

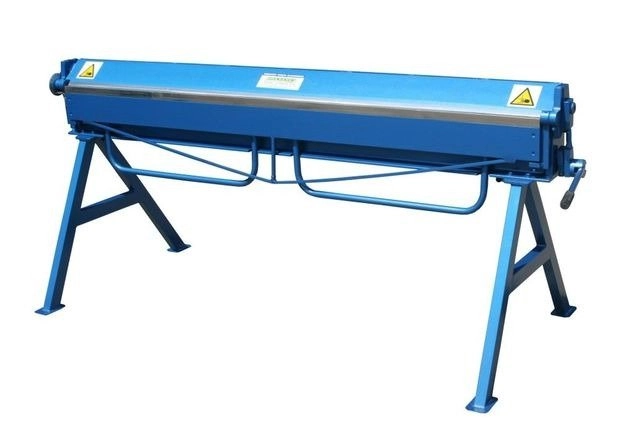

BENDING MACHINE ROOFING EDGE BENDER FOR SHEET METAL WITH CUTTING MAAD ZG-2000 /1.5mm
- Bending machine with a working width of 2040 mm for steel sheets up to 1.5 mm thick.
- Machine made with CNC technology

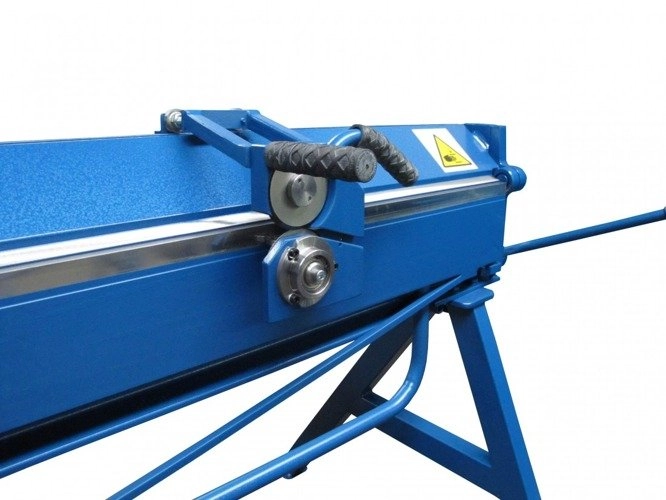

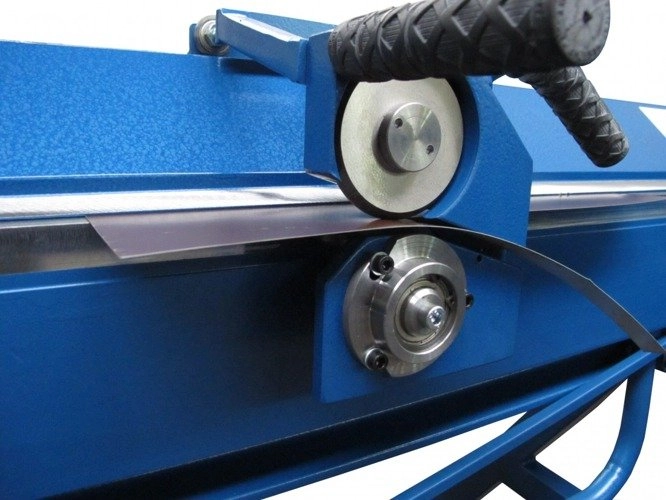

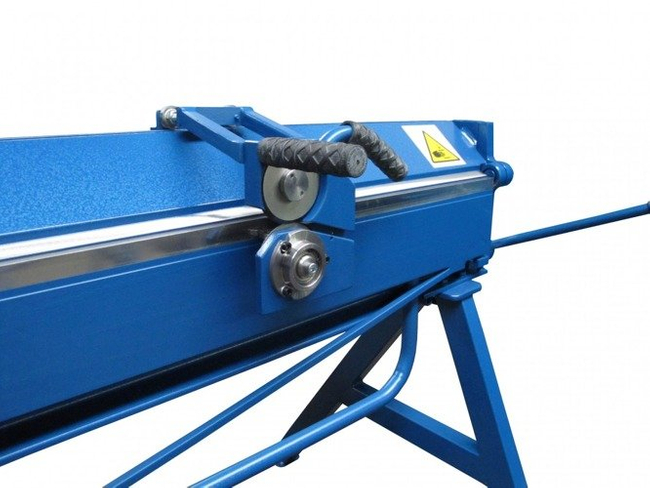

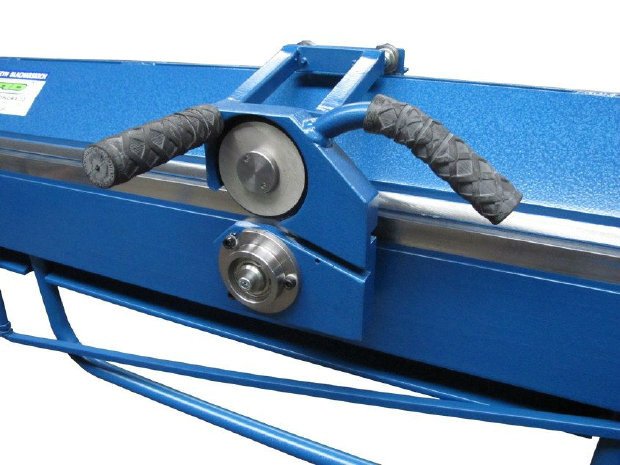

The design of the machine allows the installation of roller shears on the pressure beam for cutting the processed sheet metal along a straight line. Shears are available on our other auctions.
Technical parameters/equipment:
working width - 2100 mm
max. thickness of the bent sheet - 1.5 mm ( for Rm<400MPa )
width of the bending beam - 25 mm
maximum bending angle - 135 degrees
weight of the machine - 320 kg
detachable legs - makes transportation and loading much easier

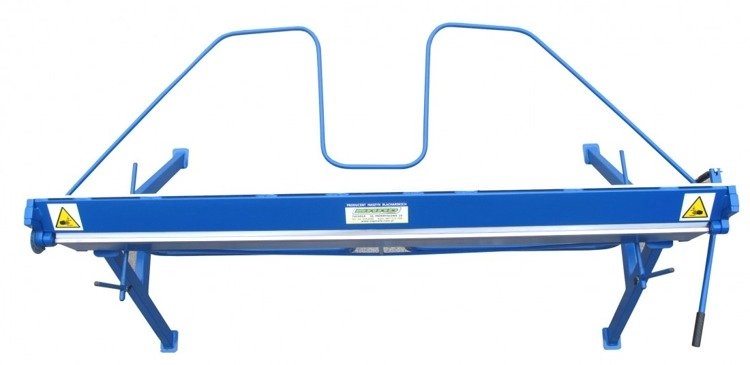

rack worn on the back of the machine to support the sheet metal
gauges for cutting sheet metal
protractor as standard equipment

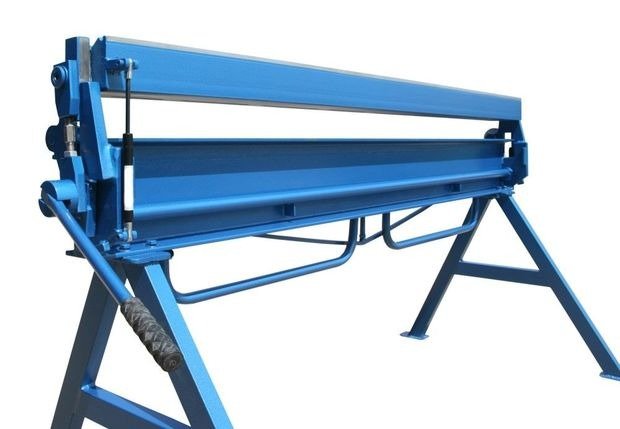

two gas cylinders to assist in lifting the pressure beam
gas cylinder to assist in lifting the bending beam
Machine dimensions:
height - 1,065 mm
width - 2,370 mm
depth - 930 mm

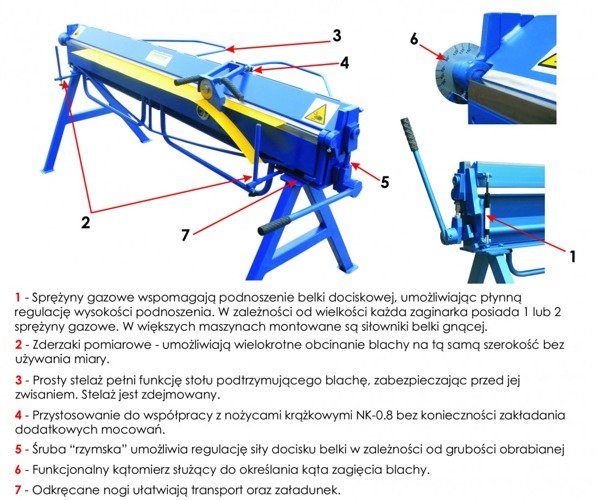

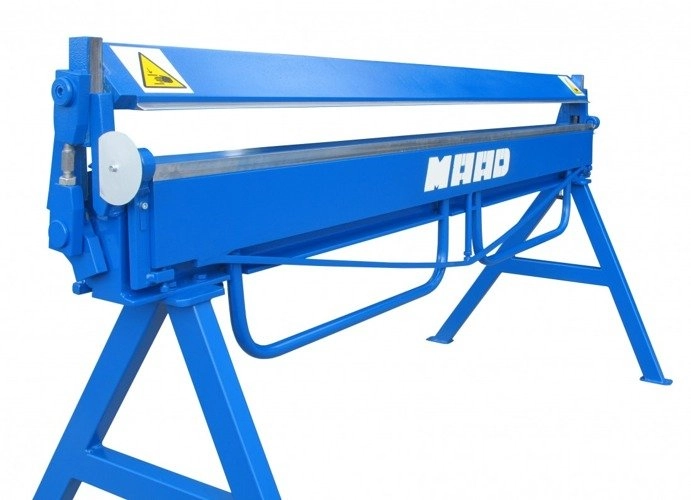

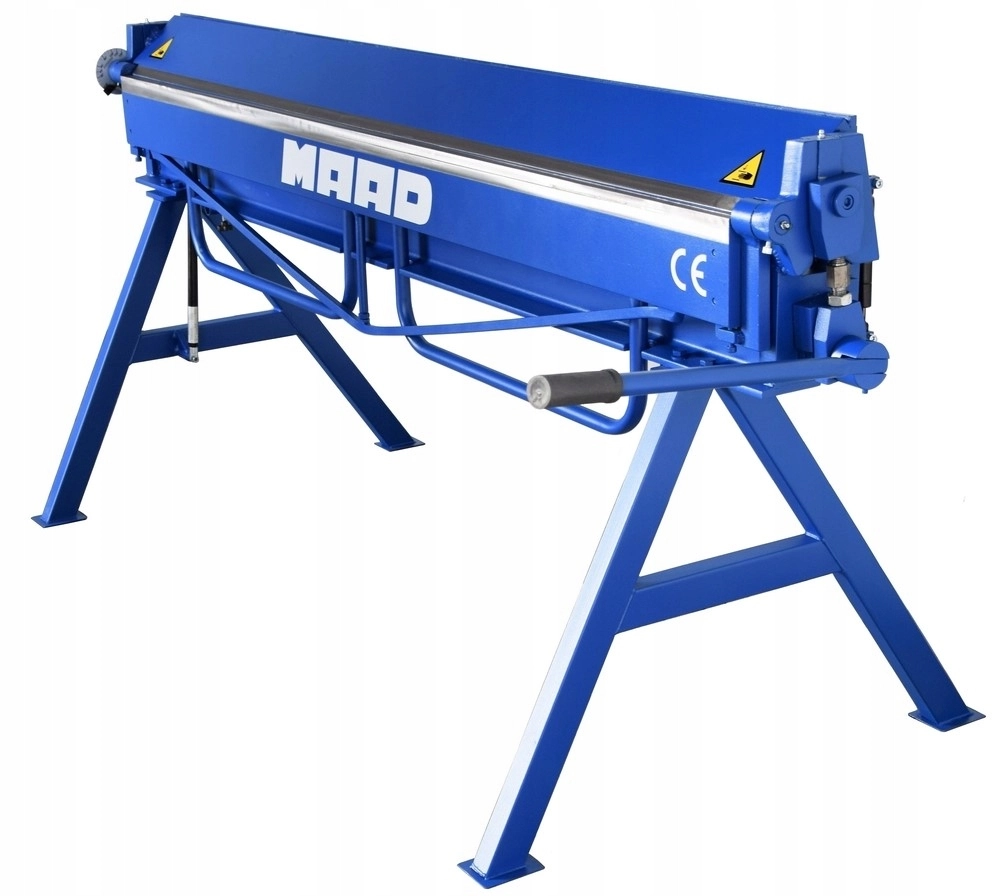

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

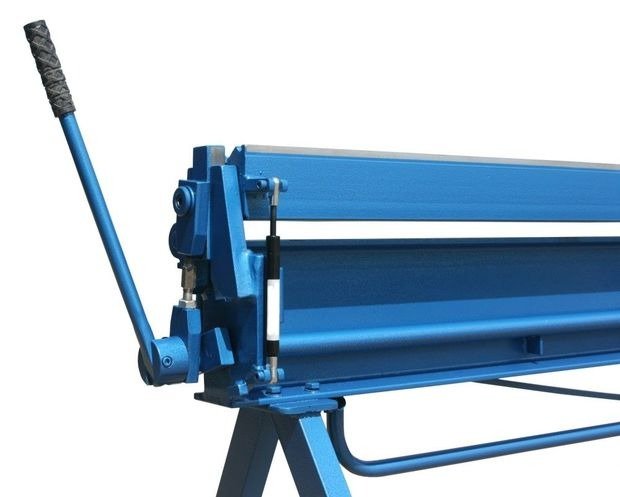

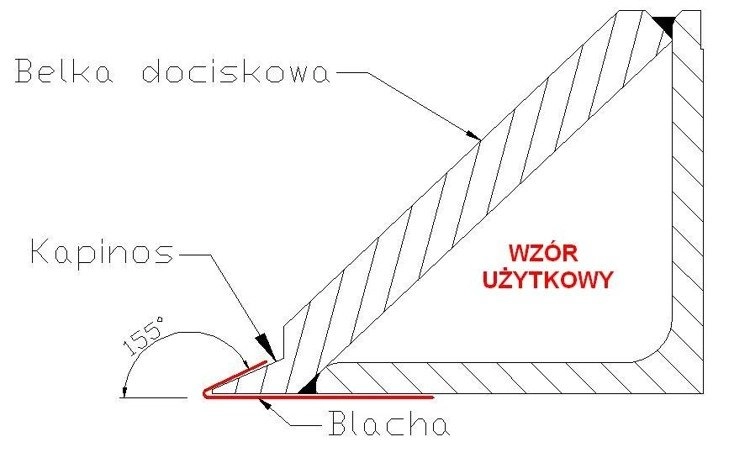

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Two gas cylinders assist in lifting the pressure bar. The pressure beam is designed so that its upper part is a guide for the roller shears.

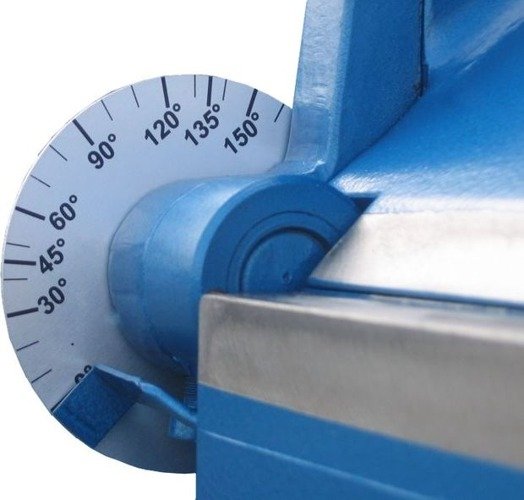

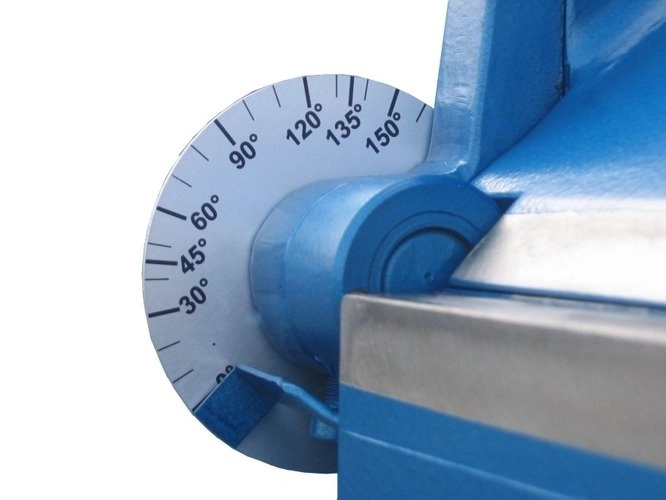

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.
The bending beam has an adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.
Working beams are equipped with turnbuckles for setting the straightness of the working edges.
Bending machine components are made on precision CNC machine tools.
The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
