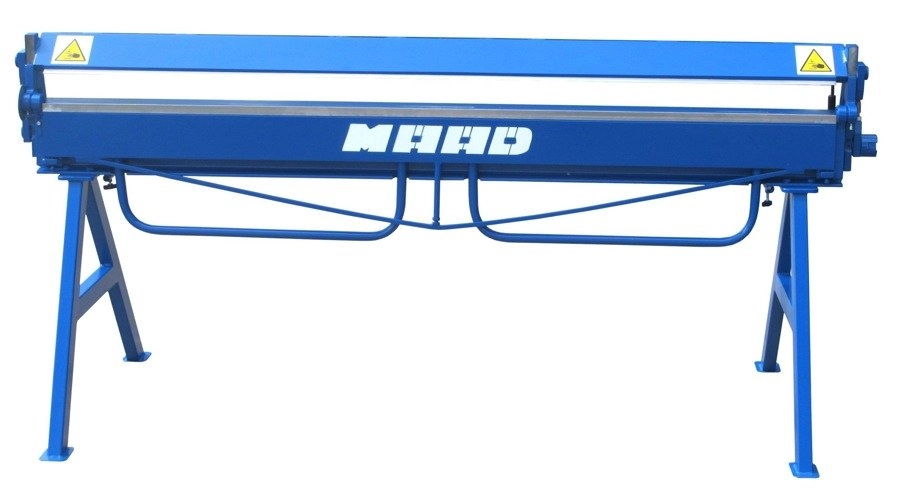

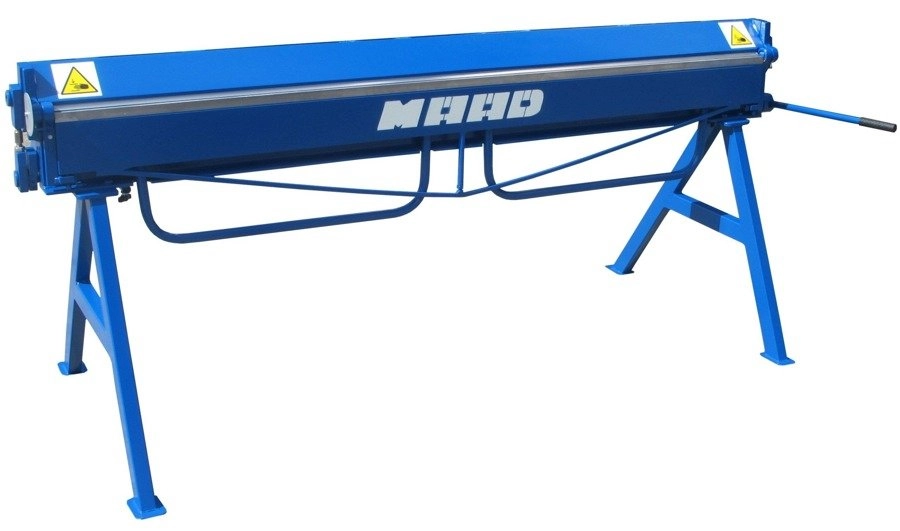

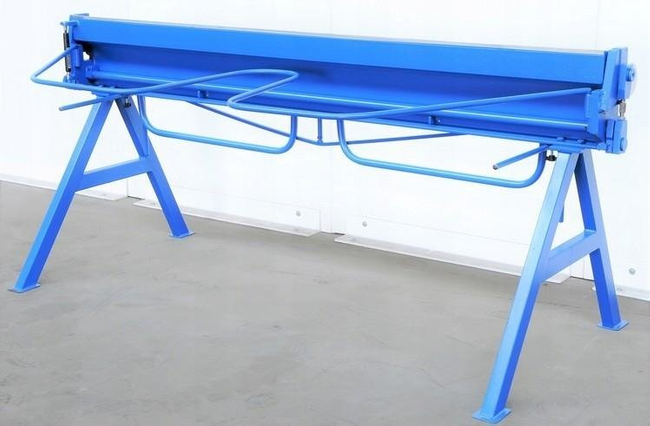

MAAD ZG-2000/0.7 BENDING DEBORASTIC CUTTING ROUNDER MAAD ZG-2000/0.7 mm

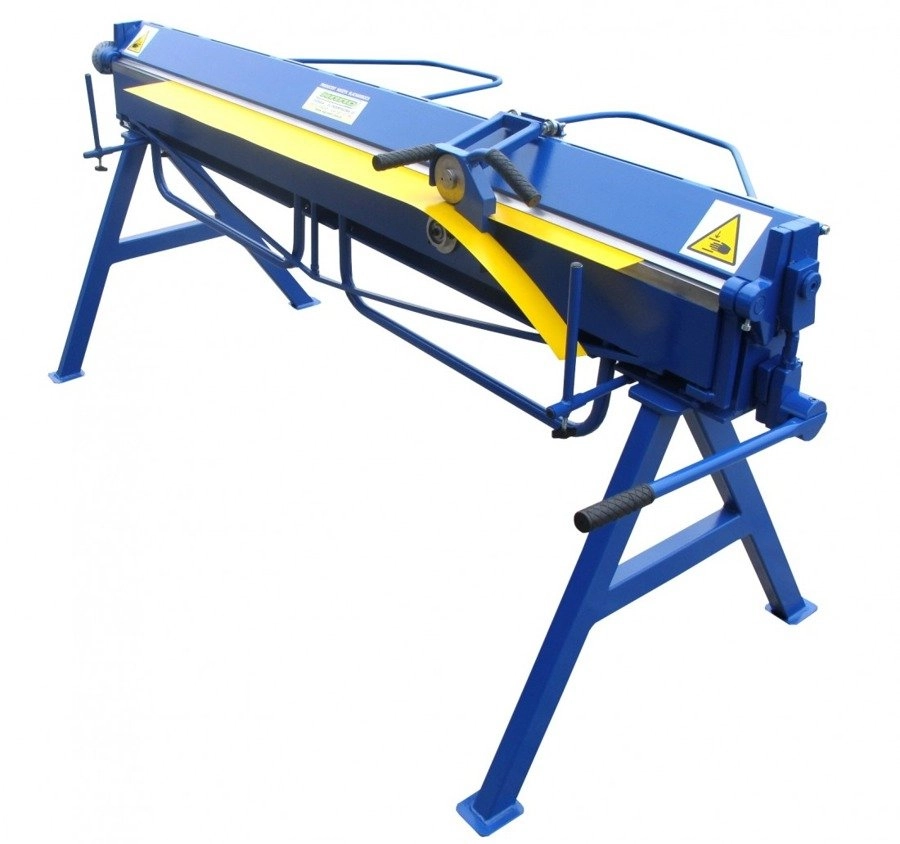

- MAAD ZG-2000/0.7 bending machine is a machine with a compact design, simple in operation, created mainly for roofers. Functional and reliable in use, guarantees trouble-free operation without deformation of working parts.
MAAD ZG-2000/0.7 bending machines are used by such companies as BLACHOTRAPEZ, RUUKKI, FAKRO that is companies closely related to the roofing industry!
Technical parameters/equipment:
- - working width - 2140 mm
- - max. thickness of the bent sheet - 0.7 mm ( for Rm<400MPa )
- - clearance between beams - 85-100 mm
- - width of the bending beam - 15 mm
- - maximum bending angle - 155 degrees
- - weight of the machine - 200 kg
- - detachable legs - makes transportation and loading much easier

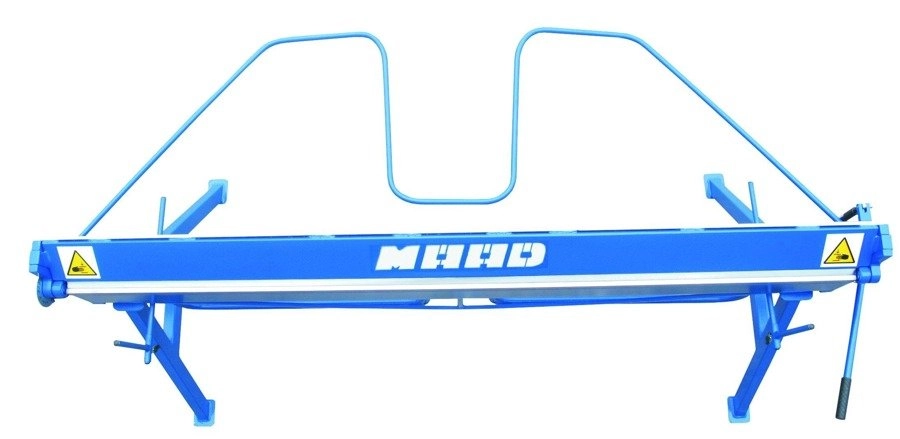

- - overlapping rack attached to the back of the machine to support the sheet metal
- - gauges for cutting sheet metal
- - protractor as standard equipment
- - pressure beam gas cylinder
Machine dimensions:
- height - 980 mm
- width - 2,350 mm
- depth - 990 mm

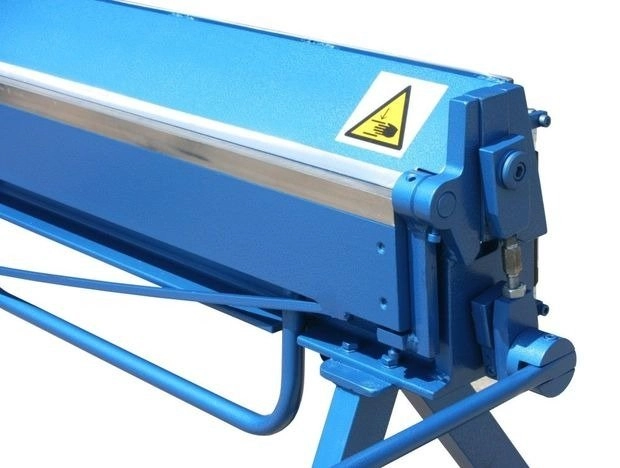

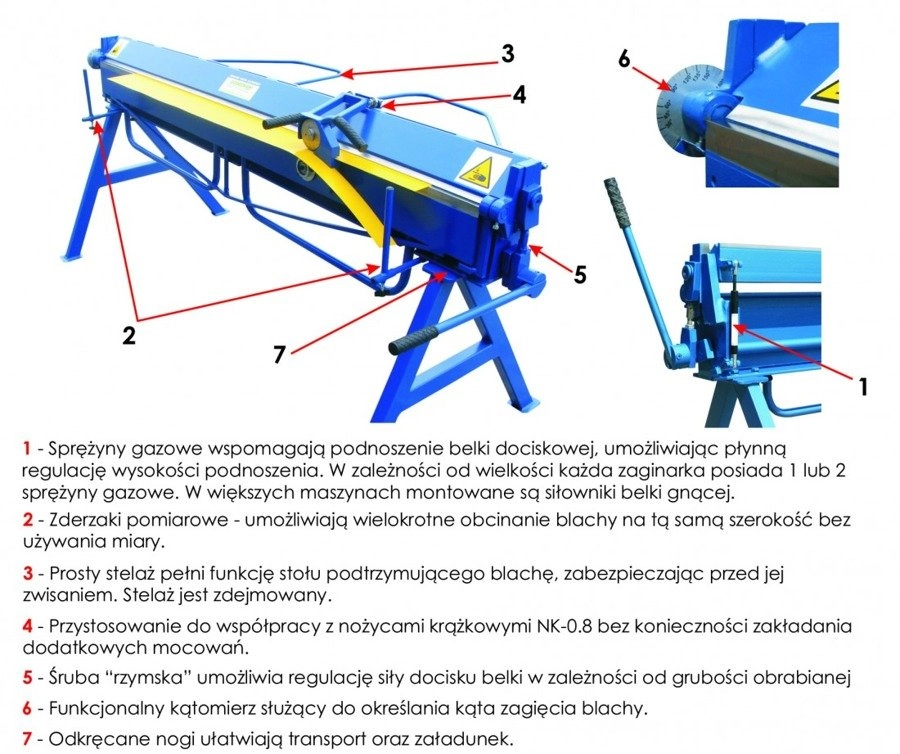

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

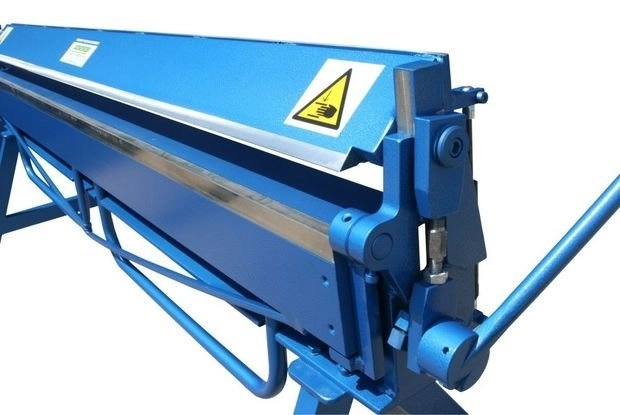

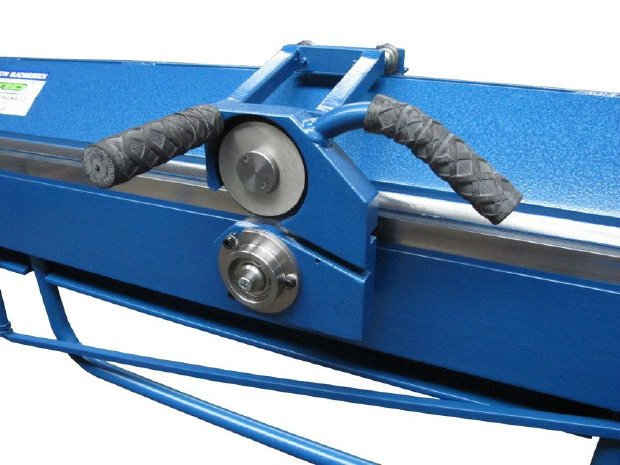

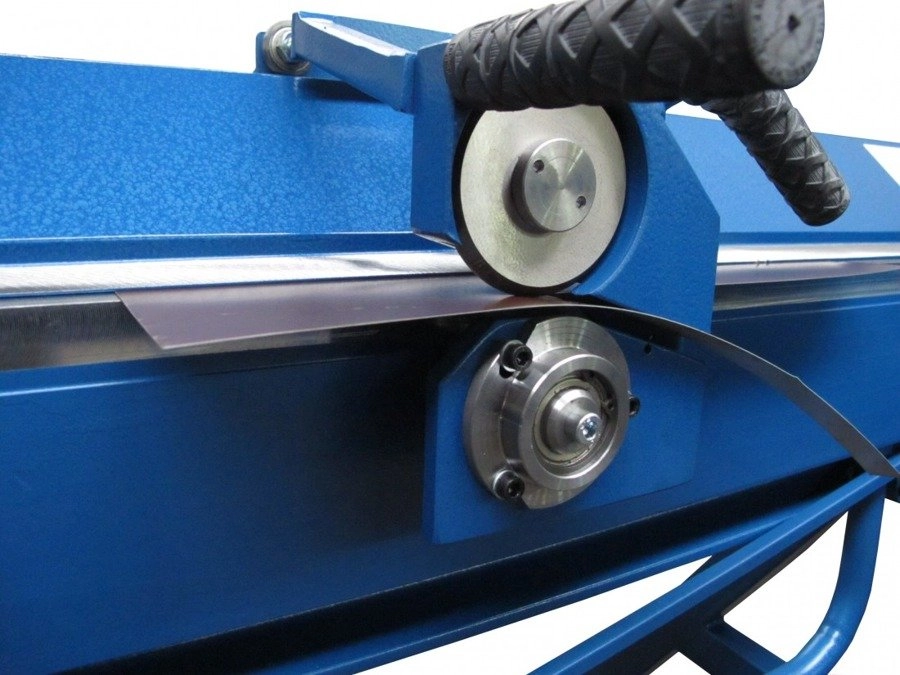

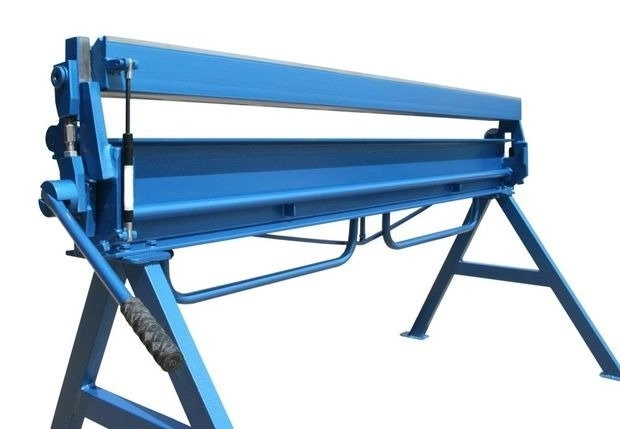

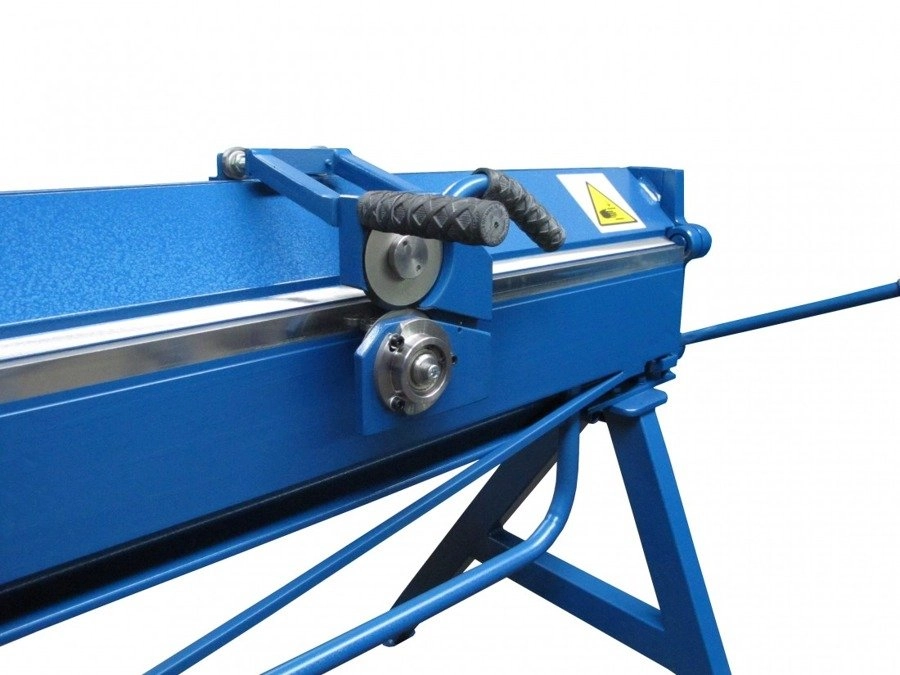

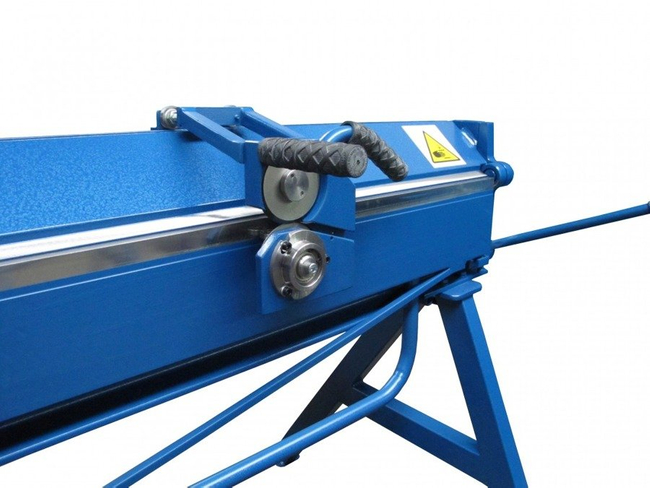

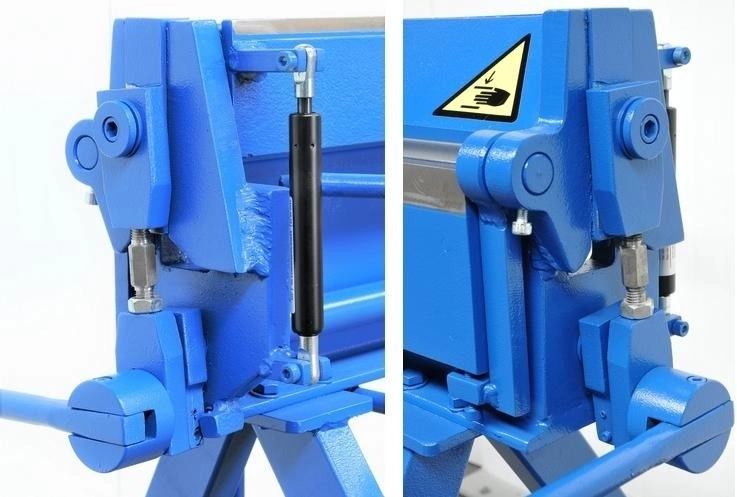

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Gas cylinder assists in raising the pressure beam. The pressure beam is designed so that its upper part is a guide for the roller shears.

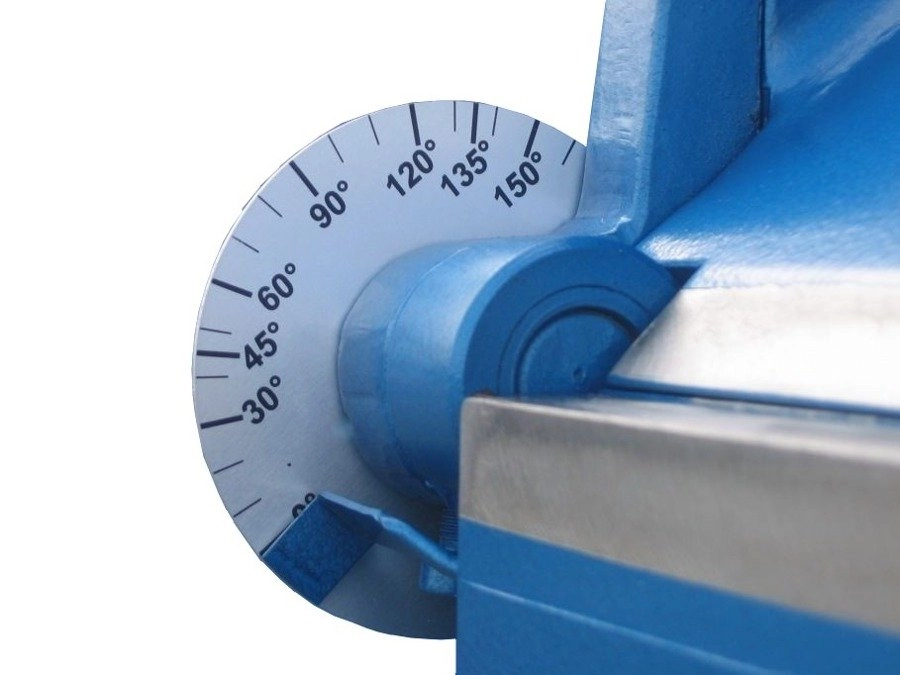

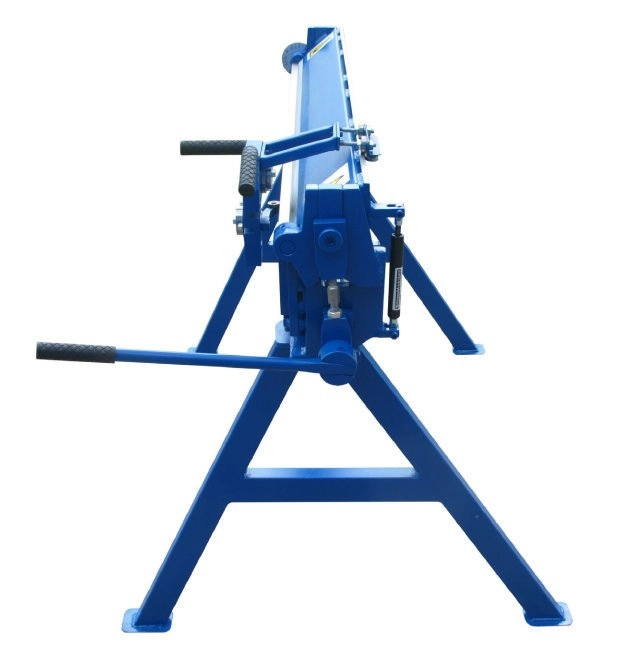

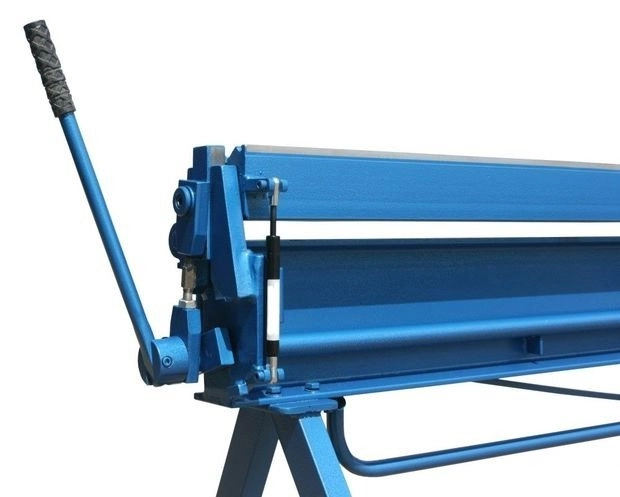

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.
The pressure beam is height adjustable relative to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.

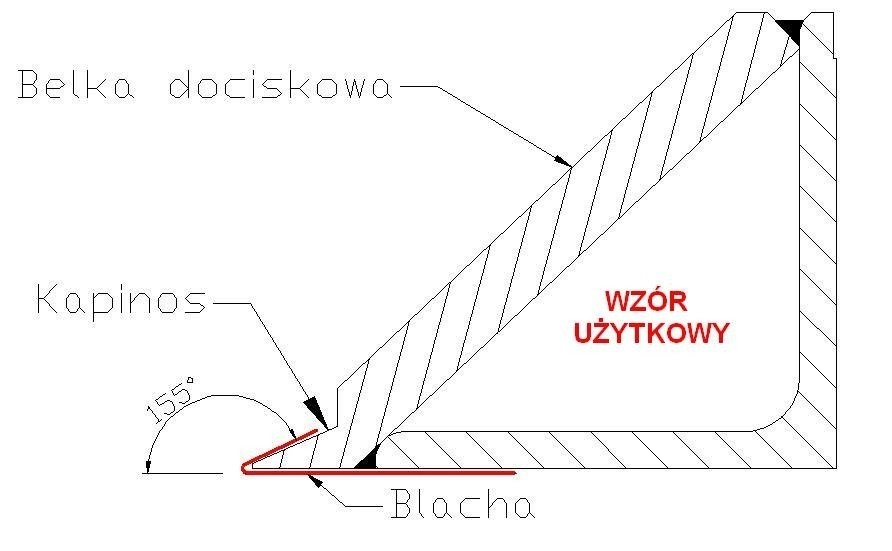

MAAD ZG-2000/0.7 roofing bending machine has a specially milled KAPINOS in the body of the pressure beam that allows bending of sheet metal up to an angle of 155 degrees.

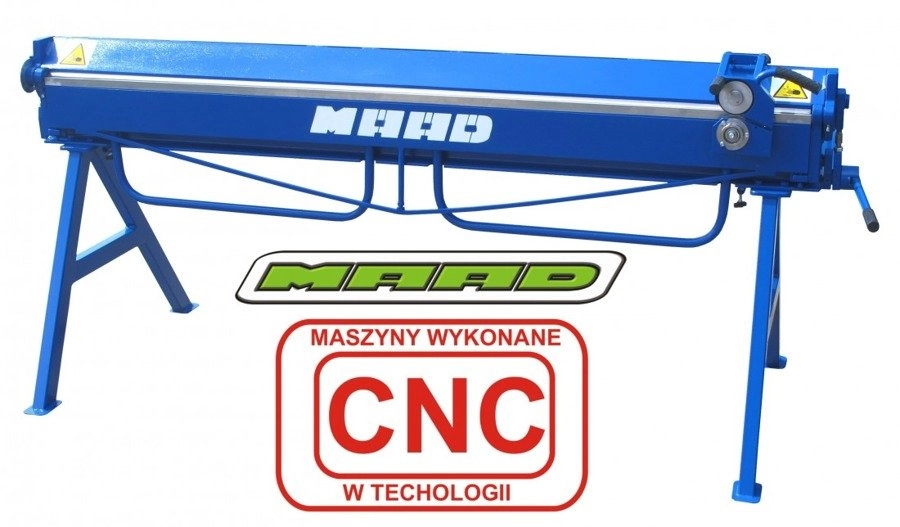

Bending machine components are made on precision CNC machine tools.
The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
