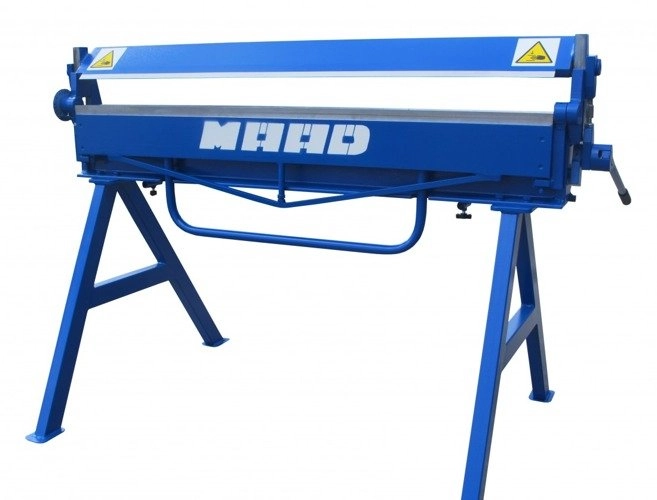

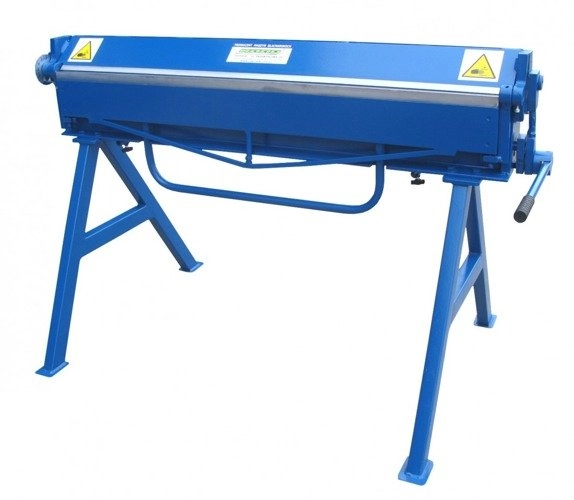

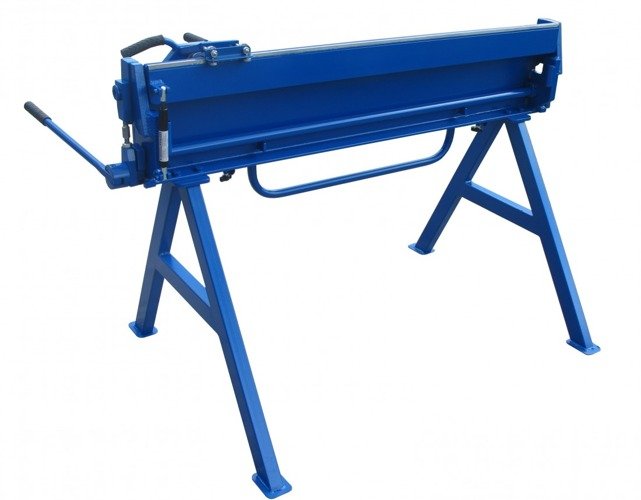

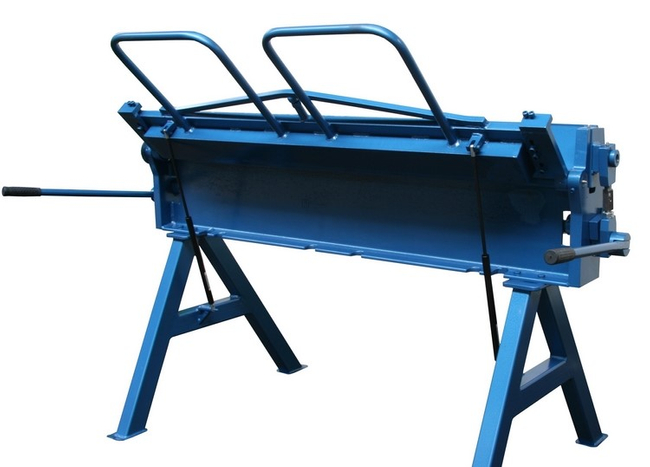

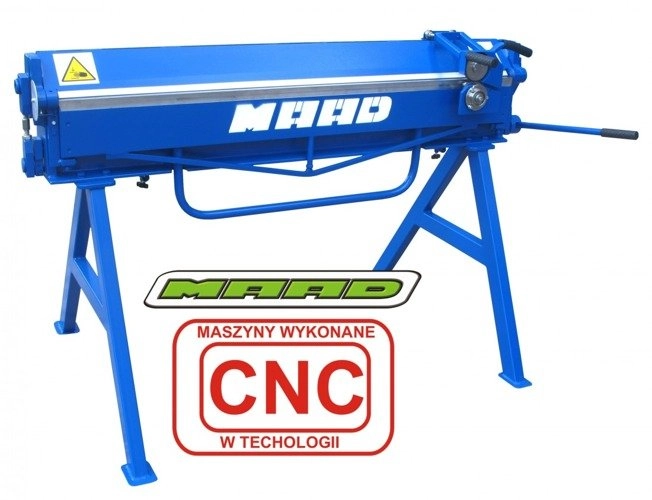

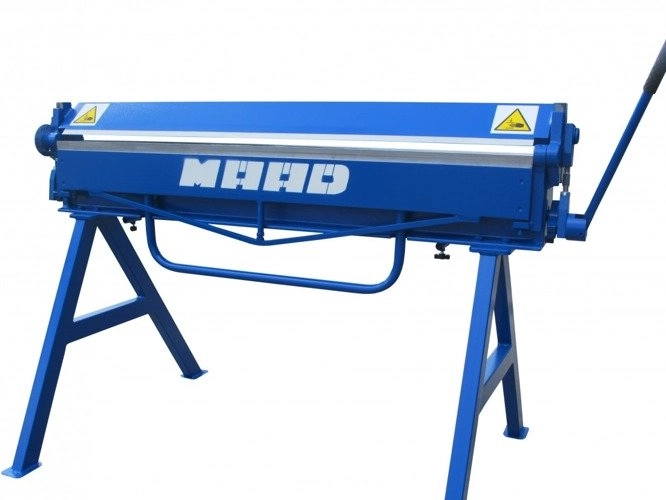

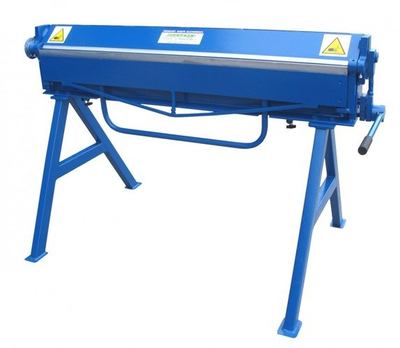

BENDING MACHINE ROOFING SHEET METAL BENDING MACHINE WITH CUTTING MAAD ZG-1600 /2.5mm

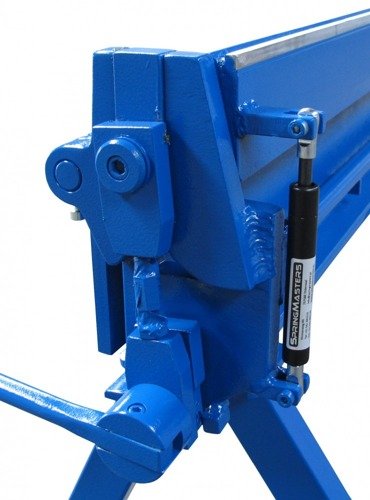

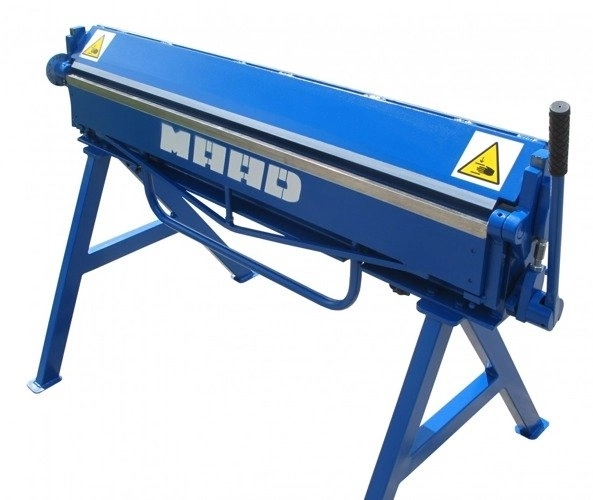

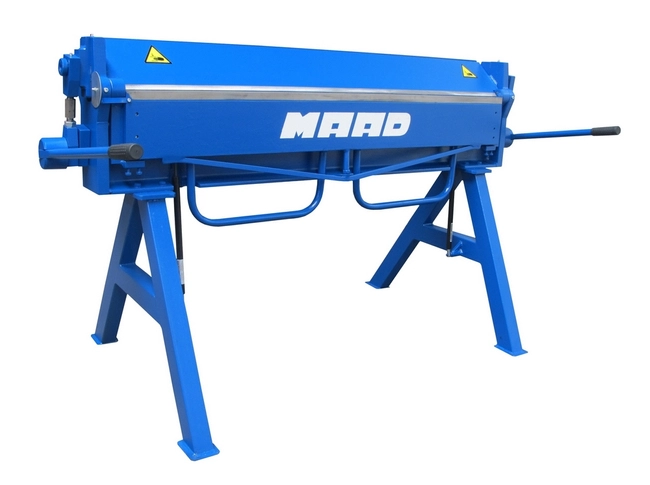

Bending machine model characterized by mechanisms and working elements of exceptional rigidity, which allows bending of sheets up to 2.5 mm thick. The system for adjusting the position of the working beams ensures that the correct bending shape is obtained for different thicknesses of the sheets to be processed. Machine equipped with two gas cylinders to assist in lifting the pressure beam and two gas cylinders to assist in lifting the bending beam.

The design of the machine allows the installation of roller shears on the pressure beam for cutting the processed sheet metal along a straight line.

Technical parameters/equipment:

• - working width - 1600 mm
• - max. thickness of the bent sheet - 2.5 mm ( for Rm<320MPa )
• - width of the bending beam - 30 mm
• - maximum bending angle - 135 degrees
• - clearance between beams - 85-100 mm
• - weight of the machine - 340 kg
• - detachable legs - makes transportation and loading much easier

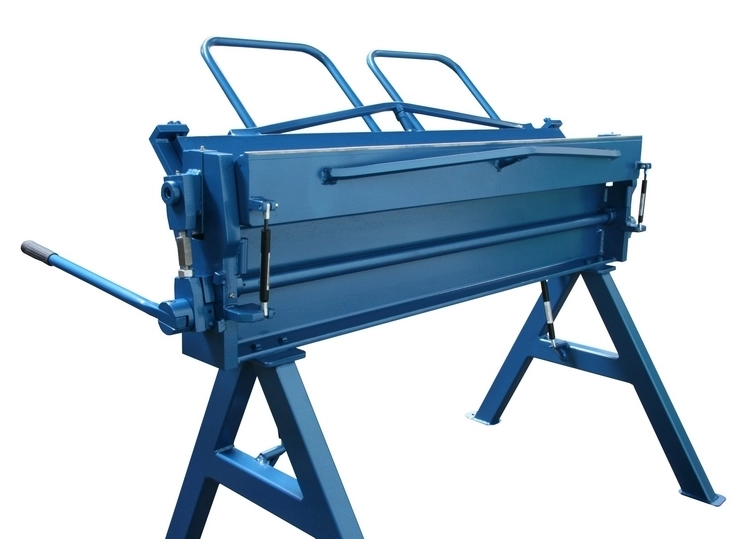

• - rack worn on the back of the machine to support sheet metal
• - gauges for cutting sheet metal
• - protractor as standard equipment
• - two gas cylinders to assist in lifting the bending beam
• - two gas cylinders to assist in lifting the pressure beam

Machine dimensions:

• height - 1,150 mm
• width - 2,080 mm
• depth - 1,000 mm

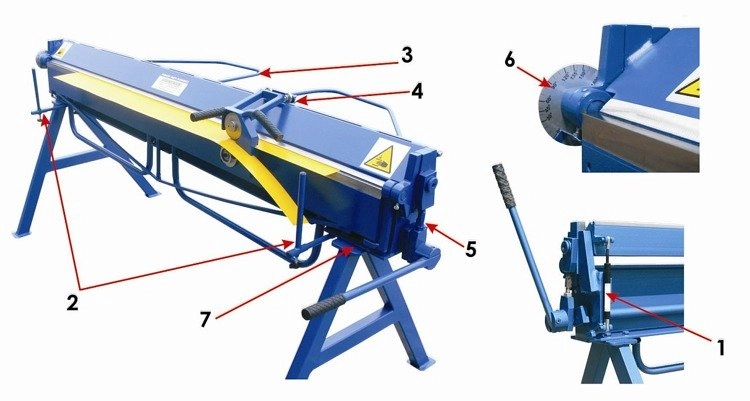

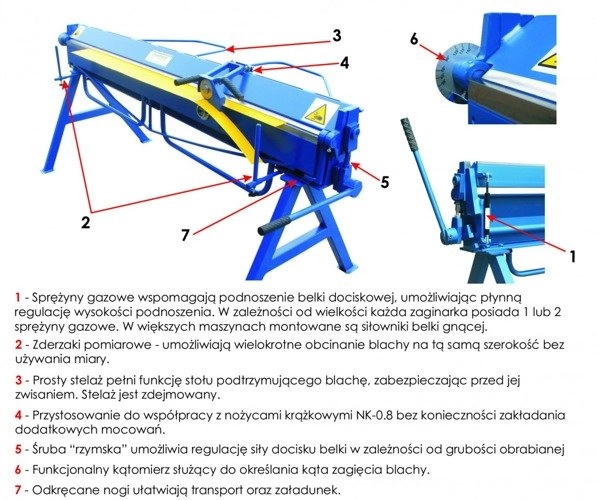

The main working elements of the bending machine are the beams: fixed, pressure and bending beams.

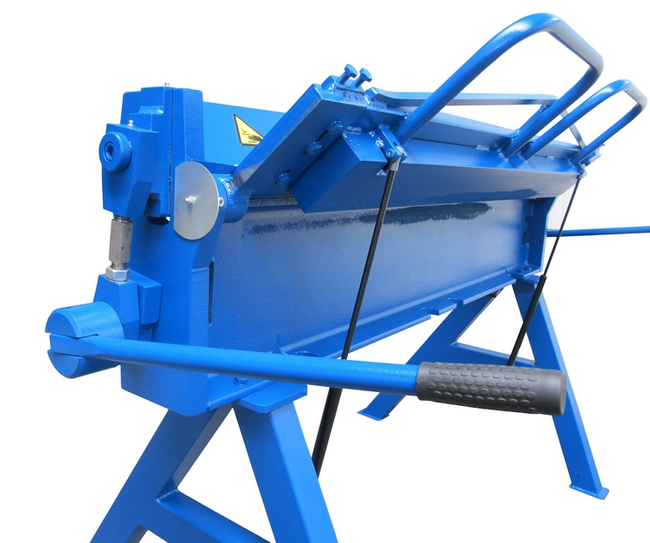

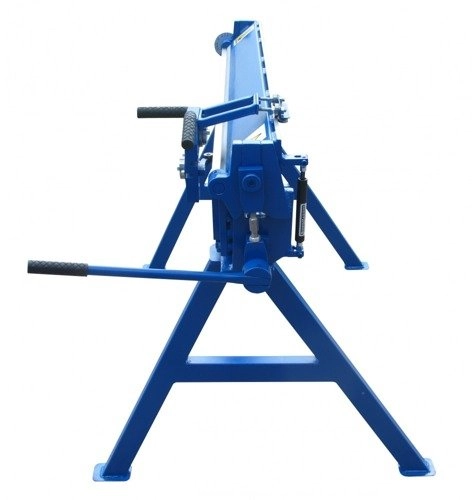

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Two gas cylinders assist in lifting the pressure bar. The pressure beam is designed so that its upper part is a guide for the roller shears.

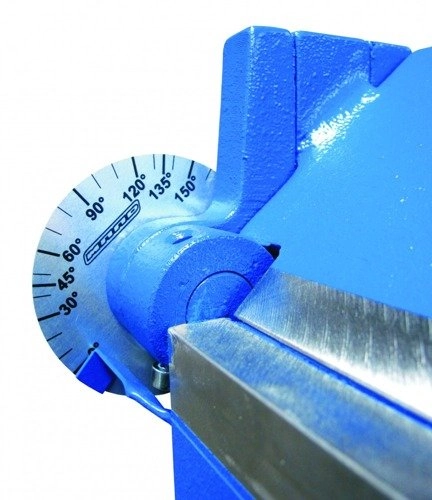

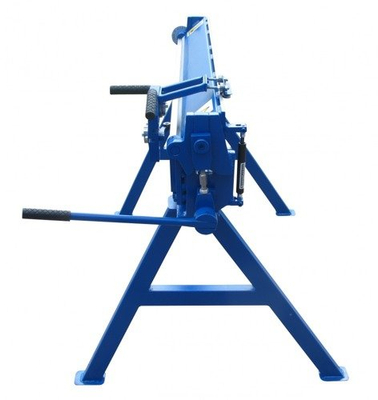

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Two gas cylinders assist in lifting the bending bar. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.

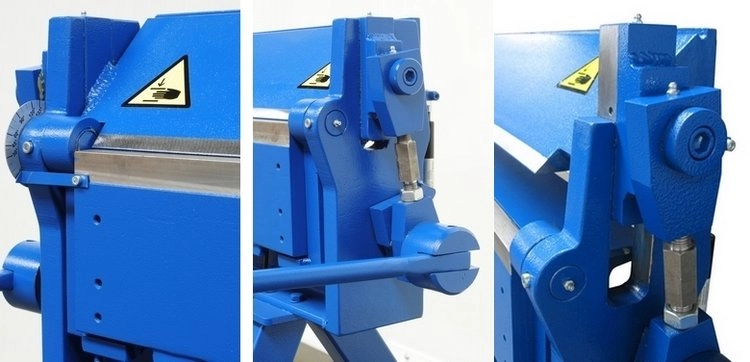

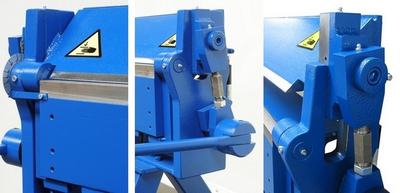

The bending beam has an adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.

Working beams are equipped with turnbuckles for setting the straightness of the working edges.

Bending machine components are made on precision CNC machine tools.

The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
