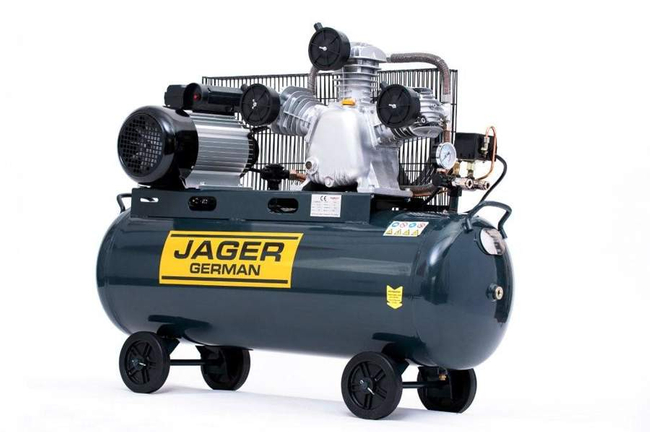

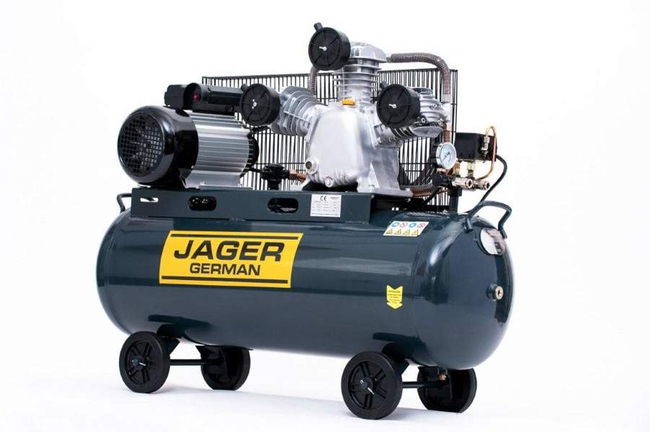

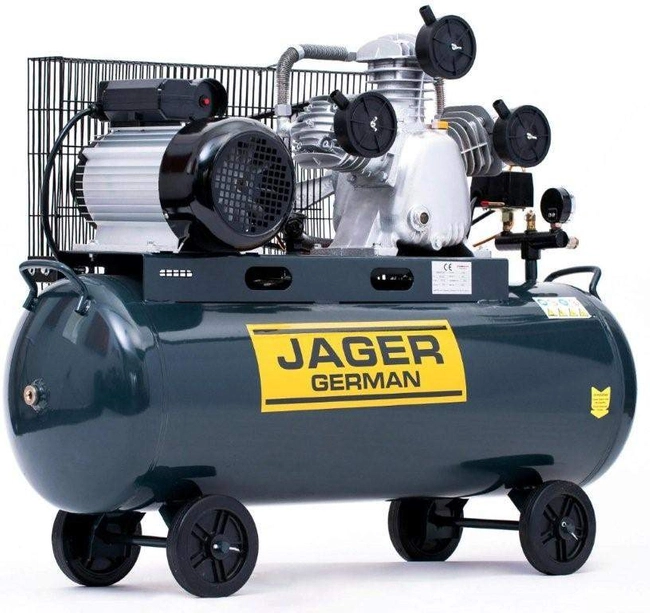

JAGER GERMAN 100 PISTON AIR COMPRESSOR 8BAR 499L/Min 230V Powerful Thing

PISTON AIR COMPRESSOR JAGER GERMAN 100L 8 BAR/230V

499L/min

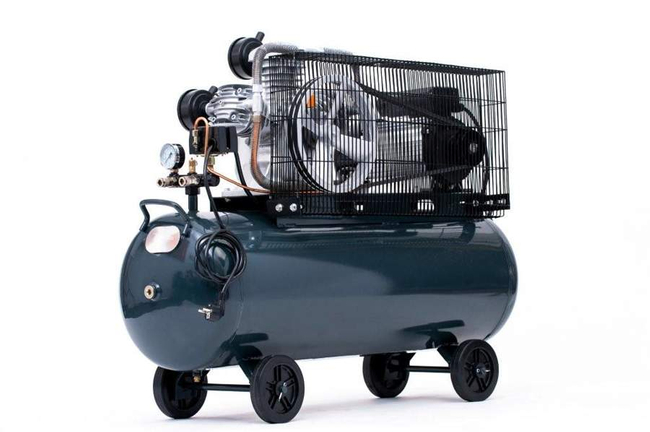

Modern oil piston compressor JAGER GERMAN 100L 8BAR is an equipment dedicated to a variety of workshop applications, which will also work well in private (home) use. The device is characterized by modern design and high efficiency of operation, so it can be used in the implementation of a number of works with pneumatic tools. The compressor will also prove useful as an auxiliary device, allowing you to quickly inflate car, bicycle or motorcycle tires, as well as when carrying out a number of cleaning jobs, in the workshop, garage or outdoors. The effective capacity of the JAGER GERMAN 100L 8 BAR compressor is 320l/min, and the theoretical capacity declared by the manufacturer is 499l/min, which makes it a device with a wide range of application possibilities, designed for private and professional applications - workshops. The device is equipped with four wheels, making it effortless to transport.

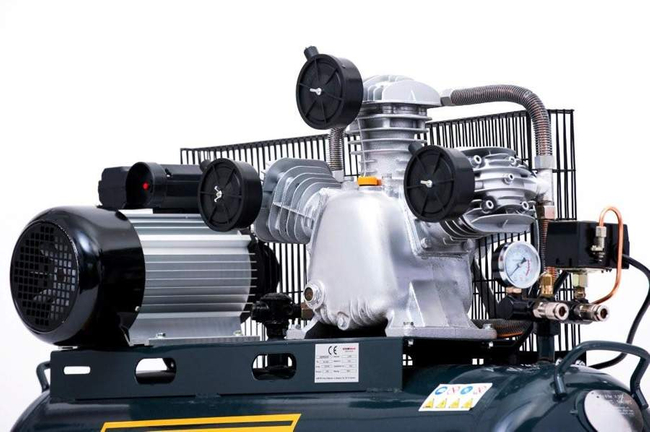

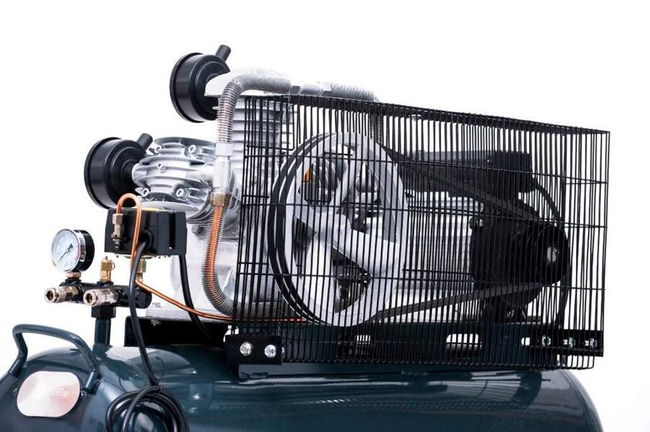

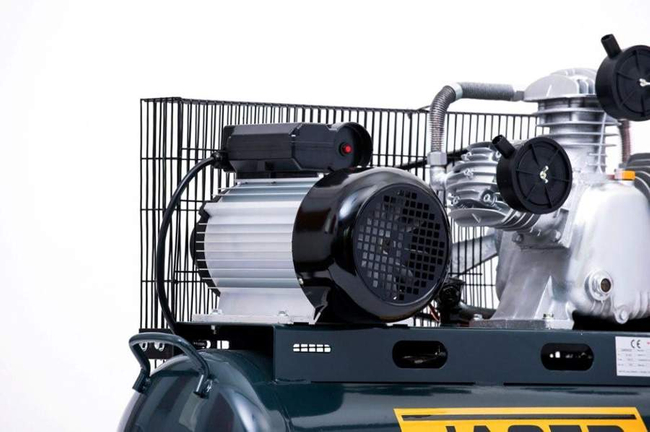

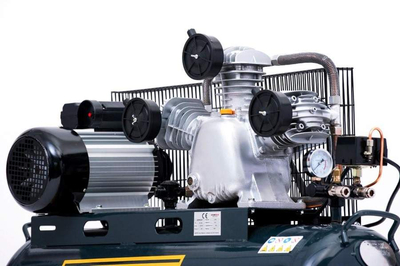

Compressor JAGER GERMANIUM 100L has a tank with a capacity of 100 liters. The maximum pressure produced in the cylinder is 8 bar which gives a very wide application and high output capacity.The electric motor driving the compressor is characterized by a power output of 3000W - 4.0 HP. Connection to a regular outlet (230V) allows you to use it virtually anywhere. Construction with 3 pistons oil-cooled and drive transmission through the belt ensures stability and long life of the device. An air filter is attached at the cylinder. The compressor has adjustable valves with pressure gauges indicating the pressure - 2 outlets each at the front and rear of the compressor ( quick connectors ) +1 output + additional outlet on 3/4-inch cylinder for connection of additional cylinder or workshop installation. Convenient on/off switch for on/off and continuous operation (compressor automatically shuts off when maximum pressure is reached).

• Operating pressure control
• Thermal overheating protection
• Tank with safety valve

Technical parameters

• Plug-in power supply, single-phase.
• Tank - 100 liters
• Supply voltage - 230V / 50 Hz
• Maximum tank pressure - 10 BAR
• Operating pressure of the pump - 8 BAR
• Engine power - 3 kW - 4 hp
• Theoretical capacity - 499 l/min
• Effective capacity - 320 l/min
• Test actual, effective capacity on blowdown on tap - 350 l/min.
• Engine speed - 2820 rpm
• Pump rotation - slow speed type
• Sound pressure level - 82.4 dB (A)
• Sound power level - 97 dB (A)

Each purchased compressor has complete documentation, required by law, min. by the Office of Technical Inspection ( UDT )

Additional compressor oil - FREE of charge !!!

You get:

• Compressor
• Safety switch
• 2 quick connectors
• Air filters
• One pressure gauge showing pressure.
• Drain valve for accumulated water in the tank.
• No outlets on the side of the cylinder as shown in the photos - instead one outlet but with a larger cross section on top of the tank.

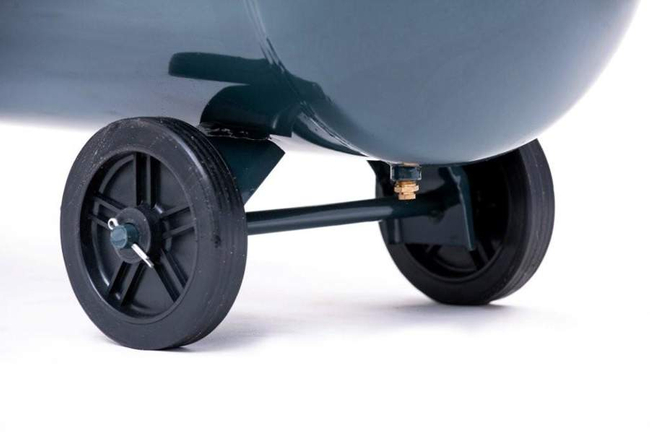

• Four very large, comfortable wheels.
• Comprehensive instruction manual in j. polish.

Tanks are made of thick, approved metal sheets steel z top steel mills.
High welding tightness and accuracy is ensured by automated robots welding machines, which are controlled numerically.

Applynot

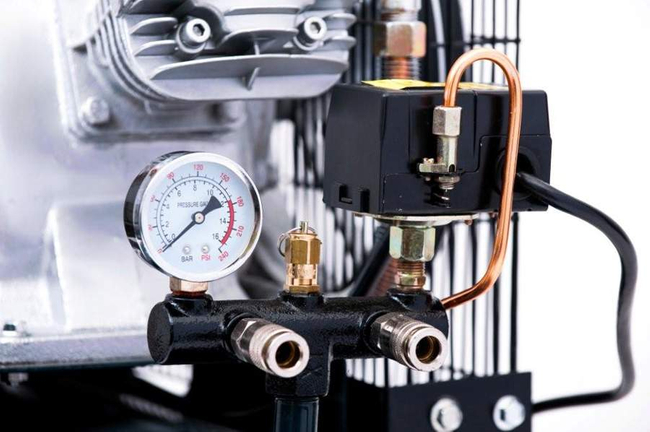

The design features adjustable valves with pressure gauges indicating pressure, a convenient on/off switch that allows the unit to be turned on/off and continuous operation (the compressor automatically shuts off when maximum pressure is reached). The compressor has a safety valve, a sight glass to help check the oil level, and a special valve that is used to remove the accumulated water inside the tank which protects against corrosion. Additional protection against rust is provided by a cylinder made of double-sided galvanized sheet metal.

This compressor is equipped with an oil-lubricated pump, suitable for long-term operation. Complete with pressure gauge indicating tank pressure as well as pressure regulator with pressure gauge with start-up facilitation/relief and engine thermal protection. Each compressor purchased from us, is pre-filled with the correct amount of oil.

Reliable integrated drive, two powerful pistons and a long-life motor combine to give you a best-in-class unit.

In our compressors, we use the latest technology of cast iron, compressor pumps.

We use branded equipment, from the most recognized European suppliers min. italian safety valves - AIRTEK

Thanks to its design, the device has a very wide range of applications. It will certainly satisfy every amateur as well as professional who needs compressed air. The performance allows the use of most pneumatic accessories and the short refill time of the pressure allows to maximize the interruption of work.

Each unit is thoroughly inspected before shipment and primed with oil. The compressor is ready for operation. High power for great efficiency and quality workmanship are a great advantage of our devices. Full service and hassle-free post-warranty service is another factor that keeps even the most demanding users satisfied.

Electric motors, meet the latest and strictest technical requirements of the european union and polish standards.

Branded reducer with built-in separator

Why JAGER GARMAN ?

• Maximum Performance. New pumps with reduced internal resistance. And in them new larger crank and piston systems. All for even greater efficiency.
• Maximum Power. Latest energo saving solutions. New energy-efficient motors that use even less electricity. New 3 kW Motor perfectly replaces old 4 kW units. You don't have to fear anymore if your electrical system can withstand it.
• Maximum Your Security. Guaranteed genuine, branded Italian safety valves brands AIR TEK Italy.
• New electric motor. Class A unit. More than 30% less energy consumption compared to its predecessor.
• Maximum Durability. Even lower turnover! New low-speed pump with two cylinders in a row. It now needs even lower RPMs to continue to provide the highest performance and greatest possible durability.
• High-quality accessories. Additional ubiquitous heat sinks, perfectly distribute the accumulated heat from the most sensitive parts of the pump and engine.
• Additional heat sinks have wires and new technology of cast iron pumps.
• Latest thermal and electrical motor protection.
• New generation, energy-efficient motor ( Ver. 2.0 ) with high power and high efficiency - 3 kW. Replaces the old solution. The current highly successful and praised motors from previous models are replaced with a new, energy-efficient A-rated unit.
• No longer do you have to wonder if it will knock out the fuses in your electrical switchboard.
• Very low air temperature of the discharge cylinder.
• New tanks and new corrosion protection inside the tank.
• Latest generation environmentally friendly varnishes.
• You're definitely getting the best in the latest release.
• The technical data of our compressors have given real, certified and measured operating parameters.
• Compressor for professional as well as home use.

Each purchased compressor comes with complete documentation, required by law, min. by the Office of Technical Inspection ( UDT )

The set of documents required for the registration of a compressor, by the UDT, consists of six (6) different documents, two attachments, Without these documents, the UDT refuses to register the compressor and in addition, at a later time, during an inspection or accident, you risk exclusion from work, with full liability to the State Labour Inspectorate as well as the Office of Technical Inspection.
Exposing yourself and an employee to work with a dangerous tool: compressor, compressor risks both financial and criminal liability, up to two years for the employer.
When buying a compressor, compressor make sure that the offered compressor has all six required documents. This is very important!!! Don't buy a compressor without proper documentation. It's dangerous.

When you buy a compressor, compressor offered by JAGER GERMAN, you can be sure that you are investing in the safety of yourself and your employees.

Compressors offered by the company JAGER GERMAN, undergo several times a year, additional examinations hydrodynamic, strength, tightness, organoleptic. The tests take place in our country - Poland. They are carried out by independent, authorized, certified testing units having authorizations and certificates, granted min. through the Institute of Welding in Poland within the Polish Centre for Accreditation, the Office of Technical Inspection, the Office of Transport Technical Inspection. Relevant licenses granted by the Ministry of Infrastructure,
